SKU 167 For technical questions, please call 1-800-444-3353 PAGE 6
REV 09/05
5. Insert the Piston Assembly (30 thru 33) back into the Air Cylinder (29).
(See Figure C.)
6. Use the Spanner (36) to firmly screw the Cylinder Cap (33) back onto the Air Cylinder
(29). (See Figure C.)

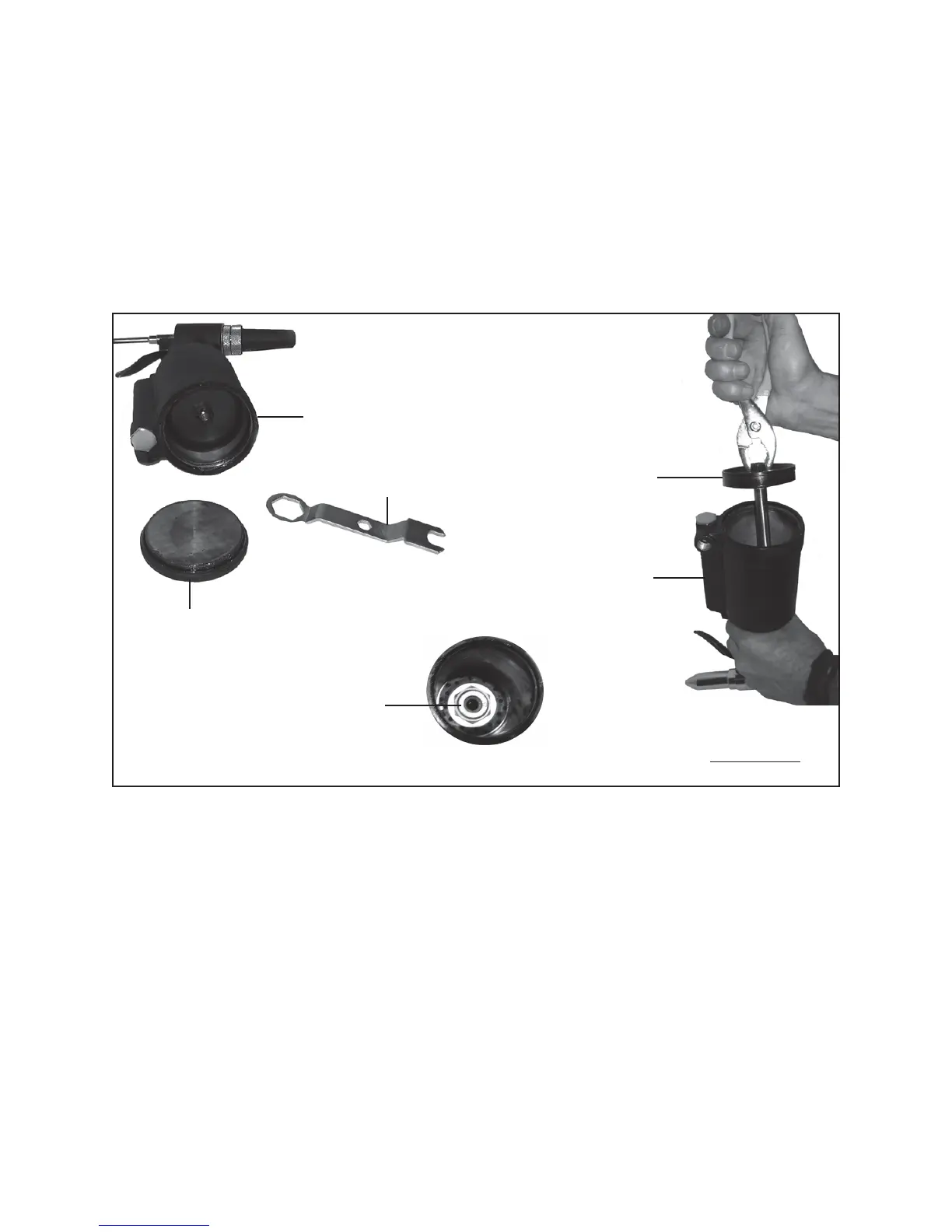

SPANNER
(36)
AIR CYLINDER
(29)
AIR CYLINDER
(29)
AIR PISTON LOCK NUT
(30-3)
PISTON ASSY.
(30 THRU 33)
CYLINDER CAP
(33)
FIGURE C
