SKU 04041 For Technical Questions, Please Call 1-800-444-3353 Page 8

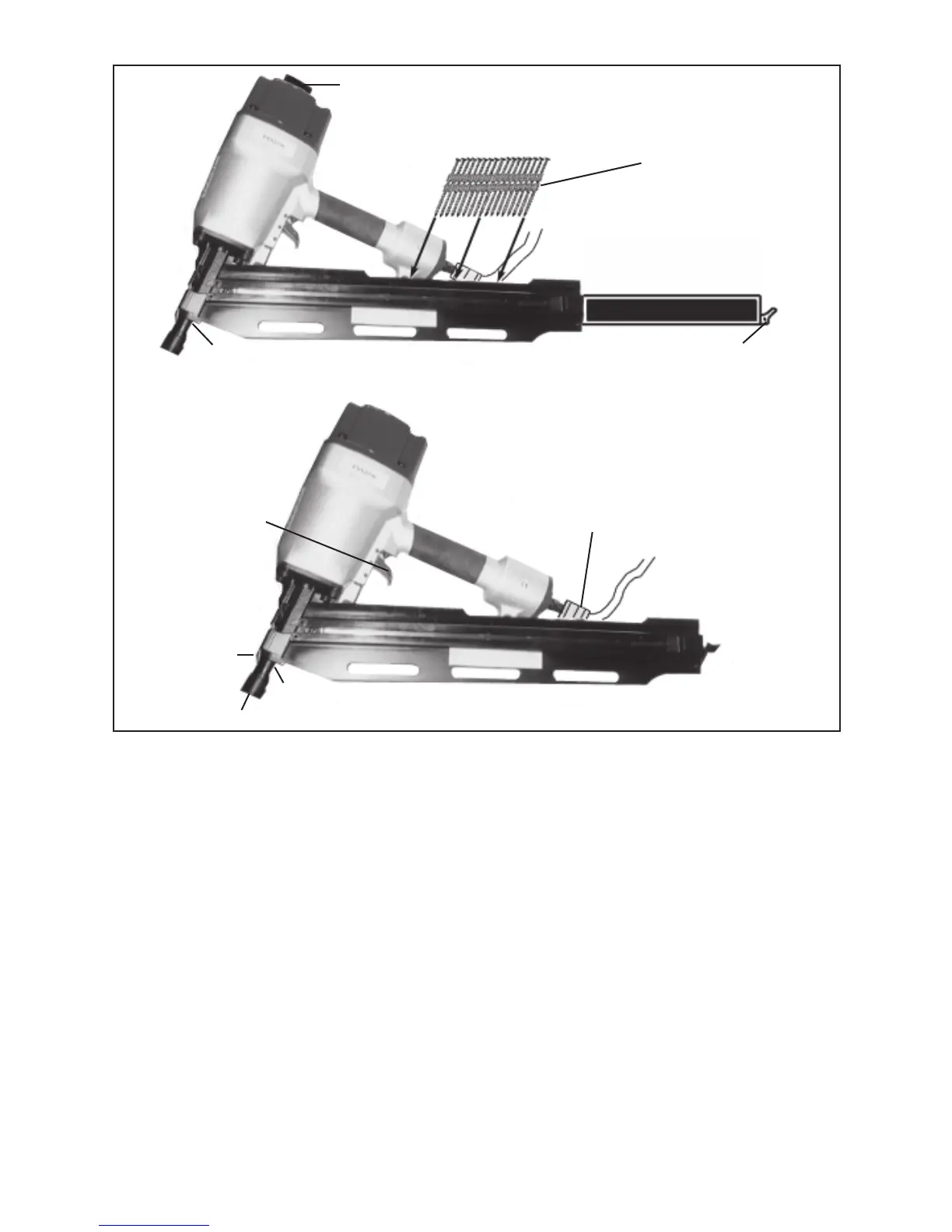

EXHAUST COVER (#4)
NAILS
(10 GAUGE)
(2-3/16” TO 3-1/2” LONG)
FEEDER SHOE
(#52)
NOSE (#29)
BRACKET A
(#35)
SAFETY (38)
TRIGGER
(#44)
FIGURE B
NOSE (#29)
REV 01/04
To Adjust The Depth To Which A Nail Is Driven
1. The depth to which a nail is driven is controlled by the Safety (part #38). (See
Figures B and C).
2. To adjust the depth of drive, loosen the Screw (part #37). Slide Safety (part #38)
up or down to the desired position. Then, re-tighten the Screw. Note: Sliding
Safety (38) upward increases the depth of drive. Sliding Safety downward de-
creases the depth of drive. (See Figure C).
3. Test fire a nail, and check its depth of drive. Repeat Step #2 as necessary to
achieve the desired depth of drive. (See Figure C).
QUICK COUPLER &
AIR SUPPLY HOSE
(NOT INCLUDED)
