NOTE:
Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.

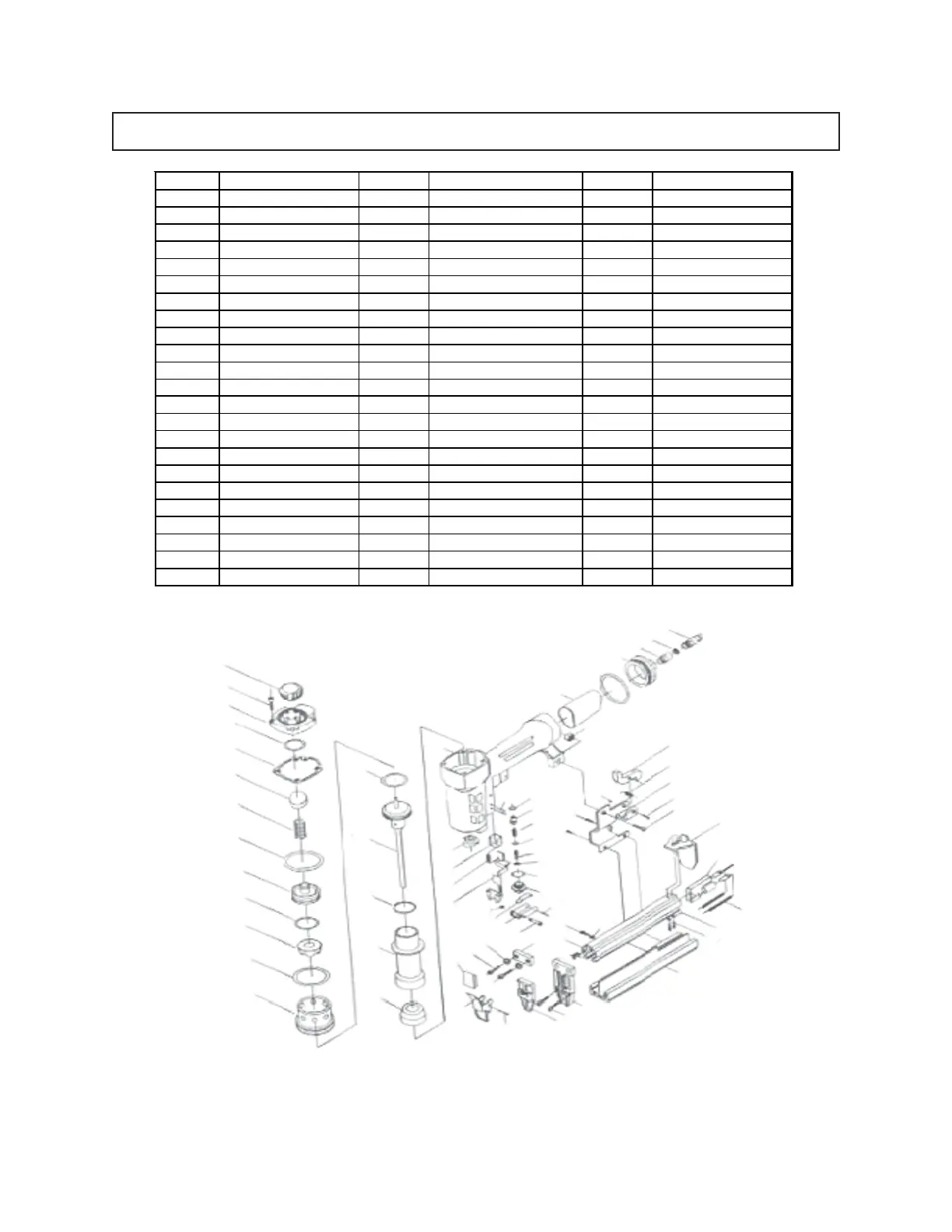

PARTS LIST AND ASSEMBLY DIAGRAM
Part # Description Part # Description Part # Description
1 Exhaust Cover 24 Spring Pin 47 Hex Bolt
2 Hex Bolt 25 Seal 48 Drive Guide
3 Cylinder Cap Unit 26 Trigger Valve Head 49 Magazine (B)
4 O-Ring 27 Spring 50 Washer
5 Seal 28 O-Ring 51 Spring
6 Seal 29 Trigger Valve Stem 52 Connector
7 Spring 30 O-Ring 53 Pusher Supporter
8 O-Ring 31 Trigger Valve Guide 54 Click Lever
9 Head Valve Piston 32 Spring Pin 55 Pin
10 O-Ring 33 Washer 56 Tail Hanger
11 Stop Washer 34 Spring 57 Spring
12 O-Ring 35 Trigger 58 Lock
13 Collar 36 Pin 59 Hex Bolt
14 O-Ring 37 Washer 60 Nut
15 Main Piston Unit 38 Soft Cover 61 Rubber Cushion
16 O-Ring 39 Spacer 62 O-Ring
17 Cylinder 40 Hex Bolt 63 Rear Cap
18 Bumper 41 Magazine (A) 64 Adapter
19 Body 42 Stopper 65 Screen
20 Washer 43 Washer 66 Air Plug
21 Safety Tip Guide 44 Cover 67 Hex Wrench Set
22 Spring 45 Spring Pin 68 Tool Oil
23 Safety Tip 46 Drive Cover 69 3/8”, ½”, 1” Staples
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
2
38
39
40
41
42
43
44
45
46
47
48
49
50
40
51
52
53
54
55
2
56
57
58
59
33
60
61
62
63
64
65
66
67: HEX WRENCH SET NOT SHOWN.
68: TOOL OIL NOT SHOWN.
69: 3/8”, 1/2”, 1” STAPLES (1,000 EACH) NOT SHOWN.
