EF;6GH IJ6KFGLIM NFLMG6MFMO6E6GPJ
;"3'(*%S-%%J&($,+7*%F"(%E'//7[%E*$'/
G
A
E
E
H
F
B

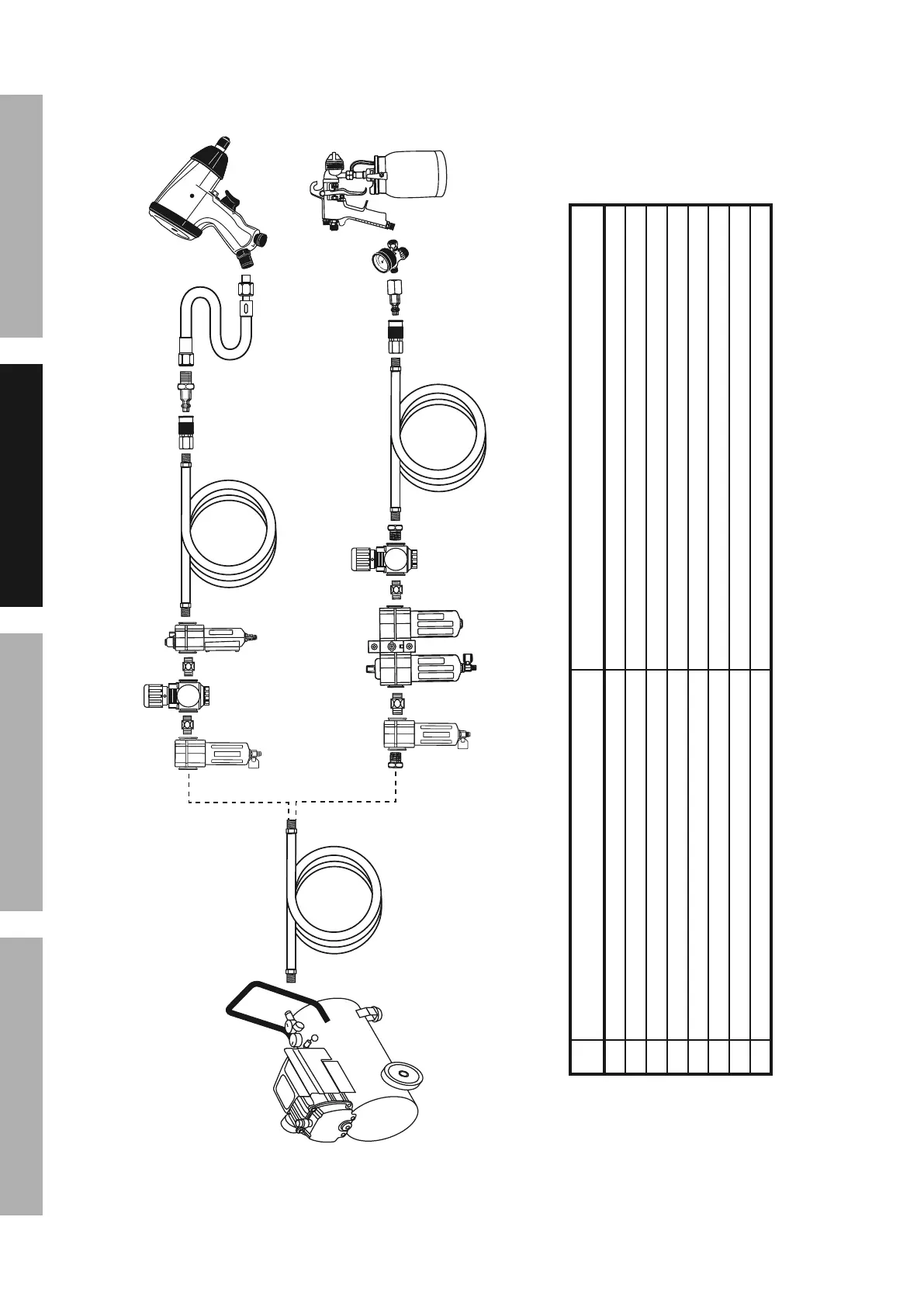

Non-lubricated Tools Lubricated Tools
A
B
C
C
D
A
U*#4("/$"&8 ;'84$"&8
A Air Hose Connects air to tool
B Filter Prevents dirt and condensation from damaging tool or workpiece
C Regulator Adjusts air pressure to tool D Lubricator (optional) For air tool lubrication
E Coupler and Plug Provides quick connection and release
F Leader Hose (optional) Increases coupler life
G Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
H Air Adjusting Valve (optional) For fine tuning airflow at tool
