Page 13For technical questions, please call 1-800-444-3353.Item 68057
SAFETYOPERATIONMAINTENANCE SETUP
Loading the Tool
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION, BEFORE LOADING:
•
Wear ANSI-approved safety goggles with side shields.
Other people in the work area must also wear ANSI-approved impact safety goggles with side shields.
•Release the trigger.
•Detach the air supply.
•Attempt to fire the Tool into a piece of scrap wood to ensure that it
is disconnected and is incapable of firing any fasteners.

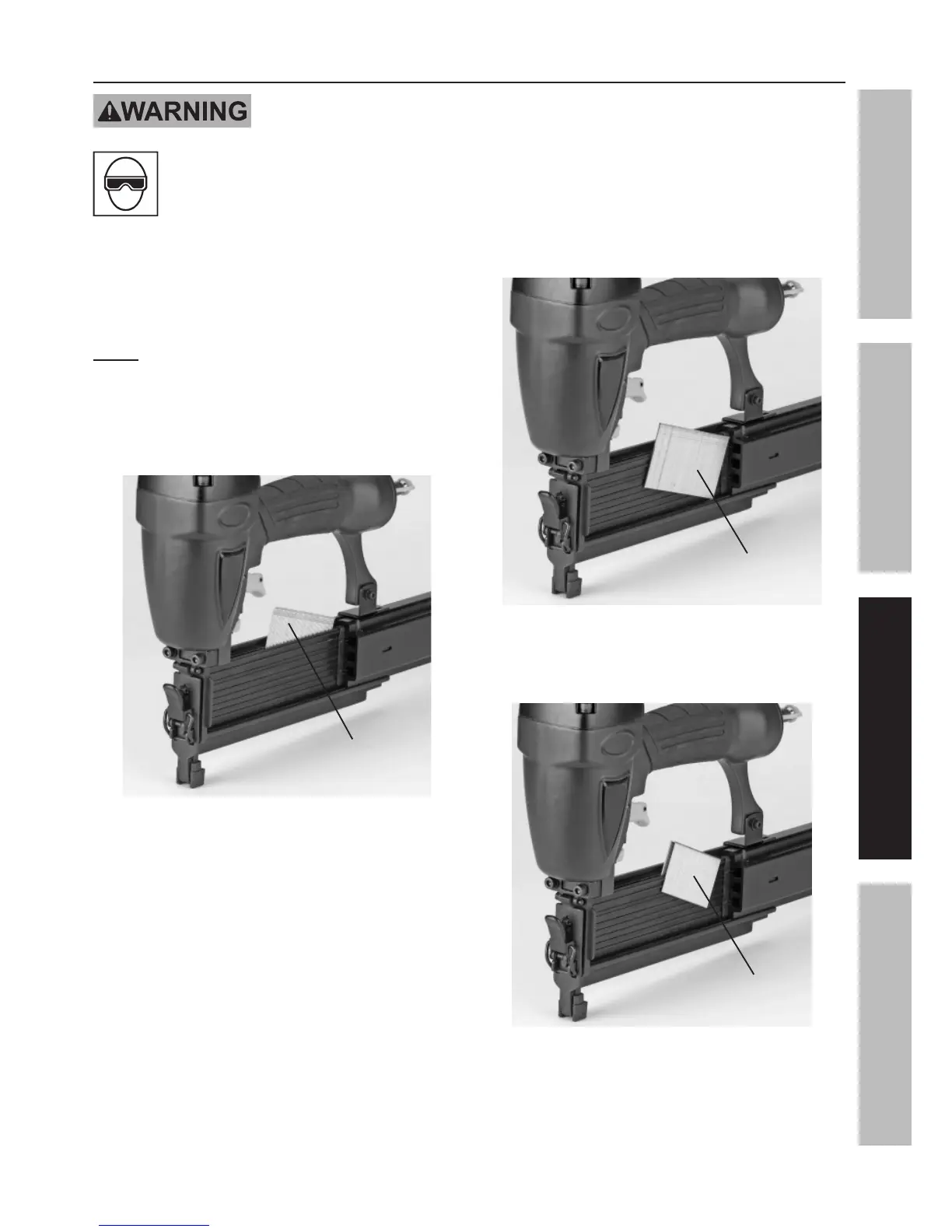

1. Depress the Latch (73) and pull back on
the Moveable Magazine (68), sliding it
down to bottom of Fixed Magazine.
NOTE: Since this Nailer can drive finishing
nails, brad nails and staples, there are different
ways to insert the various fasteners.
2. To load finishing nails, insert the nails
from the top area of Fixed Magazine and
into the center slot. See below.
Finishing Nails
3. To load brad nails, insert the nails into
the channel along the left-side of the
Fixed Magazine. See below.
Brad Nails
4. To load staples, insert staples from the top
area of the Fixed Magazine with one arm of the
staples in the center slot and the other arm along
the Fixed Magazine’s left side. See below.
Staples
5. After the nails or staples are loaded, slide
the Moveable Magazine back into Fixed
Magazine until the Latch snaps back into
place, locking the fasteners into place.
To Next Page
Loading...
