Central Pneumatic 68293 - Page 11

Page 11For technical questions, please call 1-888-866-5797.Item 68293
Part Description Qty
1 Container Tube 1
2 Seal Gasket 1
3 Head 1
4 Valve 1
5 Vacuum Valve 1
6 Steel Ball 1
7 Tower Spring 1
8 O-ring 1
9 Connector 1
10 Grease Hose 1
11 Screw 4
12 Tower Spring 1
12-1 Tower Spring 1
13 O-ring 1
14 Piston Seat 1
15 Housing 1
16 Nylon Nut 1
17 Lever 1
18 Piston 4
19 Connector 1
Part Description Qty
20 Screw 3
21 Cylinder 1
22 Spring 1
23 O-ring 2
25 Nut 3
26 Trigger 1
27 O-ring 1
28 Trigger Valve 1
29 O-ring 1
30 O-ring 1
31 O-ring 1
32 Shield 1
33 Retainer Ring 1
34 Tower Spring 1
35 O-ring 1
36 Air Inlet 1
37 Inlet Plug 1
38 Plunger Handle 1
39 Plunger Release Tab 1

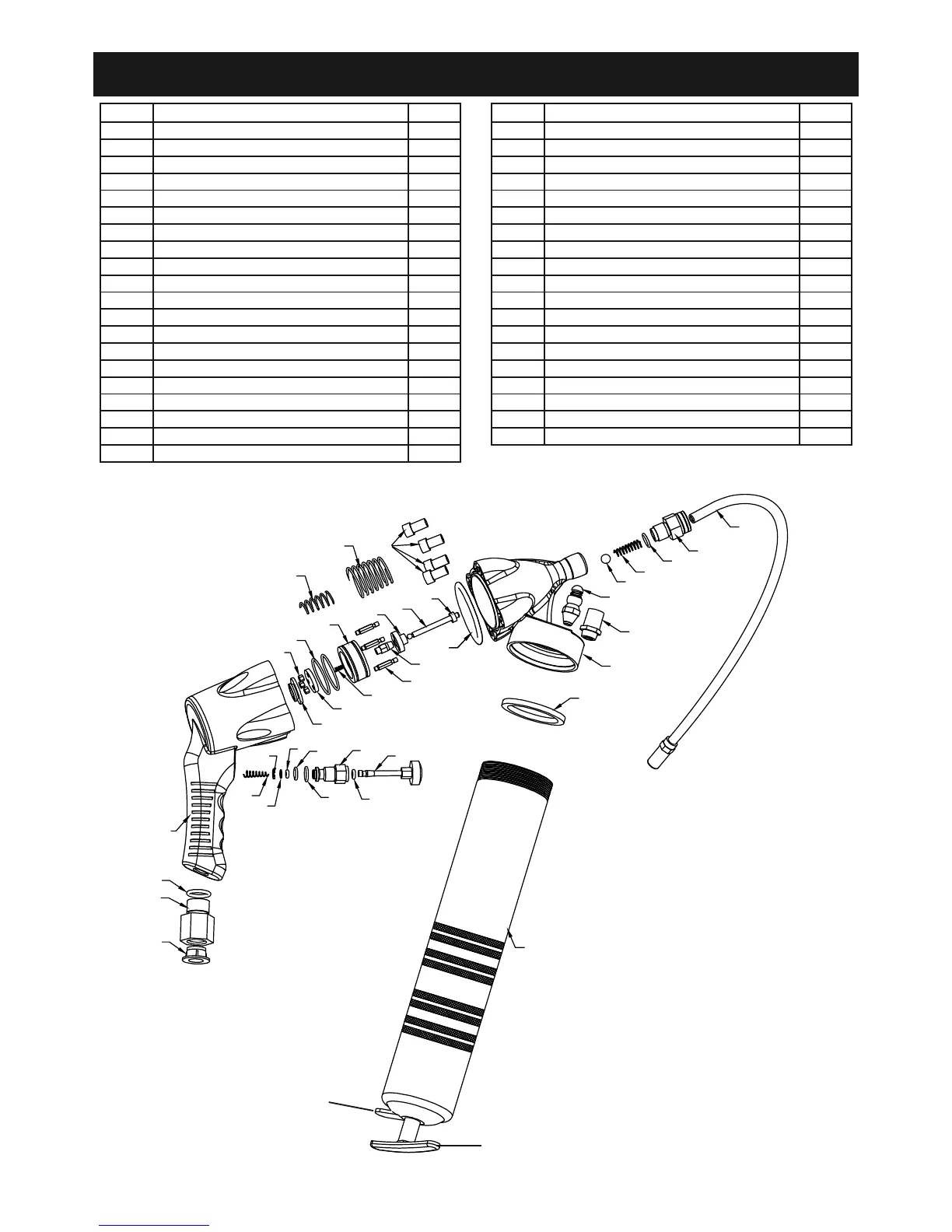

Parts List and Assembly Diagram
38
39
4
5
6
7
9
15
11
14
28
26
30
27
31
32
33
29
35
36
37
3
10
13
20
17
21
24
22
19
16
25
23
12-1
12
8
2
34
18
1
