Page 7For technical questions, please call 1-800-444-3353.Impact Wrenches

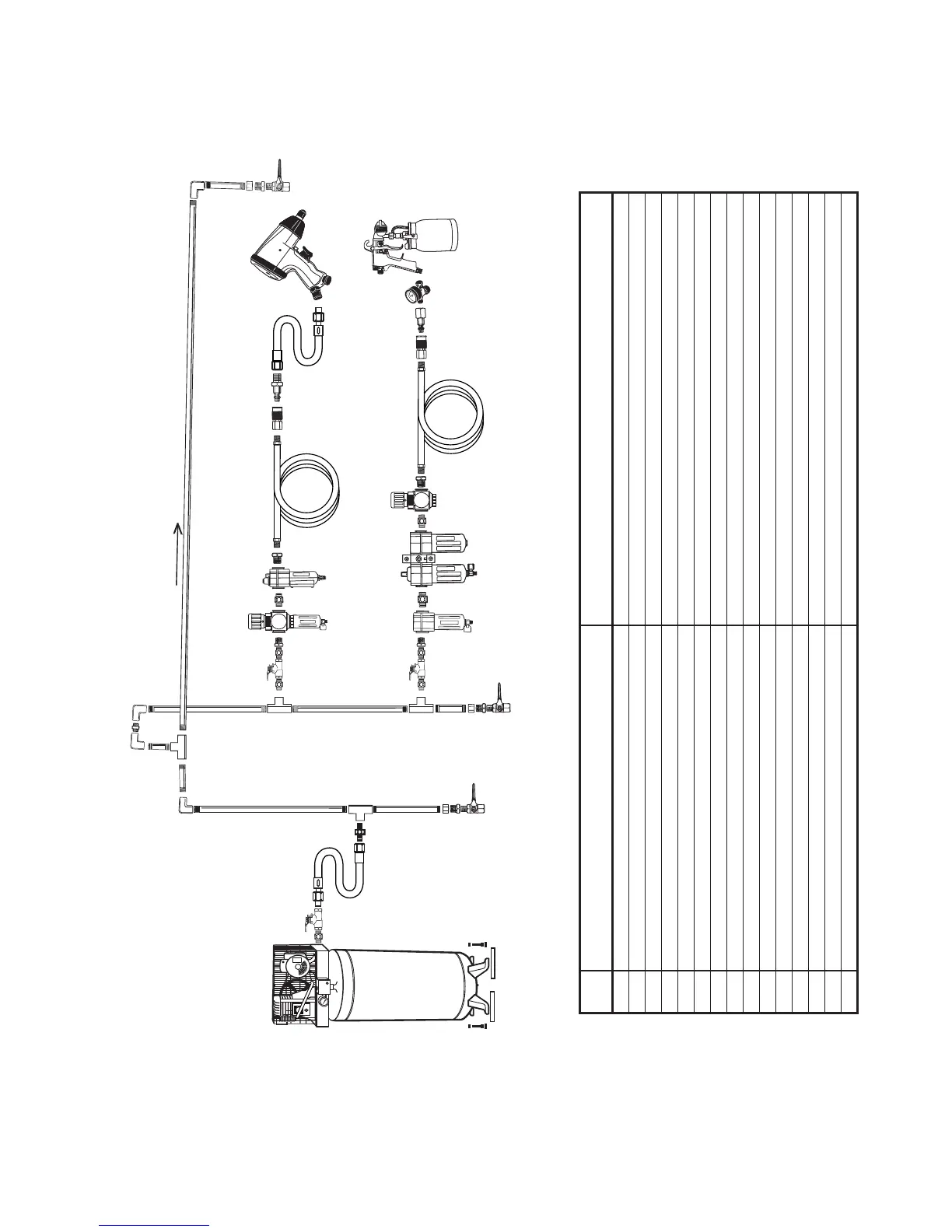

Figure B: Stationary Air Supply Setup
I
M
M N
O
C
C
Non-lubricated
Tools
Lubricated
Tools
L
H
H
J
J
K
L
F
G
E
Slope
F
F
B B
A A
C
D
Description Function
A Vibration Pads For noise and vibration reduction
B Anchor Bolts Secures air compressor in place
C Ball Valve Isolates sections of system for maintenance
D Isolation Hose For vibration reduction
E Main Air Line - 3/4″ minimum recommended Distributes air to branch lines
F Ball Valve To drain moisture from system
G Branch Air Line -1/2″ minimum recommended Brings air to point of use
H Filter Prevents dirt and condensation from damaging tool or work piece
I Air Cleaner / Dryer (optional) Prevents water vapor from damaging work piece
J Regulator Adjusts air pressure to tool
K Lubricator For air tool lubrication
L Air Hose Connects air to tool
M Coupler and Plug Connects hose to tool
N Air Adjusting Valve For ne tuning airow at tool
O Lead Hose
Increases coupler life
