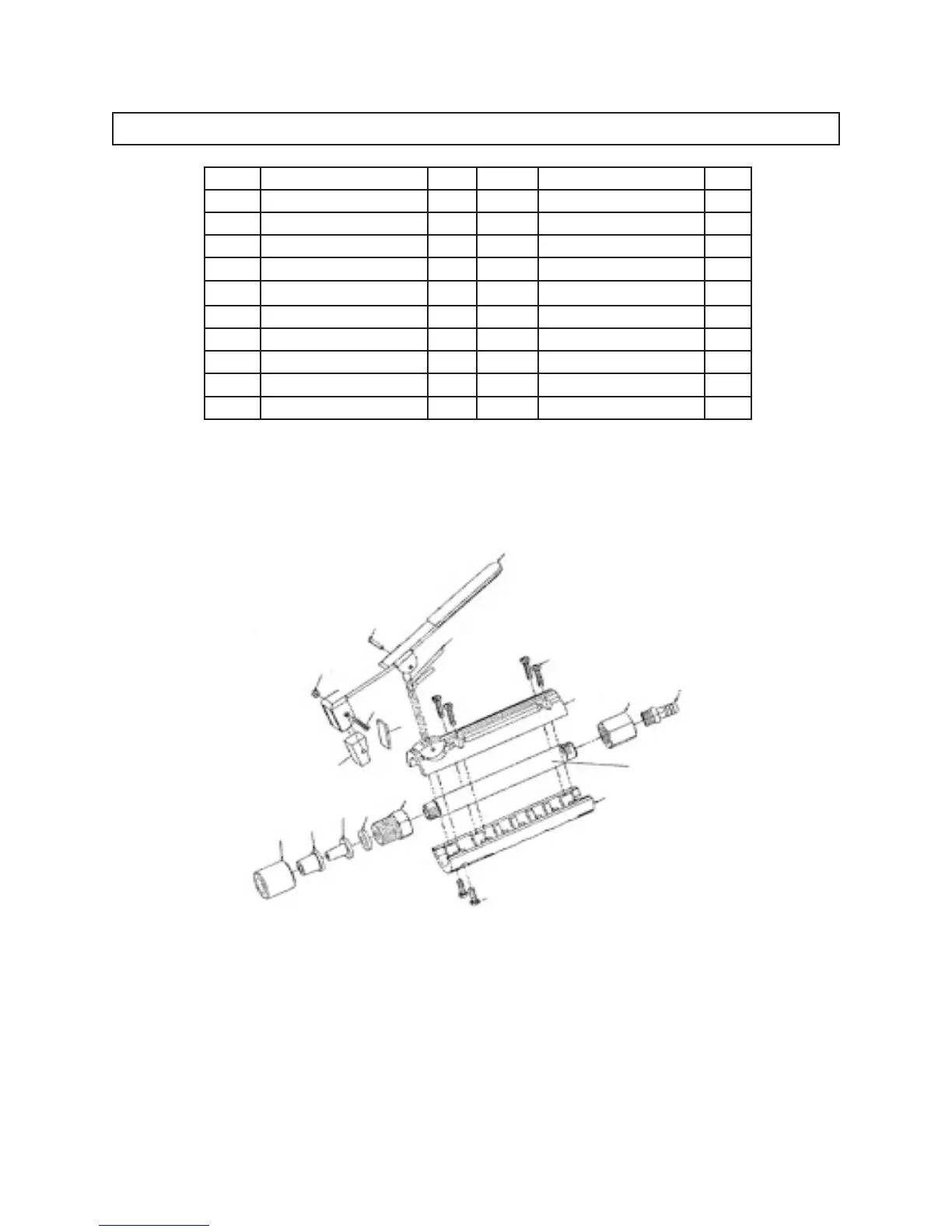

PARTS LIST & ASSEMBLY DIAGRAM - BLAST GUN
42C
43C
48C
46C
47C
45C
39C
38C
37C
36C
35C
40C
32C
33C
49C
34C
31C
41C
44C
NOTE:
Some parts are listed and shown for illustration
purposes only, and are not available individually as
replacement parts.
Part # Description QTY Part # Description QTY
31C Upper Body 1 41C Screw (ST4.2x12) 2
32C Lower Body 1 42C Control Lever 1
33C Metal Pipe 1 43C Spring Pin 1
34C Intake Connector 1 44C Spring 1
35C Adapter 1 45C Rubber Pad 1
36C Gasket 1 46C Screw (M3x25) 1
37C Ceramic Nozzle 4 47C Hard Alloy Pad 1
38C Rubber Adapter 4 48C Nut (M3) 1
39C Nozzle Cap Nut 1 49C Hose Adapter 1
40C Screw (ST4.2x16) 4
