CLEAHMI21 External HMI Product Data

® U.S. Registered Trademark

GENERAL

The CLEAHMI21 External HMI is a cost effective, versatile

mountable HMI for those EAGLE and EAGLEHAWK NX

controllers not equipped with a built-in HMI.

The CLEAHMI21 represents a network-independent,

comprehensive, and cost-effective operating option.

The CLEAHMI21 can be connected and used with the

following EAGLE / EAGLEHAWK NX controllers:

 CLEA2000B31;

 CLEA2014B31;

 CLEA2014B32;

 CLEA2026B31;

 CLAXEHxxND100A;

 CLAXEHSERIESxxND.

FEATURES

 Local language operation: The CLEAHMI21 allows the

EAGLE controller to be operated in the following

languages: English, German, French, Italian, Spanish,

Greek, Norwegian, Finnish, Danish, Russian, Ukrainian,

and Czech. The default language can be pre-selected, and

also changed online.

In combination with the EAGLEHAWK NX, the languages

displayed on the CLEAHMI21 depend upon the languages

set up (using COACH NX) in the station which the

EAGLEHAWK NX is running.

 Reduced cost for service, operation and maintenance

Maintenance or upgrade of Operator Interface Software is

superfluous because it resides in the EAGLE /

EAGLEHAWK NX controller, itself (single-source principle).

 Application- or user-oriented operation: A configurable

start-screen allows for viewing custom fast access lists,

which can contain a random combination of data-point and

parameters. In combination with the EAGLEHAWK NX, the

start screen and the contents of its icons can be

customized (using COACH AX).

 Intuitive push & turn wheel operation: Navigation,

selecting, and changing values is done using the push &

turn wheel, which conforms to industry standards.

 Backlight with automatic time-out: The display backlight

will automatically turn ON upon pressing any key or

operating the push & turn wheel. It will automatically turn

OFF if none of the keys or the button are used for two

minutes. In combination with the EAGLEHAWK NX, the

Auto Logout Delay is adjustable.

 Full display of long text information: Automatic left &

right scrolling enables lengthy texts to be viewed in their

entirety.

 Versatile mounting options: The following mounting

options are available:

- Screw mounting into panel door cut-outs;

- Screw mounting onto panel doors or cabinets;

- Magnetic mounting onto metal surfaces;

- Screw mounting onto walls.

 Standard Ethernet connection cable: A standard

Ethernet connection cable (max. length: 5 m) is used to

establish a connection between the RJ45 socket of the

CLEAHMI21 and the HMI port on the front of the EAGLE /

EAGLEHAWK NX controller. (NOTE: This is not a physical

Ethernet interface.)

 Password protected access: Changing of values and

other data is restricted to registered users, by a multi-digit

password. In combination with the EAGLEHAWK NX, the

user access is fully embedded in the user management of

Niagara (COACH NX).

 No extra power supply needed: Rather, the CLEAHMI21

derives needed energy from the controller via the standard

Ethernet connection cable.

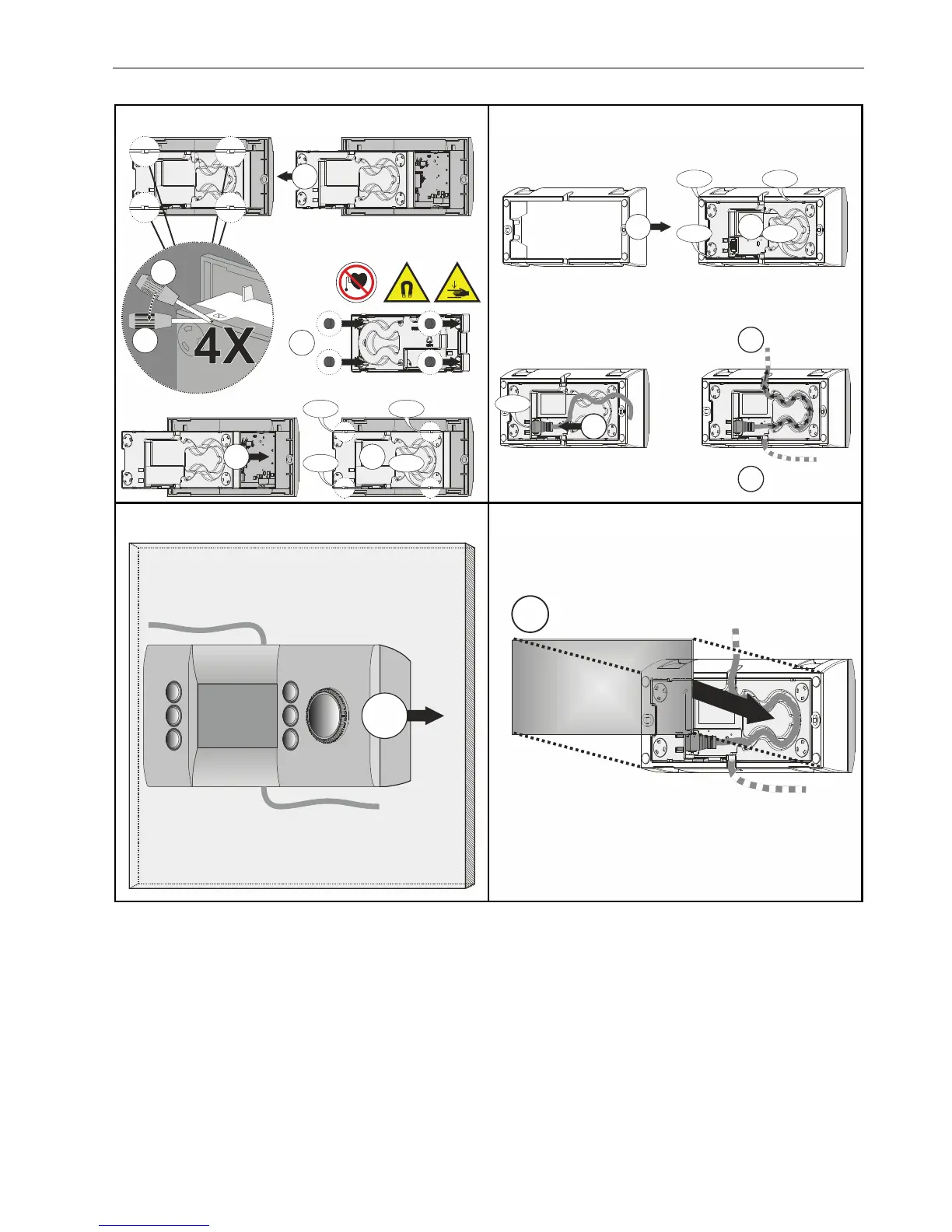

CentraLine CLEAHMI21 - Wall-Mounting (Screw Option); Handheld Option; Screw-Mounting into Panel Door
