CLEAHMI21 EXTERNAL HMI – PRODUCT DATA
Manufactured for and on behalf of the Environmental and Combustion Controls Division of Honeywell Technologies Sàrl, Rolle, Z.A. La Pièce 16, Switzerland by its Authorized Representative:
CentraLine
Honeywell GmbH
Böblinger Strasse 17
71101 Schönaich, Germany
Phone +49 (0) 7031 637 845
Fax +49 (0) 7031 637 740
info@centraline.com
www.centraline.com
Subject to change without notice
EN0Z-0988GE51 R1018
SPECIFICATIONS
Table 1. Specifications
Ambient temperature
0 … 50 °C
Storage temperature
-20 … +70 °C
Humidity
5 … 95% r.h. non-condensing
Dimensions
See Fig. 14.
Degree of protection
IP30 (panel- or wall-mounted)
Fire class
V0
Shock protection
Class II
Pollution degree
2
Installation
Class 3
Software class
Class A
Ball-pressure test
temperature
Housing parts >75°C
Max. cable length
5 meters
Display
Dot matrix display, black & white,
160 x 80 dots, 5 lines with 20
characters
Electrical Data
Table 2. Electrical data
Power supply
From EAGLE / EAGLEHAWK NX
controller attached via standard
Ethernet cable to the RJ45 socket
of the CLEAHMI21
Increased power con-
sumption of EAGLE /
EAGLEHAWK NX
dc: max. 0.2 W;
ac: max. 0.2 VA
Increased heat
dissipation
max. 0.2 W at dc power supply
max. 0.2 W at ac power supply
WARNING
Risk of electric shock or equipment damage!
► It is prohibited to connect the RJ45 socket of the
CLEAHMI21 to a so-called PoE-enabled device ("Power
over Ethernet").
Mechanical Data
Housing Dimensions (L x B x T): 178 x 78 x 32 mm
Housing Material: ABS blend; flame retardant V0
Weight: 160 g (without sub-base, packaging)
Protection Class: IP 30 (panel- or wall-mounted)
Standards, Approvals, etc.
Device meets EN 60730-1, EN 60730-2-9
C UL® US-listed (file E340062)
ORDER NUMBERS
CLEAHMI21: External HMI and two M4x6 (DIN 7985A)
screws
CLEAHMI-BASE: Sub-base for wall-mounting and hand-held
use. Includes sub-base itself, two screws
(4x35 mm) and two dowels (6x30) for wall-
mounting, metal cover plate for convenient
handheld use, and four magnets for
mounting to metal surfaces.
DIMENSIONS
178
78
65.5
35.5
35.5
32
35
68

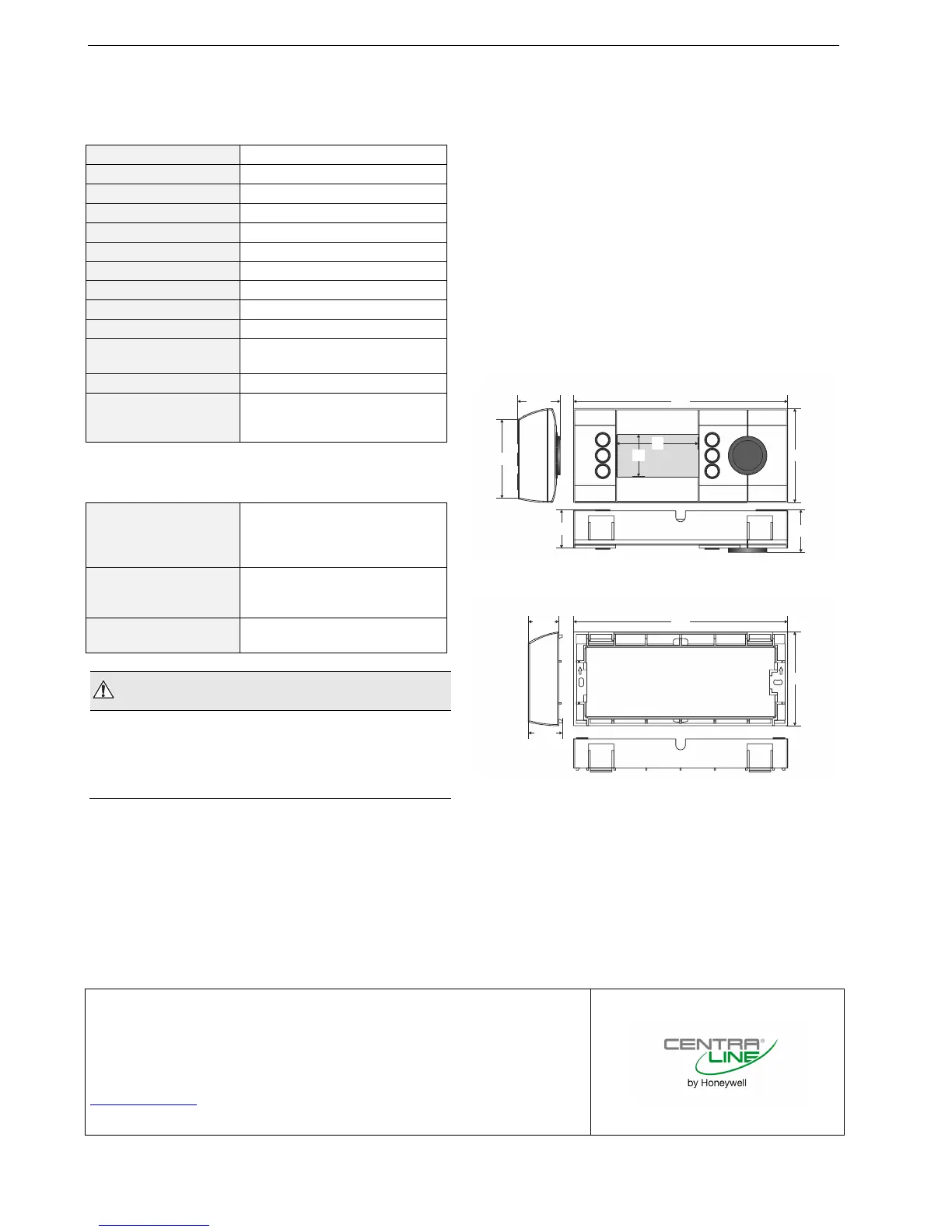

Fig. 14. Dimensions of CLEAHMI21 (in mm)
78
178
28.2
25.2
UPUP
Fig. 15. Dimensions of sub-base CLEAHMI-BASE (in mm)
