EAGLEHAWK NX CONTROLLER – PRODUCT DATA
EN0Z-1039GE51 R0319
2
OPERATOR INTERFACE
EAGLEHAWK NX is operated via a standard browser. By
default, an integrated web-server provides all freely pro-
grammable operation pages for full browser-based operation.
Operating devices can be laptops, desktops PCs, or touch
screen PCs for direct flush mounting into electrical panel
doors (IP65).

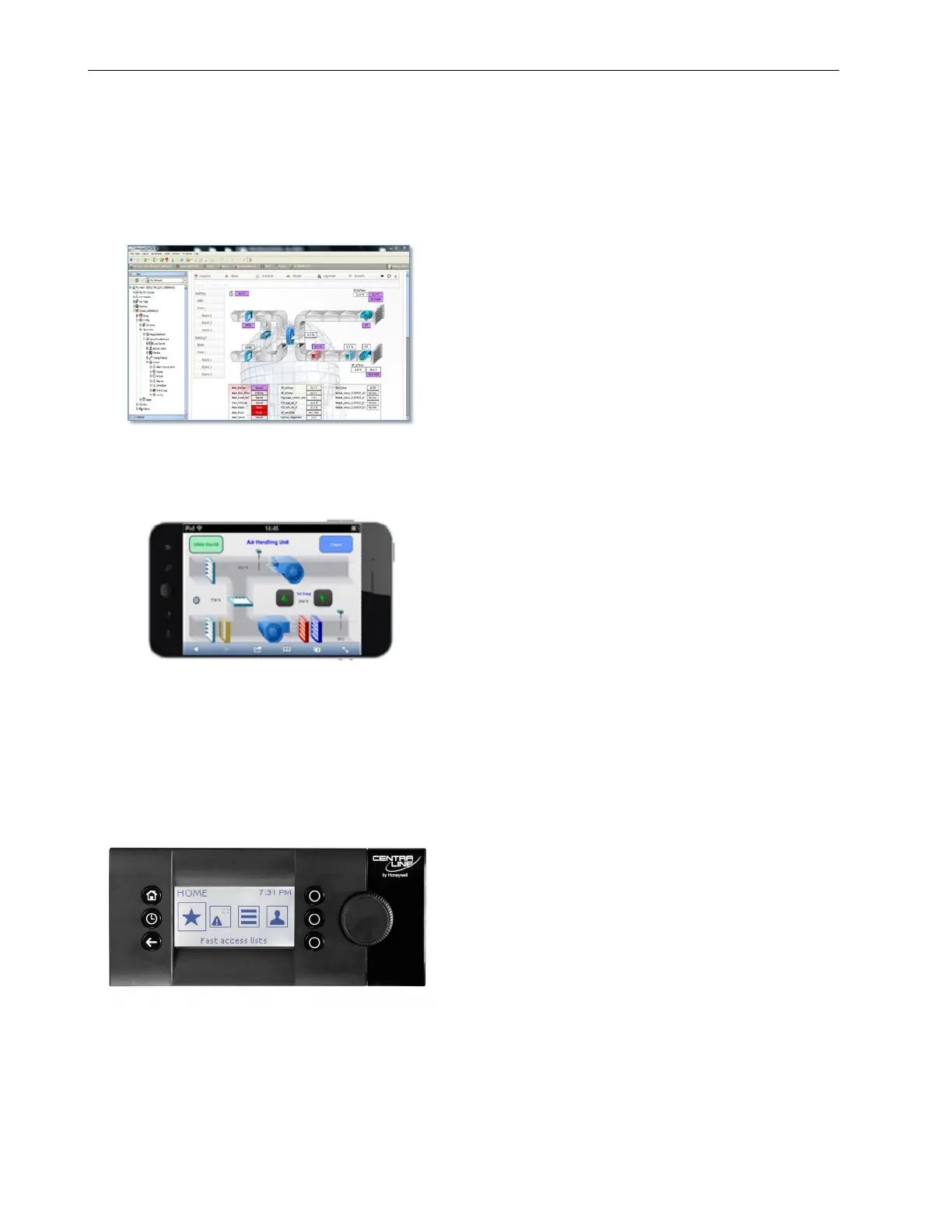

Fig. 1. EAGLEHAWK NX PC homepage (example)
For mobile devices, there is a separate corresponding
operator interface.
Fig. 2. EAGLEHAWK NX mobile device homepage
(example)
For network-independent operation, the EAGLEHAWK NX
can be operated either via its onboard HMI (option 1) or via
an external HMI (option 2) connected to the dedicated HMI
port of those models not equipped with an onboard HMI.
The operating menu can be customized to suit the building
operator's needs.
Fig. 3. CLEAHMI21 External HMI
Programming
EAGLEHAWK NX is freely programmable using the graphic
COACH NX Engineering Tool and is thus ideal for all Inte-
gration, Building Control, and Building Management tasks.
Password Protection
EAGLEHAWK NX allows the definition of a large number of
user levels with defined read and write rights. Several users
with individual passwords can be defined for each user level.
And different views can be assigned to the individual users.
COMMUNICATION PROTOCOLS
BACnet/IP – ISO 16484-5 and EN 13321-1
Communication with other EAGLEHAWK NX and EAGLE
controllers, 3
rd
-party BACnet devices and ARENA NX
Super-
visors is possible.
EAGLEHAWK NX conforms to the BACnet Building Controller
(B-BC) profile. For details, see Protocol Implementation
Conformance Statement (PICS) (Product Literature No.:
EN0Z-1042GE51).
BACnet MS/TP – ISO 16484-5 and EN 13321-1
Communication with other BACnet controllers is based on the
international BACnet Protocol. Optionally, one or both of the
onboard RS485 interfaces can be used for communication via
BACnet MS/TP.
LonTalk® - ISO 14908
Optionally, communication with physical I/O modules, with
room and zone controllers, and with CentraLine PANTHER,
TIGER, and LION controllers can utilize LonTalk.
L
ONWORKS communication requires the IF-LON2 LONWORKS
interface.
Modbus
Optionally, the two onboard RS485 interfaces can be used
(even simultaneously) for communication via Modbus RTU.
Modbus TCP communication is supported via the two on-
board Ethernet RJ45 interfaces. See also EAGLEHAWK NX –
Installation & Commissioning Instructions (Product Literature
No.: EN1Z-1039GE51) for details.
M-Bus – EN 1434-3
Optionally, M-Bus communication is possible via the onboard
RS232 interface. See also EAGLEHAWK NX – Installation &
Commissioning Instructions (Product Literature No.: EN1Z-
1039GE51) for details.
Panel Bus
Optionally, one or both of the onboard RS485 interfaces can
be used for Panel Bus communication with CentraLine Panel
Bus I/O modules.
Up to 64 Panel Bus I/O modules can be operated via each
RS485 interface, thus permitting 1,000+ Panel Bus / onboard
I/O points (see Table 5 on pg. 10 for information on
upgrades).
