Centroid Acorn Plasma Users Manual Beta CNC12 v4.65 rev6

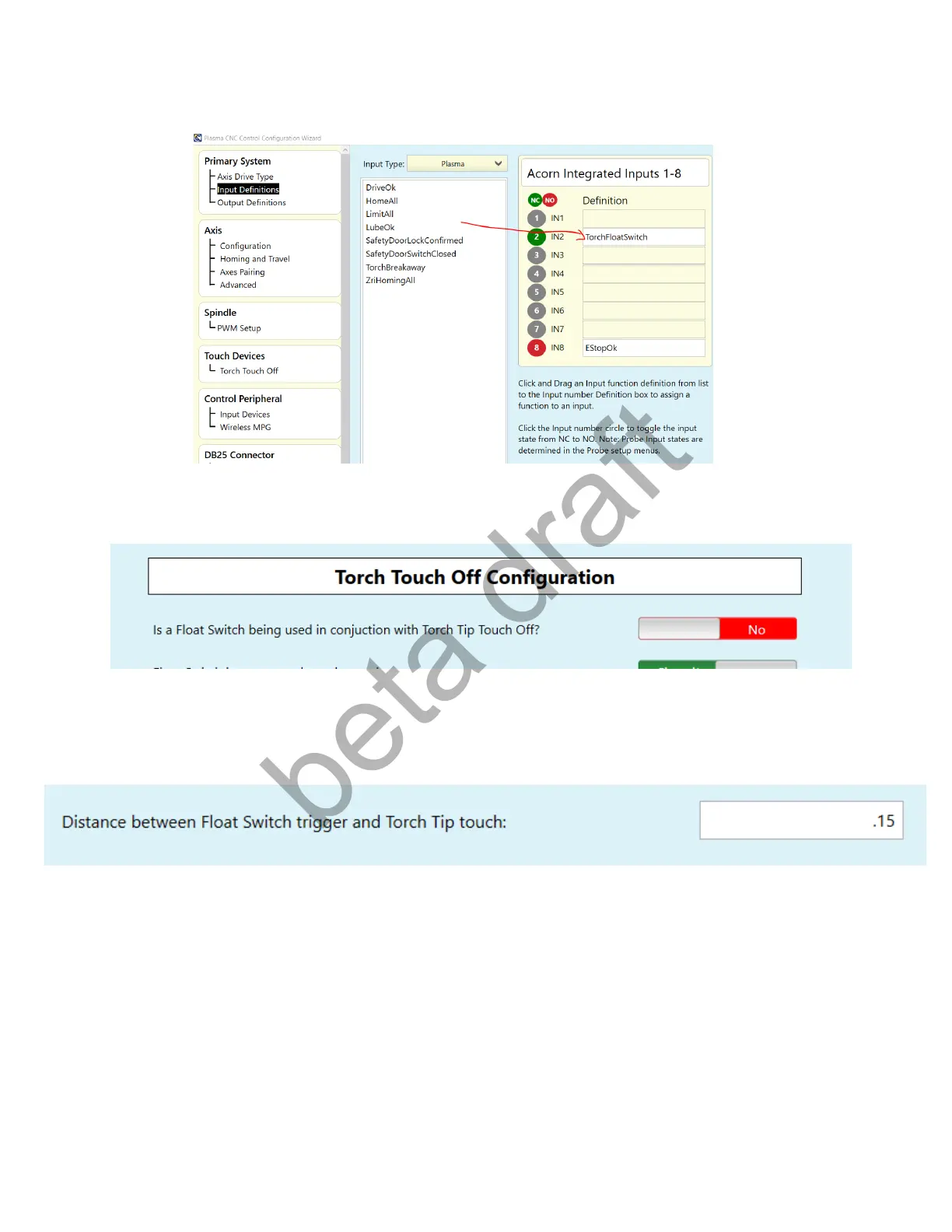

Method b. Set Wizard Torch Float Switch input definition to Input Two.
Then Choose “No” to “Is a Float Switch being used in conjunction with Torch Tip Touch Off?
Set the Distance between Float switch trigger and torch tip touch in inches (or mm)
Page 16 D:\Keith Documents\centroid_acorn_plasma_users_manual_draft27.odt rev27 3-15-22
beta draft
