Centroid Acorn Plasma Users Manual Beta CNC12 v4.65 rev6
Plasma M codes
M code Description Notes
M65 Loads the cut parameters from the selected Material Profile
M61 Performs the Torch Touch off and Pierce cycle mfunc61.mac
M62 Turns off Torch and Raises torch to Safe Height mfunc62.mac
M35 Enables THC, M61 contains this Mcode Typically not used individually
M36 Disables THC, M62 contains this Mcode Typically not used individually
M3 Fires Torch Typically not used individually
M5 Turns off Torch Typically not used individually

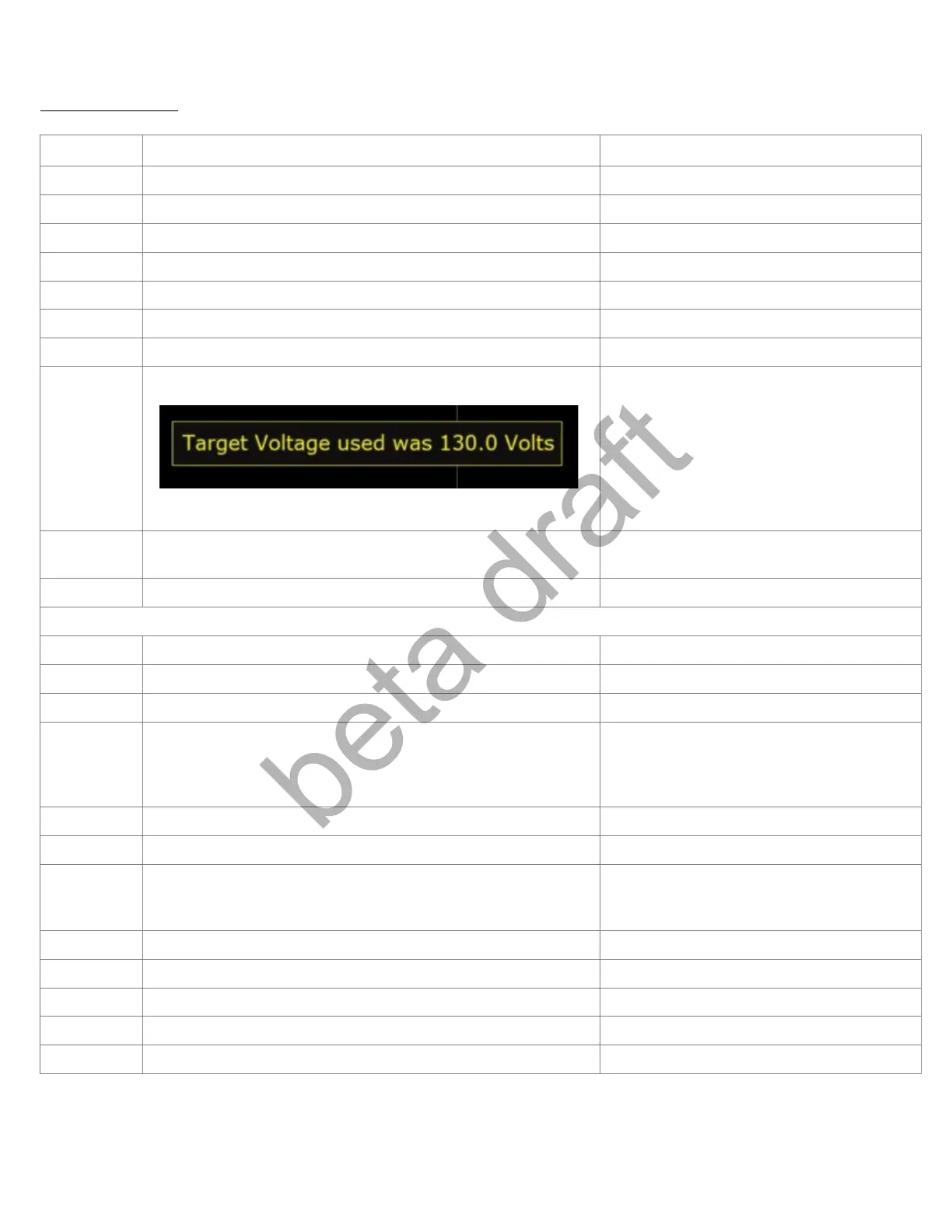

M51 Displays the Auto Sense Target Voltage used. Used to display to the operator the
SmartSense voltage that is being used.
Add this M51 to the G code program after
the first cut using Smart Sense and
message will appear. Or use with MDI to
display last Target Voltage used. Or use
with a custom VCP button to display last
Target Voltage used.
M64 Marking Macro. This macro is used for Marking locations
without cutting thru the metal.
Virtual Control Panel Macros
M45 VCP Button Macro: Set Work Coordinate XY0
M46 VCP Button Macro: Set Work Coordinate X0
M47 VCP Button Macro: Set Work Coordinate Y0
M48 Torch Touch Off VCP Button Macro. Edit m48func.mac to retract to preferred
Height. Default is Safe Height. Variables
for the heights are: <CUT_HEIGHT>,
<SAFE_HEIGHT>, <PIERCE_HEIGHT>
M49 VCP Button Macro: Retract to Safe Height
M50 VCP Button Macro: Set Work Coordinate Z0
M52 VCP Button Macro: Torch Check M52 is used when the Torch Check button
on the VCP is pressed when NOT actively
running a job.
M53 VCP Button Macro: Laser Set XY Position
M55 VCP Button Macro: Goto Work Coordinate XY0
M57 VCP Button Macro: GOTO XY HOME
M58 VCP Button Macro: SET Torch Home Position
M59 VCP Button Macro: Set XYZ HOME
Page 36 D:\Keith Documents\centroid_acorn_plasma_users_manual_draft27.odt rev27 3-15-22
