Century EB-4 - Page 48

IVA-10
Section IVA- OPERATING INSTRUCTIONS
WHEEL LIFT (cont'd)
4A.5 SAFETY STRAP INSTRUCTIONS (cont'd)

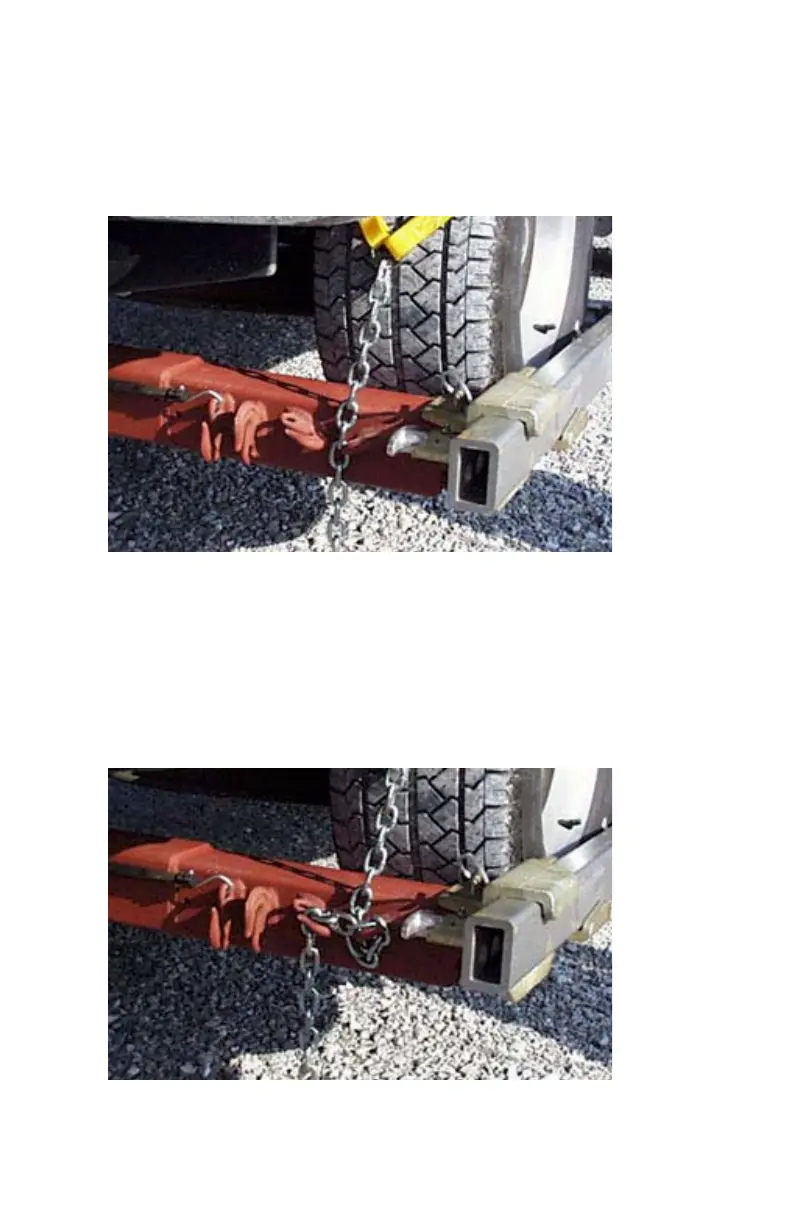

FIGURE 4A.11
(e) Wrap the chain below one hook, then around and back over
the top.
(f) Seat the chain firmly into the hook, then pass across the top of
the second hook, also seating the chain. See Figure 4A.12.
FIGURE 4A.12
