Hobby scissors
Hardware Description and Identification: M3x6 = 3x6mm and can refer to screws or ball bearings.
M3x6 Phillips Machine Screw
M - metric
3 - diameter
6 - length
M3x6 Self Tapping Screw
M - metric
3 - diameter
6 - length
M3x10 Socket Cap Screw
M - metric
3 - diameter
6 - length
3x7 Ball Bearing
M - metric
3 - inside
6 - outside

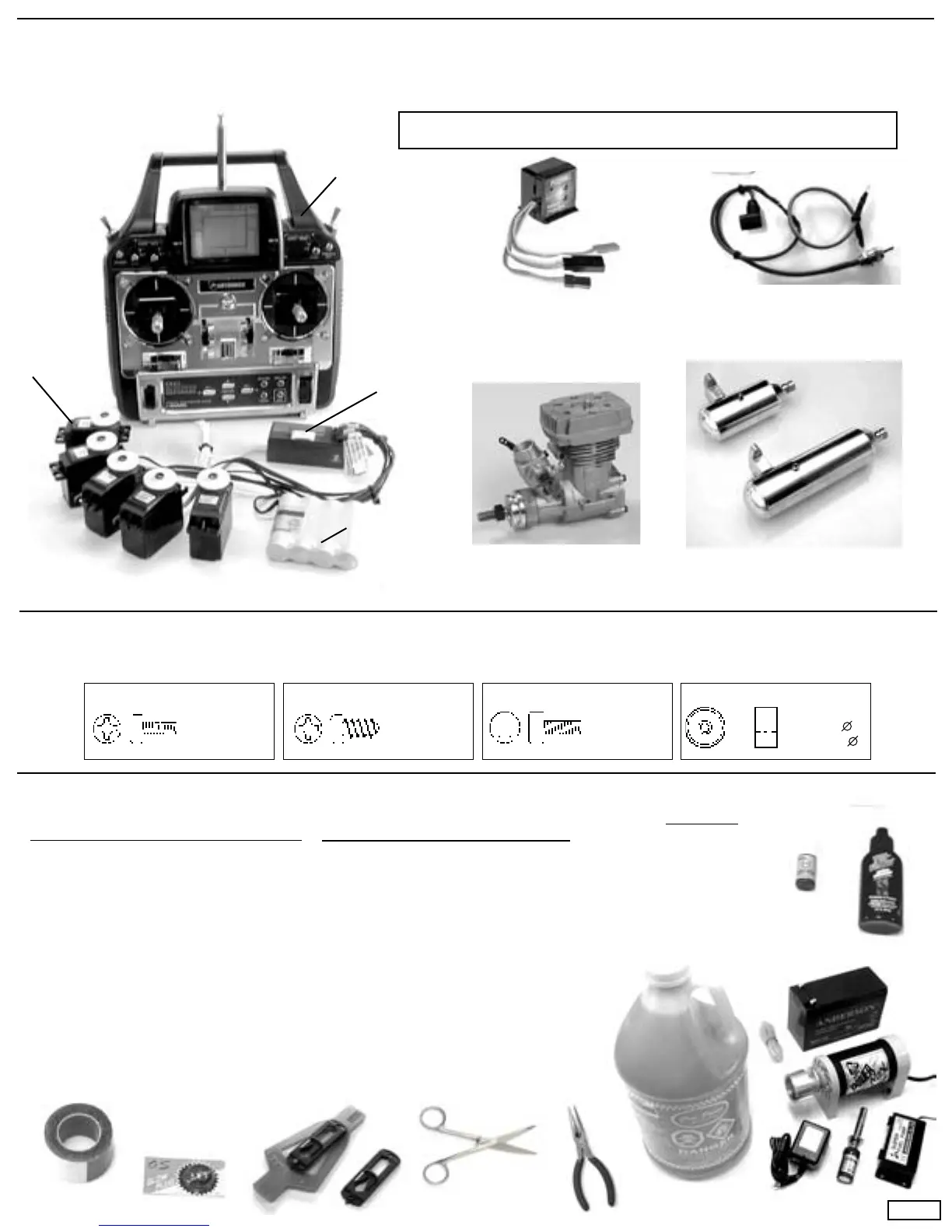

Necessary Items “Not Included” in the kit.
6 Channel Helicopter Radio or Equivalent.
#PG2000 II dual rate piezo gyro
#CN2018 (or eqivalent)
Remote Glow Adapter
#CN2222 (optional)
32-40 Helicopter Engine
Tuned Muffler (example #CN3033)
Required items for operation
This is the general list of items required to get started on any nitro R/C helicopter. Century produces a full spectrum of accessories and tools to
assemble your helicopter. The Hawk Pro is a mechanical cyclic collective pitch mixing type helicopter requiring a standard helicopter radio (the
helicopter radio does not require eCCPM type mixing for this model). The Hawk Pro uses 5 servos to operate critical systems. Gyroscopes are
required to operate the model safely.
Recommended Tools & Accessories
Part#CN2015 Hardened Tip Hex Screw Driver Set
Part#CN2026 Pitch Gauge with Paddle Gauge
Part#CN2034A 15
0
Curve Tip Ball link Pliers
Part#CN2052 Main Blade Balancer
Part#CN2054P Glow Plug Wrench Purple
Part#CN2055 Ball Link Sizing Tool
Part#CN2070 Universal Flybar Lock
Part#CN2155 Piston Locking Tool
Part#CN2219 Ball Link Easy Driver
Part#CN2255 Control Rod Guage
Part#CNWI26555 5.5mm Nut Driver
Part#CNWI26570 7.0mm Nut Driver
Screwdrivers - Slotted and Phillips head
Long-Nosed Pliers.
Allen Wrenches - 1.5mm, 2.0mm, 2.5mm
( supplied in kit ) + 3.0mm
Appropriate Socket Wrench
(glow plug wrench for engine shaft nut)
Hobby Scissors
Double Sided Foam Tape ( 1/16” - 3/32” )
Foam Rubber ( radio packing )
JB Weld ( bond clutch lining )
Thread lock liquid (e.g. Locktite)
Hobby Grease ( Super Lube )
Oil to lubricate sliding shafts
“Y” Harness for 4 Ch Airplane Radio with 5 servo
The tools and materials listed below are
the minimum needed to build the helicopter:
In addition, the following will make assembly and setup easier, and
prove useful later in your model toolbox:
Main Blade Pitch Gauge
w/PaddleGauge
#CN2026
15% or 30%
Heli Fuel
12Volt Start Battery
12Volt
Starter
Fuel
Line
Electric or Hand
Fuel Pump
Glow Driver
w/Charger
Locktite
CN2025BS blue
CN2025RS red
CN2024T
Lubrication
Needle Nose Plier
& Cutter Pliers
Glow Plug
Servo Tape
Fastener and ball bearing dimensions
3
Servos (5)
Receiver
Transmitter
Bettery Pack
