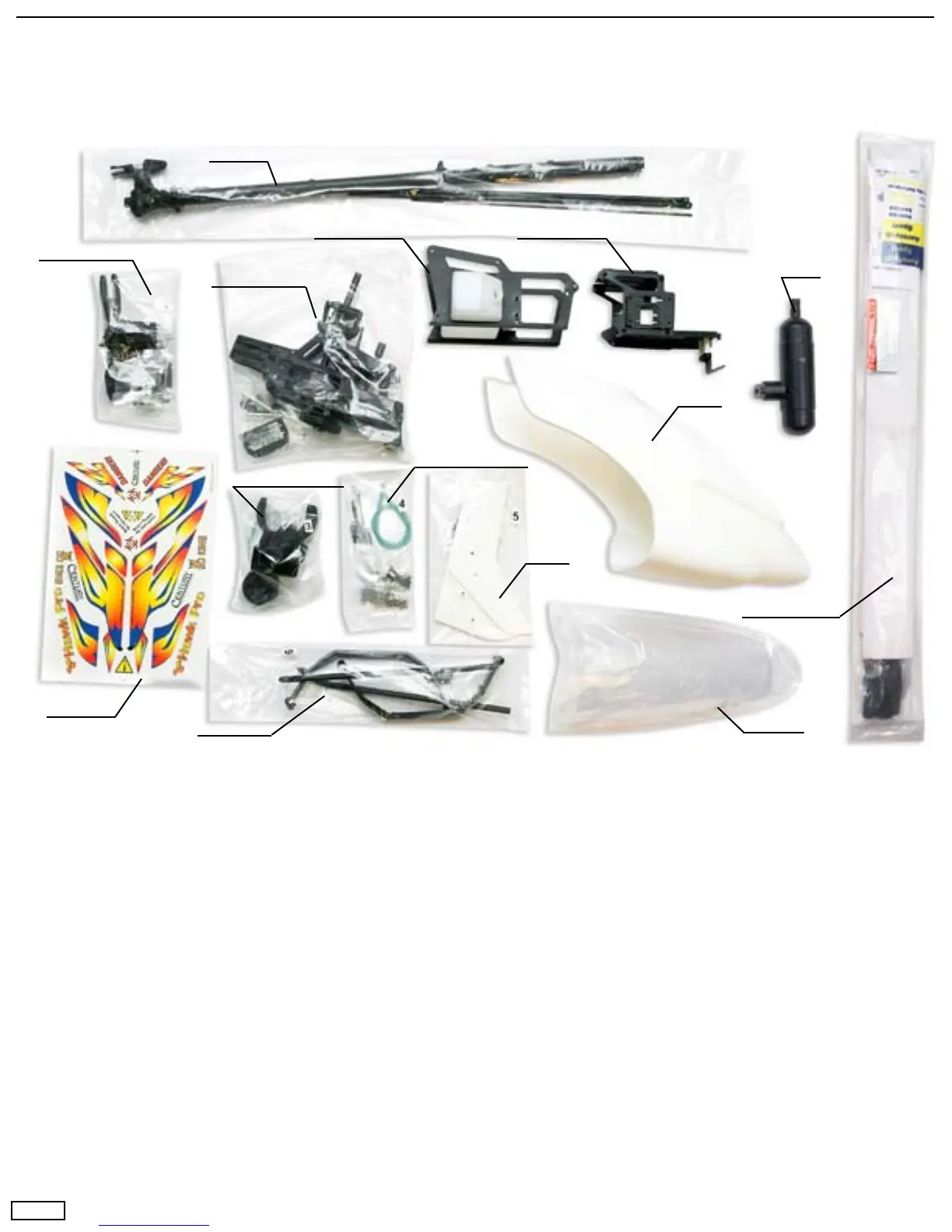

Century Hawk Pro - Package Contents Overview; Package Contents Inventory

Rotor head items
Tail section
Upper frame set
Lower frame set Servo frame set
Decal sheet
Landing gear
Windshield
Fin pack
Hardware/ Pushrods
Clutch, fan & shroud
Canopy
Tail section:
•Tail assembly (complete)
•Tail boom support struts (2)
•Flybar (1)
*Antenna tube (1)
Rotor Head Items:
•Rotor head (complete)
•Flybar paddles (2)
•Paddle weights (2)
•3x3 set screws (2) (for paddle weights)
•Flybar control arm (2)
•Double link (2) (flybar to washout arm)
•4x5 set screws (2) (flybar control arms)
•3x6x2.5 plastic spacer (2) (between flybar control arm
and seesaw)
•3x7x3 ball bearing (2) (flybar, inside seesaw bearing
cups)
Upper frame set:
•Upper side frame assembly (complete)
•Aluminum canopy standoff (2)
•Canopy grommets (2)
•Canopy hook (1) (inside canopy)
•3X40 threaded rod (1) (canopy standoffs)
•Horizontal fin upper clamp (1) (white plastic part that
connects to fin)
•M3 lock nut (1)
•3x20 Socket head cap screw (1)
•M3 locknut (1)
•3x6 self tapping screw (2) (connects lower side frame
to fan shroud)
•3x12 Self tapping screws (4) (for servos)
•3x16 Socked head cap screws (4) (not used/spares)
•3x8 flat washers (4)
•Rudder servo mount bracket (1)
•3x30 socket head cap screws (2)
•Grey ball link (1) (rudder pushrod forward end)
•Servo mounting tabs (7)
Clutch, fan & shroud:
•Clutch (clutch and housing) (1)
•Cooling fan (1)
•Cooling fan shroud (1)
•Long aluminum tube (1)
•Short aluminum tube (1)
•Fuel fitting set (1 set)
•Tie wrap (1)
•Clunk (1)
•3x18 self tapping screw (1) (fuel cap)
•5 inches fuel tubing (1)
•5x13 flat washer (1) (between cooling fan and
engine nut)
•9x14 flat washer (1) (replaces thrust washer on
engine)
•3x16 socket head cap screws(4)
•3x8 self tapping screws (2)
•3x12 self tapping screw (2)
•3x6 washer head screws (2)
Hardware/Pushrods:
•1 foot fuel tubing (1)
•Pushrods (5)
•4x30 Socket head cap screws (2) (main blade bolts)
•M4 locknut (2)
•2.5x12 self tapping screws (20) (servos)
•Throttle lever (1)
•Metric allen key (3)
•Throttle pushrod (1)
•M2 short balls (7) (servo arms)
•M2 nut (7) (servo arms)
•3x25 socket head cap screws (4)
•M3 locknut (4)
Fin pack:
•Vertical and horizontal fins (1ea.)
•tail rotor blades (2)
•3x16 socket head cap scews (4)
•M3 locknut (6)
•3x8 self tapping screws (2) (fin clamp underside)
•3x8 flat washer (4)
•3x9x4 thick spacer (2) (boom support to frame)
•3x30 socket head cap screws (2) (vertical fin)
Landing gear:
•Landing struts (2)
•Landing skids (2)
•M3 locknut (4)
•3x20 socket head cap screws (4)
•3x9x4 plastic landing gear spacer (4)
•3x4 set screw (4)
Canopy (1)
Windshield (1)
Decal sheet (1)
Lower frame set (1)
Servo frame set (1)
Muffler (1)
Main rotor blades (1 pair with hardware)
Package contents: Opening The Hawk Pro for the first time
Time to inventory your Hawk Pro! The helicopter is assorted into multiple bags contained inside the box. Each bag will have some parts that are
not associated with that specific part bag. We recommend organizing all hardware and pieces and inventory them then keep them with their re-
spective bags. It is common to have a few screws and/or washers left on the side after the build.
4
Muffler
Main rotor blades
