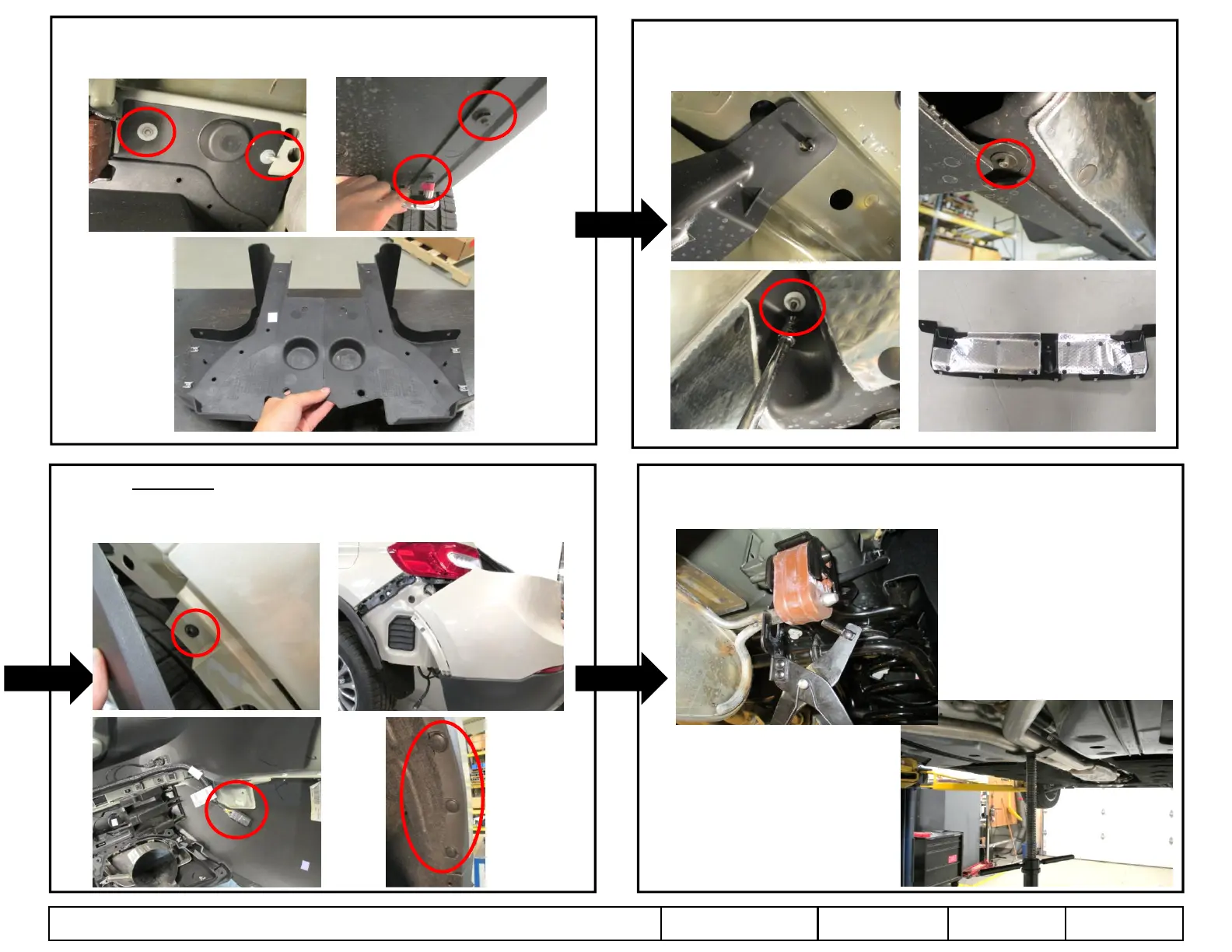

1a. Bottom side plastic panels removal – use 5.5 mm and 10 mm socket to remove (2) bolts
and (2) flange nuts attached on panel each side, see Figure 2. Remove panels and keep them
for reinstallation.
1b. NOTE: for Edge Sport and MKX AWD model, remove (6) bolts and (1) flange nut
attached on center plastic panel with heat shields, see Figure 3, and then remove the
panel. Return to owner.
1c. NOTE: for MKX model, bumper fascia removal is recommended for easier installation.
Use flat head and CR-VT 20 screwdriver to remove (3) rivets and (1) bolt attached on fascia
each side, see Figure 4. Open the trunk, gently pull the fascia away from car and disconnect
electrical connector on driver side, see Figure 5.
2. Lower muffler– remove exhaust hanger rod from rubber isolator both sides. Use stand to
support and prevent from damaging muffler. NOTE: If bumper fascia is removed already, skip
this step.
