CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL 35

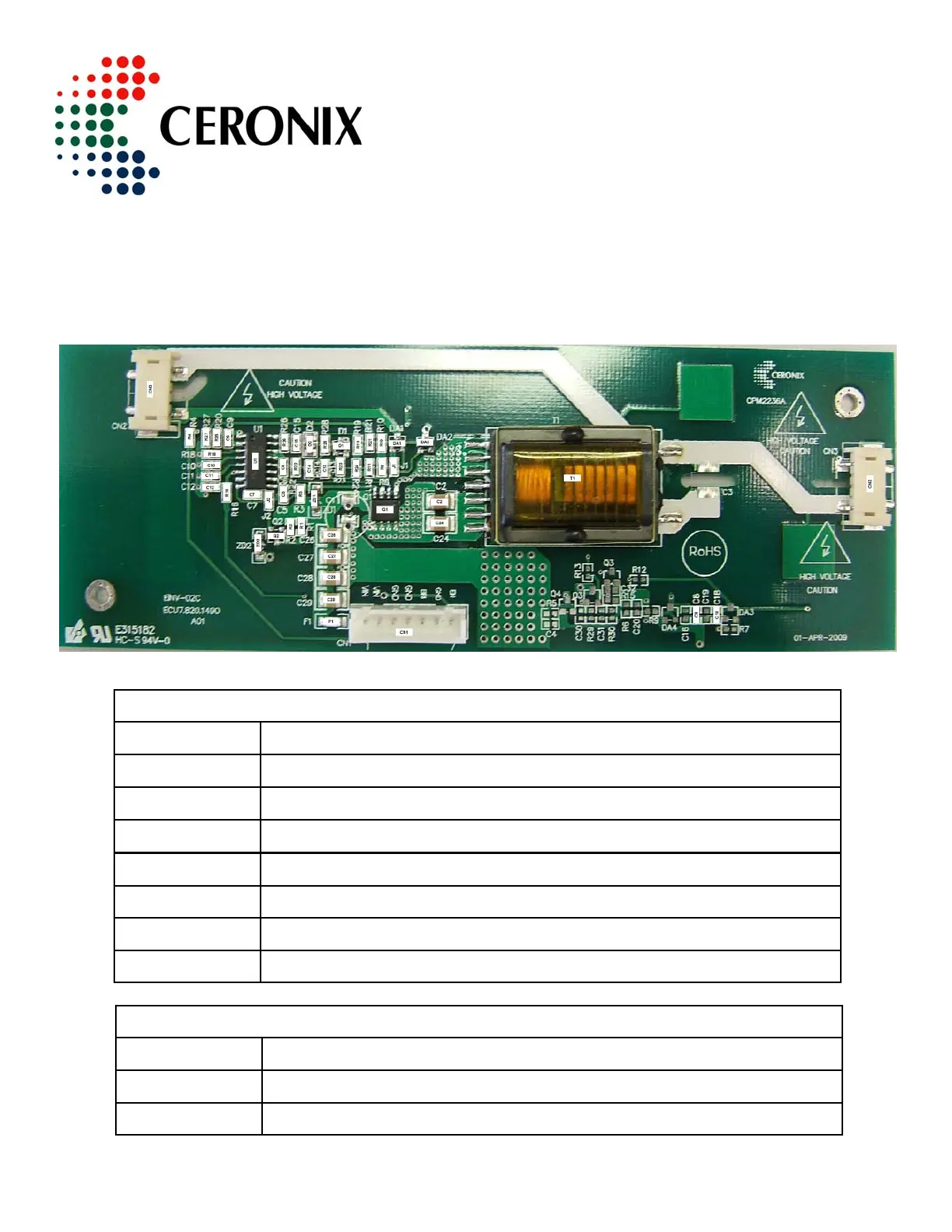

20. 24V 2-LAMP INVERTER
CERONIX PART NUMBER CPM2236A
INPUT: 24VDC, .45A
OUTPUT: CCFL LAMP CURRENT RANGE 3.5-8.0mA @ 50kHz
CN1 DC SUPPLY AND CONTROL
PIN FUNCTION
1 +24VDC
2 +24VDC
3 GROUND
4 GROUND
5 BRIGHT ADJUST
6 GROUND
7 ON/OFF CONTROL
CN2, CN3 CCFL LAMP CONNECTION
PIN FUNCTION
1 CCFL HIGH VOLTAGE
2 CCFL RETURN
