CERONIX 15, 17, 19,
20, 22 INCH LCD MONITOR SPECIFICATIO
N AND SERVICE MANUAL
33

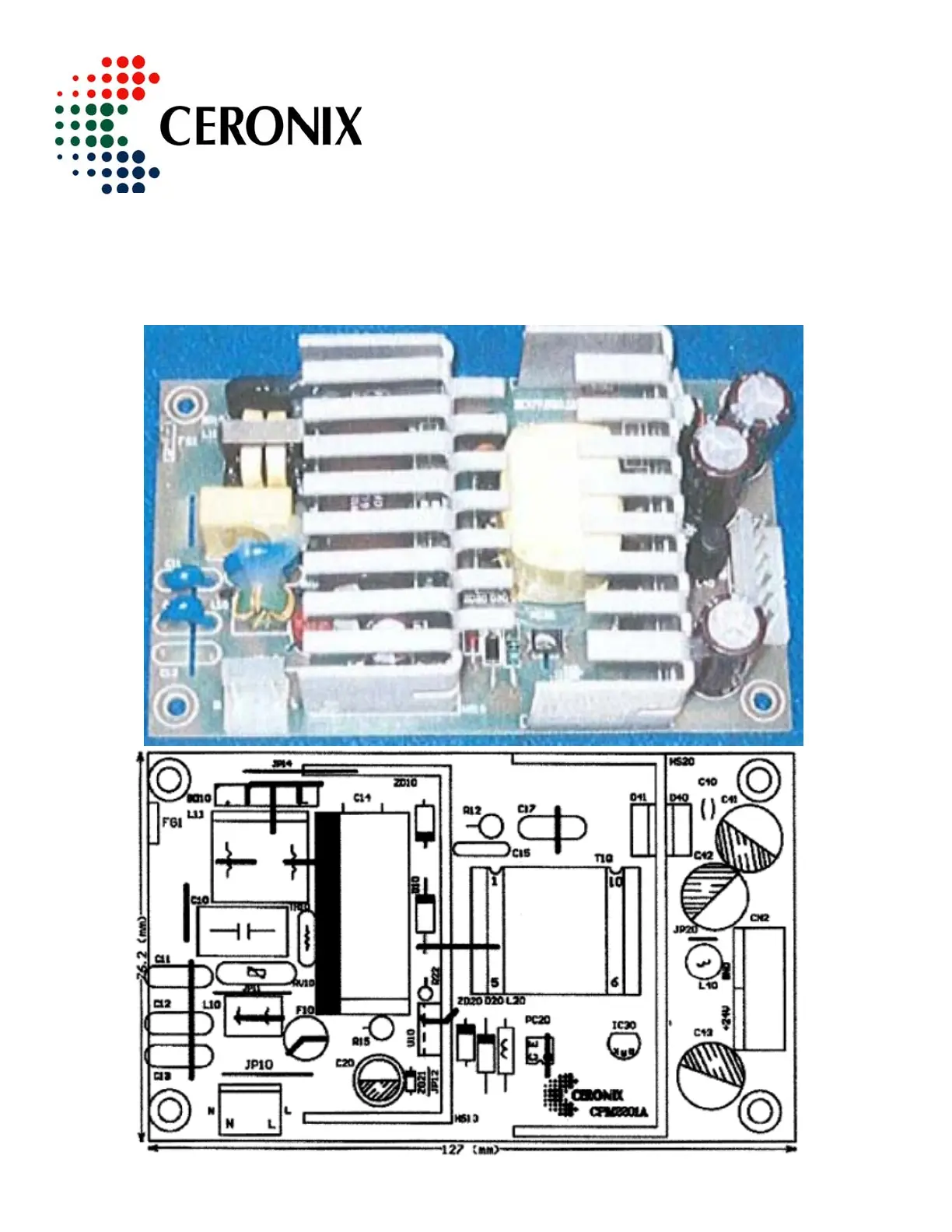

19.
A/C TO DC POWER SUPPL
Y
CERONIX P
ART NUMBER CPM2201A
INPUT:
100-240VAC, 50-60Hz, 1.3A
OUTPUT: 24VDC, 2.5A
32
34
