CERONIX 15, 17, 19,
20, 22 INCH LCD MONITOR SPECIFICATIO
N AND SERVICE MANUAL
9

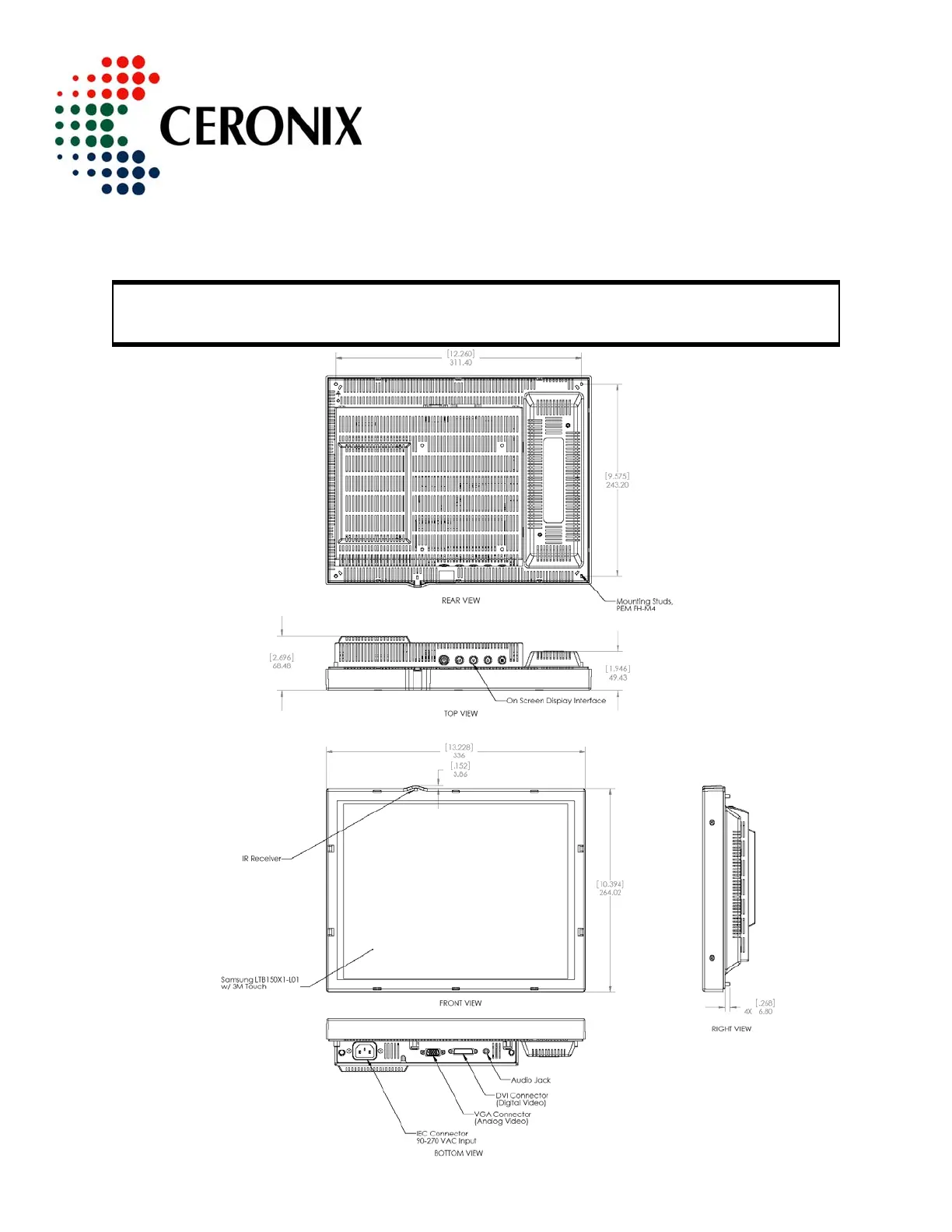

8. Mechanical & Envi
ronmental Specifications
Dimensions (W x H x D)
10.394” x 13.228” x 2.696” (150X-LCD)
Environment
Operational 0° to 70°C, Humidity 5% to 90% Non-Condensin
g
8
10
Table of Contents
Table of Contents
4
General Description
5
General Features
5
Electrical and Panel Specifications
6
Application Timing
7
Mechanical and Environmental Specifications P9-13
9
Mechanical Rendering
14
OSD Navigation
15
Burn-In Mode P20
20
A/D Controller Board P21
21
A/D Controller Board Pin Description P22-27
22
