CERONIX 15, 17, 19,
20, 22 INCH LCD MONITOR SPECIFICATIO
N AND SERVICE MANUAL
33
19.

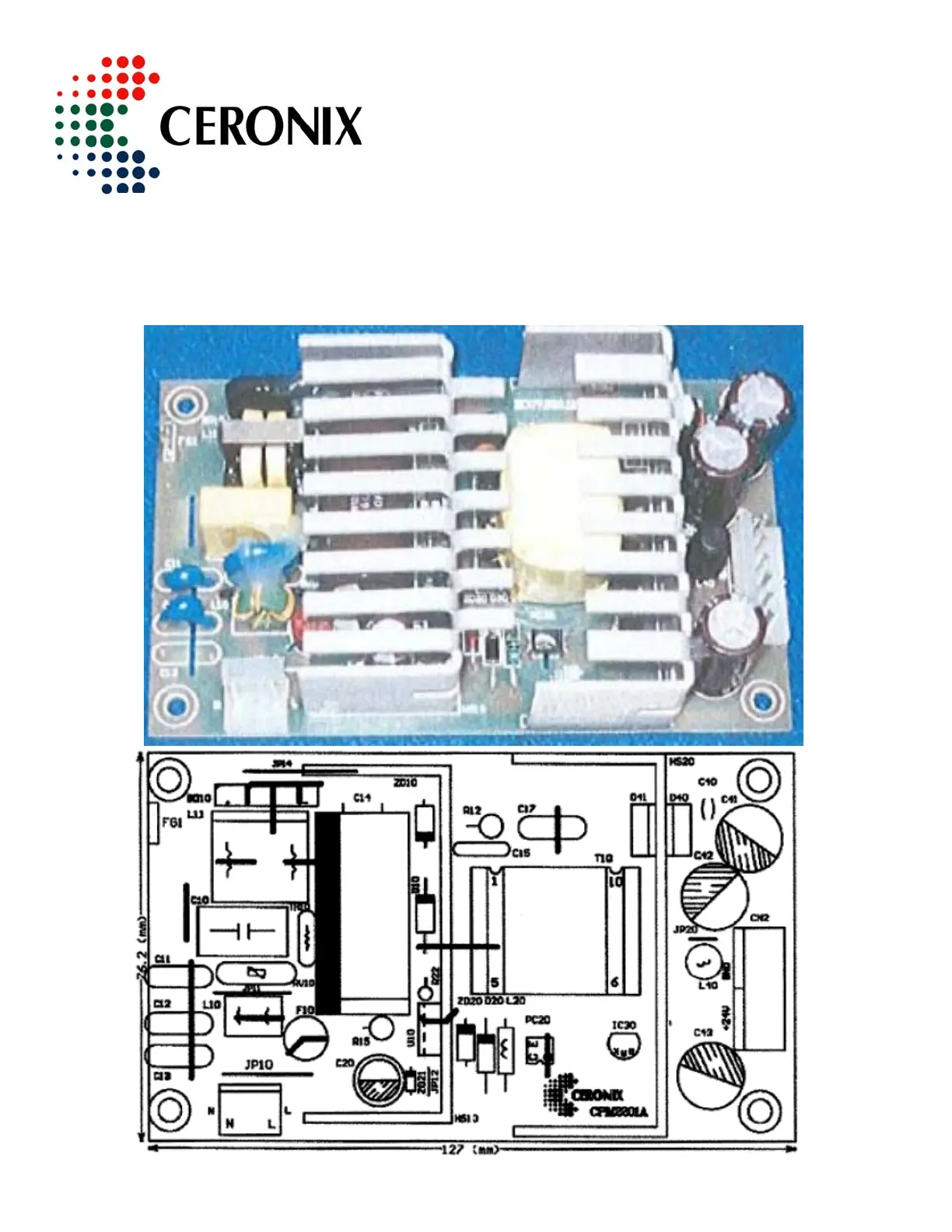

A/C TO DC POWER SUPPL
Y
CERONIX P
ART NUMBER CPM2201A
INPUT:
100-240VAC, 50-60Hz, 1.3A
OUTPUT: 24VDC, 2.5A
32
34
Table of Contents
Table of Contents
4
General Description
5
General Features
5
Electrical and Panel Specifications
6
Application Timing
7
Mechanical and Environmental Specifications P9-13
9
Mechanical Rendering
14
OSD Navigation
15
Burn-In Mode P20
20
A/D Controller Board P21
21
A/D Controller Board Pin Description P22-27
22
