Inspecting the Auger Paddle
Service Interval: Yearly - Inspect the auger
paddle and have the distributor or local
agent replace the auger paddle and scraper if
necessary.
Inspect the auger paddle for wear. When a rotor
blade edge has worn down to the wear indicator
hole, have the distributor or local agent replace
the auger paddle and the scraper
(Fig. 22).
WARNING:
If the wear indicator hole is intact, you don’t need to replace the auger paddle.
If the wear indicator hole is exposed, replace the auger paddle and scraper
REPLACE AUGER PADDLES
Replace auger paddles when paddles have worn completely through wear indicator holes (Fig. 22).
IMPORTANT: ALWAYS replace paddles in pairs. DO NOT replace only one paddle.
Remove Auger Paddles
1. Stop engine and wait for all moving parts to
stop and for hot parts to cool.
2. Disconnect spark plug wire and turn fuel
valve to off position (Fig. 23).
3. Tip unit back onto handlebar bend.
NOTICE: DO NOT tip beyond handlebar
bend or oil may leak from engine.
4. Remove hardware retaining paddles to
centre plate and side plates. Discard all
parts.
IMPORTANT: DO NOT remove centre
plate.
Installing Auger Paddles
1. Install spacers into paddle holes. (Figs. 25 &
26).

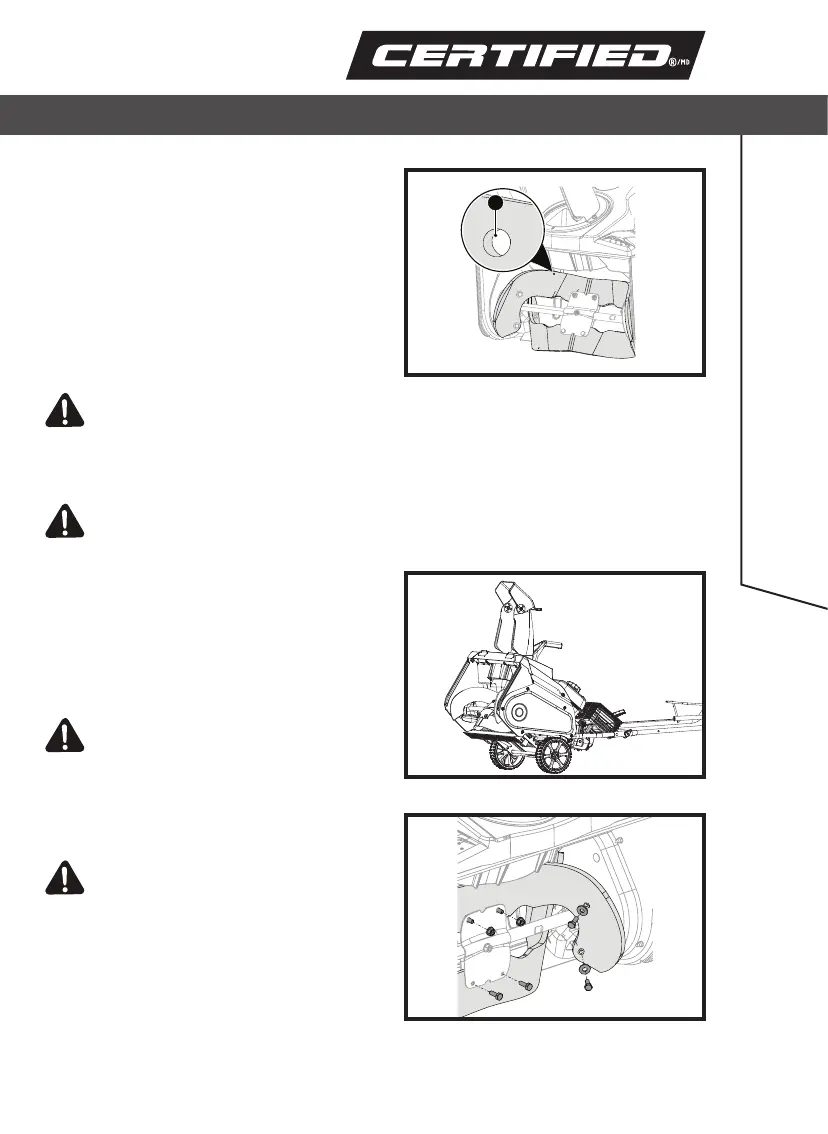

Fig. 22
Fig. 23
Fig. 24
STORING AND MAINTENANCE
1.Wear Indicator Hole
