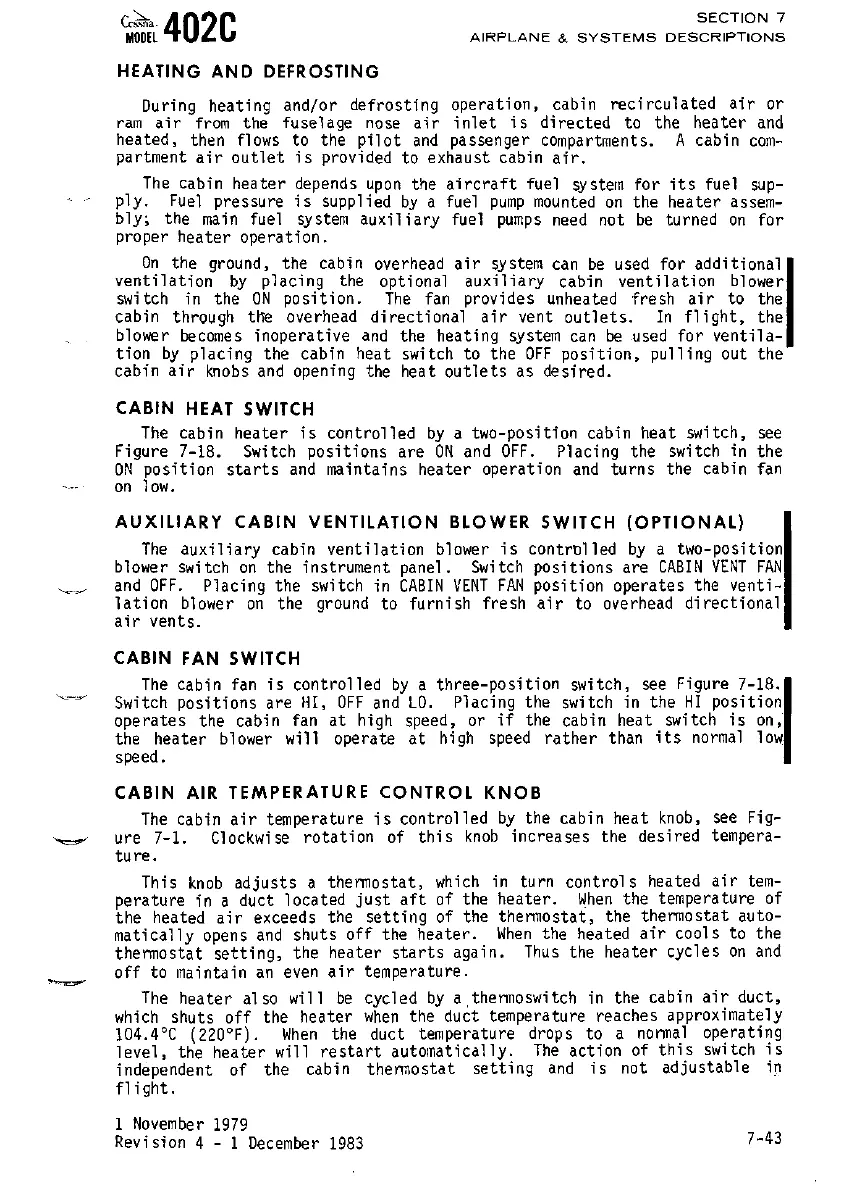

G-.~'402C
MOOEL
HEATING
AND
DEFROSTING
SECTION
7
AIRPLANE
&
SYSTEMS
DESCRIPTIONS
7-43
During
heating
and/or
defrosting
operation,
cabin
recirculated
air
or
ram
air
from
the
fuselage
nose
air
inlet
is
directed
to
the
heater
and
heated,
then
flows
to
the
pilot
and
passenger
compartments. A
cabin
com-
partment
air
outlet
;s
provided
to
exhaust cabin
air.
The
cabin
heater
depends upon
the
aircraft
fuel
system
for
its
fuel
sup-
ply.
Fuel
pressure
is
supplied
by
a
fuel
pump
mounted
on
the
heater
assem-
bly;
the
main
fuel
system
auxiliary
fuel
pumps
need
not
be
turned
on
for
proper
heater
operation.
On
the
ground.
the
cabin
overhead
air
system can
be
used
for
additional
I
ventilation
by
placing
the
optional
auxiliary
cabin
ventilation
blower
switch
in
the
ON
position.
The fan
provides
unheated
fresh
air
to
the
cabin
through
tlte
overhead
directional
air
vent
outlets.
In
fl
ight,
the
blower
becomes
inoperative
and
the
heating
system can
be
used
for
ventila-
tion
by
placing
the
cabin
heat
switch
to
the
OFF
position,
pulling
out
the
cabin
air
knobs and
opening
the
heat
outlets
as
desired.
CABIN
HEAT SWITCH
The
cabin
heater
is
controlled
by
a
two-position
cabin
heat
switch,
see
Figure
7-18.
Switch
positions
are
ON
and
OFF.
Placing
the
switch
in
the
ON
position
starts
and
maintains
heater
operation
and
turns
the
cabin
fan
on
low.
AUXILIARY
CABIN
VENTILATION
BLOWER
SWITCH
(OPTIONAL)
The
auxiliary
cabin
ventilation
blower
is
controlled
by
a
two-position
blower
switch
on
the
instrument
panel.
Switch
positions
are
CABIN
VENT
FAN
and
OFF.
Placing
the
switch
in
CABIN
VENT
FAN
position
operates
the
venti-
lation
blower
on
the
ground
to
furnish
fresh
air
to
overhead
directional
air
vents.
CABIN
FAN
SWITCH
The
cabin
fan
is
controlled
by
a
three-position
switch,
see
Figure
7-18.,
Switch
positions
are
HI,
OFF
and
LO.
Placing
the
switch
in
the
HI
position
operates
the
cabin
fan
at
high
speed,
or
if
the
cabin
heat
switch
is
on,
the
heater
blower
will
operate
at
high speed
rather
than
its
normal low
speed.
CABIN
AIR TEMPERATURE
CONTROL
KNOB
The
cabin
air
temperature
is
controlled
by
the
cabin
heat
knob, see
Fig-
ure
7-1.
Clockwise
rotation
of
this
knob
increases
the
desired
tempera-
ture.
This
knob
adjusts
a
thennostat,
which in
turn
control
s
heated
air
tem-
perature
in
a
duct
located
just
aft
of
the
heater.
~hen
the
temperature
of
the
heated
air
exceeds
the
setting
of
the
thennostat,
the
thennostat
auto-
matically
opens and
shuts
off
the
heater.
When
the
heated
air
cools
to
the
thermostat
setting,
the
heater
starts
again.
Thus
the
heater
cycles
on
and
off
to
maintain
an even
air
temperature.
The
heater
al
so
will
be
cycled
by
a
thennoswitch
in
the
cabin
air
duct,
which
shuts
off
the
heater
when
the
duct
temperature
reaches
approximately
104.4°C
(220°F).
When
the
duct
temperature
drops
to
a nonnal
operating
level,
the
heater
will
restart
automatically.
The
action
of
this
switch
is
independent
of
the
cabin
thennostat
setting
and
is
not
adjustable
irt
flight.
1
November
1979
Revision
4 - 1 December 1983
