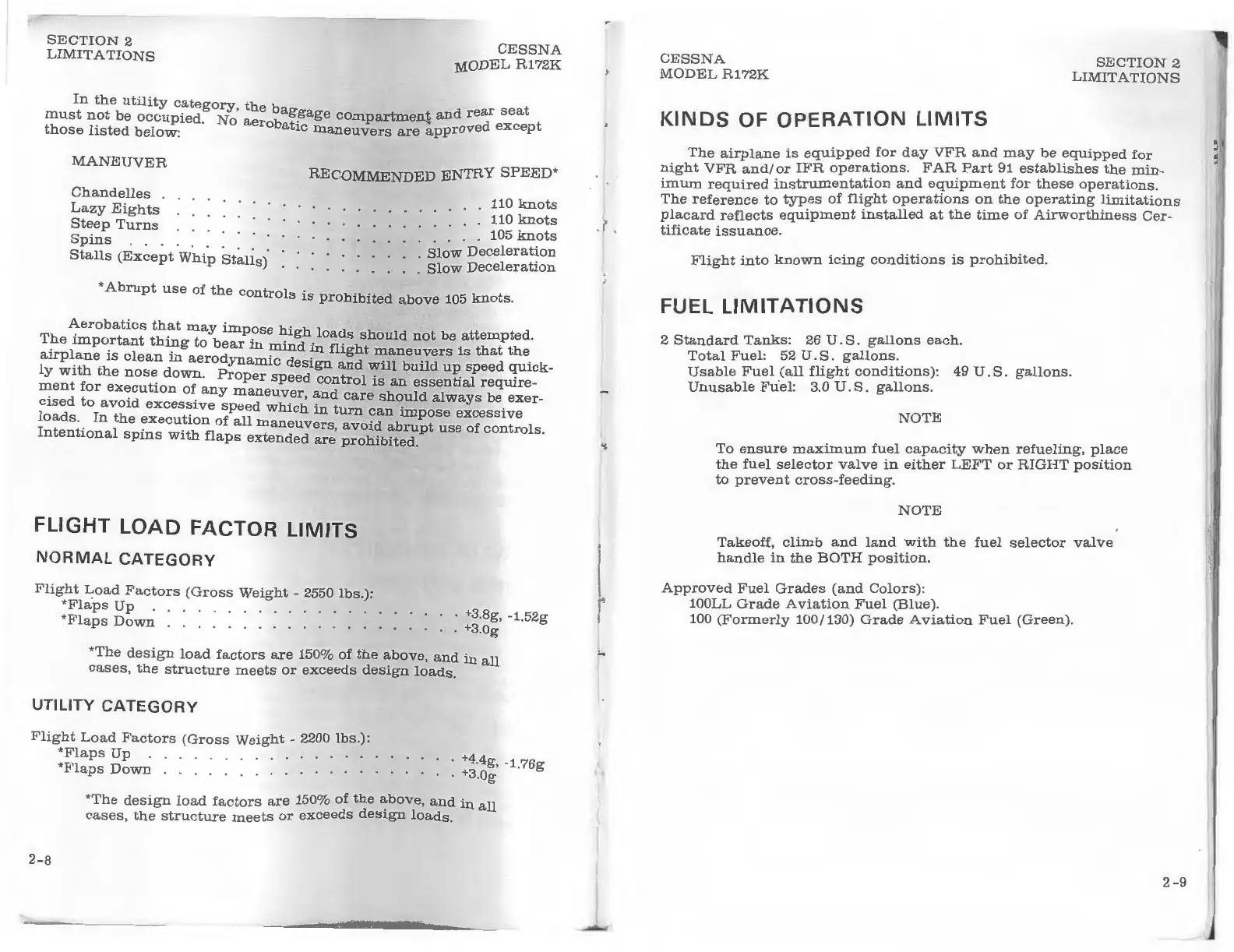

SECTION 2
LIMITATIONS
CESSNA
:MODEL R172K
In the utility category the bag drear seat
t
t
b
. '
gage compartment an
mus no e occupied. No aerobati roved except
those listed below: c maneuvers are app
MANEUVER
Chandelles .
Lazy Eights
Steep Turns
Spins ...
Stalls (Except Whip Stalls)
RECOMMENDED ENTRY SPEED*
110 knots
110 knots
105 knots
: Sl~w· Deceleration
. Slow Deceleration
*Abrupt use of the controls is prohibited above 105 knots .
Aerobatics that may impose high loads should not be attempted.
T~e impo.rtant thi_ng to bear in mind in flight maneuvers is that the
airp~ane is clean m aerodynamic design and will build up speed quick-
ly with the nose down . Proper speed control is an essential require-
ment for execution of any maneuver, and care should always be exer-
cised to avoid excessive speed which in turn can impose excessive
loads . In the execution of all maneuvers, avoid abrupt use of controls.
Intentional spins with flaps extended are prohibited.
FLIGHT LOAD FACTOR LIMITS
NORMAL CATEGORY
Flight Load Factors (Gross Weight - 2550 lbs.):
*Flaps Up . . . . . +3.Sg, -1.52g
'<Flaps Down . . . . . . . . . . . · · · · · · . . . +3.0g
'<The
design load factors are 150% of the above, and in all
cases, the structure meets or exceeds design loads.
UTILITY CATEGORY
Flight Load Factors (Gross Weight - 2200 lbs.):
*Flaps Up . . . . . . . . . · · · · · · · · · +4.4g, -1.76g
*
Flaps Down . . . . . . . . . · · · · · · · · · · · +3 . 0g
*The design load factors are 150% of the above, and in an
cases, the structure meets or exceeds design loads.
2-8
.:...
l
CESSNA
MODEL R172K
SECTION 2
LIMITATIONS
KINDS OF OPERATION LIMITS
The airplane is equipped for day VFR and may be ~quipped for
night VFR and/ or IFR operations. FAR Part 91 estabhshes the . mm-
imum required instrumentation and equipment for these. ope~at~ons.
The reference to types of flight operations on the operatmg ~1m1tat1ons
placard reflects equipment installed at the time of Airworthmess Cer-
tificate issuance.
Flight into known icing conditions is prohibited.
FUEL LIMITATIONS
2 Standard Tanks: 26 U.S. gallons each.
Total Fuel: 52 U. S . gallons.
Usable Fuel (all flight conditions): 49 U.S. gallons.
Unusable Fuel: 3.0 U.S. gallons.
NOTE
To ensure maximum fuel capacity when refueling, pl~ce
the fuel selector valve in either LEFT or RIGHT pos1t10n
to prevent cross-feeding.
NOTE
Takeoff, climb and land with the fuel selector valve
handle in the BOTH position.
Approved Fuel Grades (and Colors):
100LL Grade Aviation Fuel (Blue).
100 (Formerly 100/ 130) Grade Aviation Fuel (Green) .
2-9
