FEATURES AND CONTROLS
Right Hand Controls
Front Brake -
7
The front brake lever is located on the right handlebar and controls
only the front brakes. Pull it toward the handlebar to apply the front
brake. When squeezed, the lever should feel rm. Any sponginess
would indicate a possible fluid leak or low master cylinder fluid
level, which must be corrected before riding. Contact your dealer
for proper diagnosis and repairs.

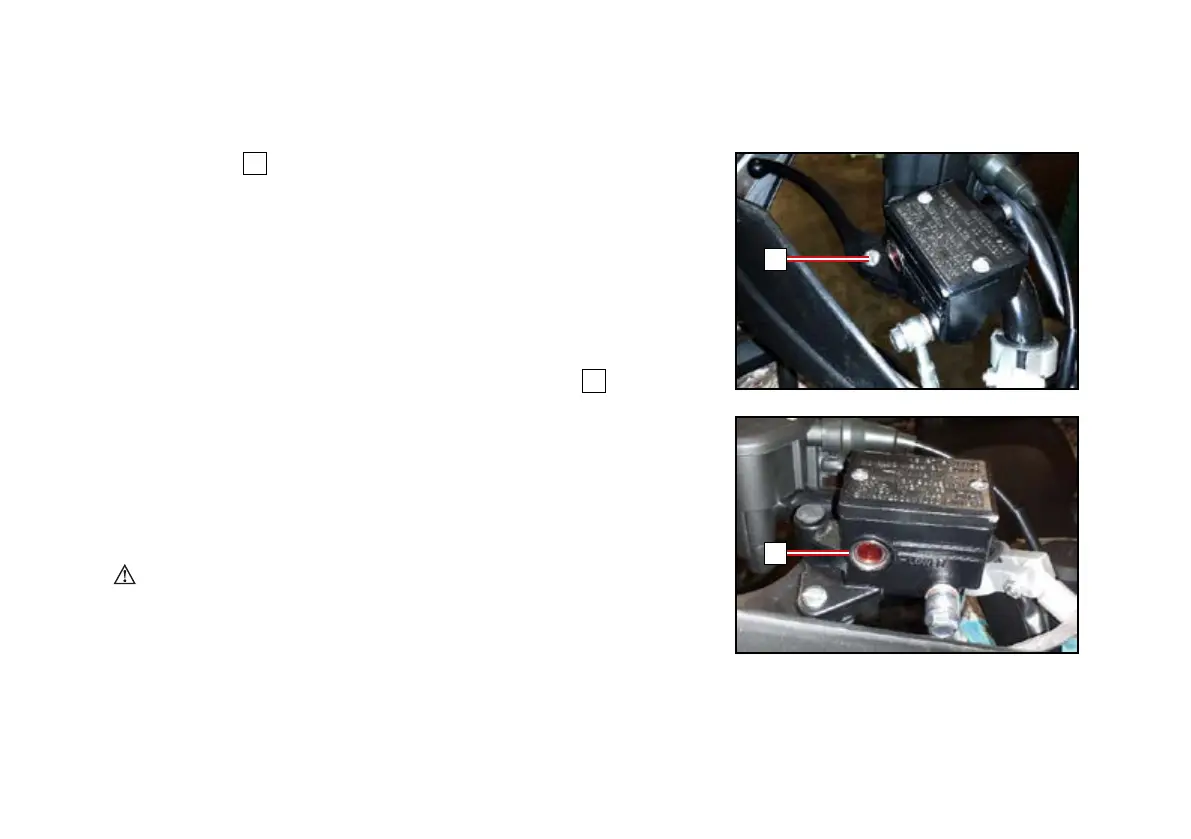

Front Brake Fluid Reservoir and Level Indicator -
8
Check the front brake master cylinder uid level before each use
of the ATV. The front brake master cylinder is located on the right
handlebar. The fluid level can be viewed through the indicator
window on the side of the master cylinder. If the uid level is lower
than the “lower” mark, rell with brake uid as necessary.
WARNING
An over-full master cylinder may cause brake drag or brake lock-
up, which could result in serious injury or death. Maintain brake
uid at the recommended level. Do not overll.
