CFM EF22 - Installation Instructions; Fireplace Dimensions; Electrical Specifications

10009816
5
Installation Instructions
Ref. EF22 EF26/EF26FG EF33 EF36
A 23
¹⁄₂" (597 mm) 27¹⁄₂” (699 mm) 34¹⁄₂” (876 mm) 37¹⁄₂” (953 mm)
B 20
³⁄₄" (527 mm) 25¹⁄₄” (641 mm) 29³⁄₄” (743 mm) 33¹⁄₄” (845 mm)
C 22
¹⁄₂" (571 mm) 26¹⁄₄” (667 mm) 33¹⁄₄” (845 mm) 36¹⁄₄” (921 mm)
D 20" (508 mm) 24
¹⁄₂” (622 mm) 29” (737 mm) 32¹⁄₂” (826 mm)
E 11
¹⁄₂" (292 mm) 11¹⁄₂” (292 mm) 11¹⁄₂” (292 mm) 11¹⁄₂” (292 mm)
F 22" (559 mm) 18” (457 mm) 25” (635 mm) 28” (711 mm)
G 21
¹⁄₄" (540 mm) 25¹⁄₄” (641 mm) 32¹⁄₄” (819 mm) 35¹⁄₄” (895 mm)
H 15" (381 mm) 19
¹⁄₂” (495 mm) 22³⁄₄” (578 mm) 26¹⁄₄” (667 mm)
J 33
⁷⁄₈" (860 mm) 31” (787 mm) 36¹⁄₁₆” (916 mm) 38¹⁄₄” (971 mm)
K 46
⁷⁄₁₆" (1179 mm) 43⁷⁄₈” (1114 mm) 51” (1295 mm) 54¹⁄₁₆” (1373 mm)
L 23
¹⁄₄" (590 mm) 21¹⁵⁄₁₆” (557 mm) 25¹⁄₂” (648 mm) 27¹⁄₁₆” (687 mm)
F
C
E
A
B
D
G
H
1” (25 mm)
J
K
L
J

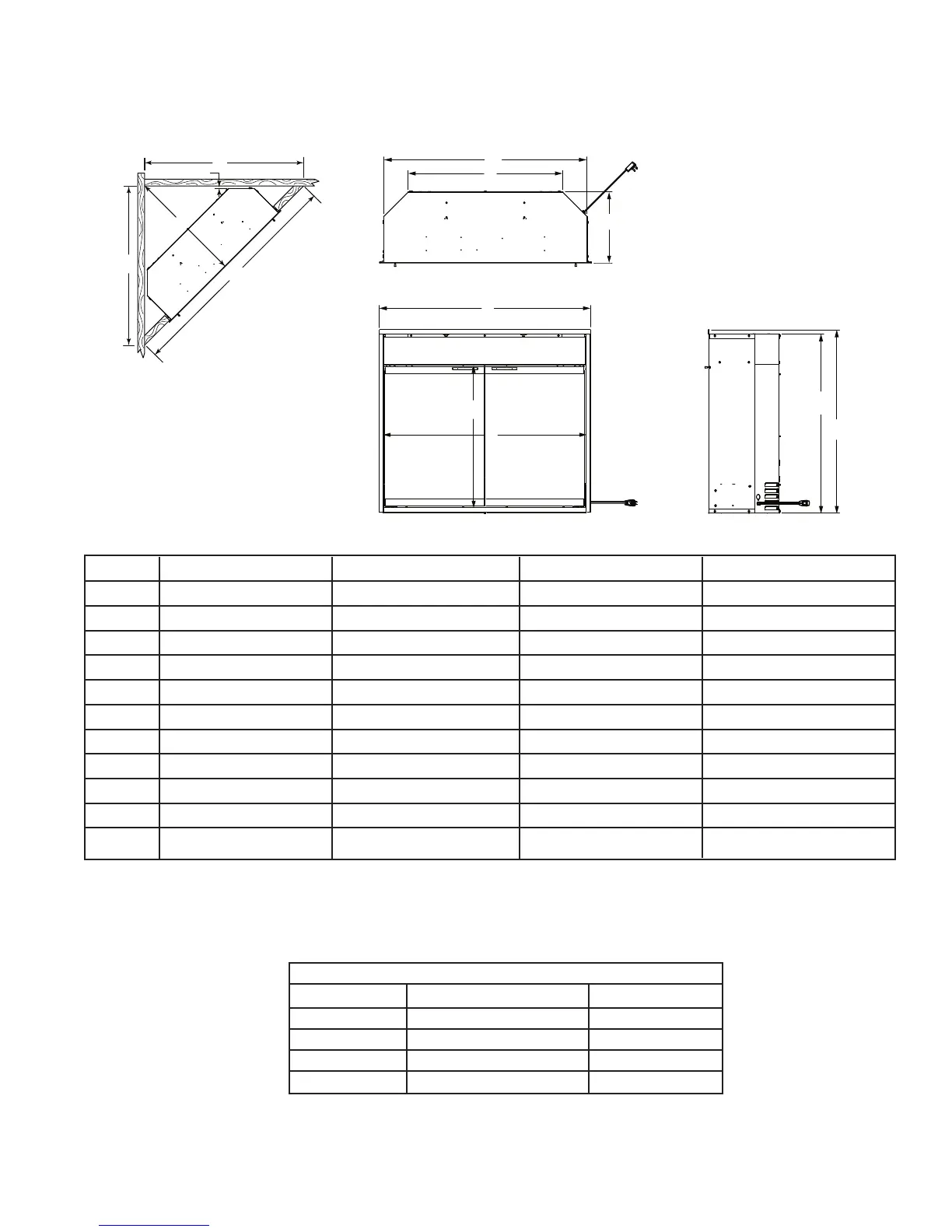

• EF22/26/33/36 Fireplace Dimensions
NOTE: Add 1/4” (7 mm) to Ref. C and D dimensions for wall/cabinet opening clearance.
Units: EFJU4D0, EF0U4F0, EF0U4I0, EF0U4J0, EFJUF50
Electrical Specifications
EF22 / EF26/EF26FG EF33 / EF36
Voltage 120V AC, 60 Hz 120V AC, 60Hz
Total Amps 12 12.5
Total Watts 1450 1500
Heater Rating 1350 Watts 1350 Watts
