EF28 Electric Fireplace
10010019
• Fireplace Assembly
• Unpack the Appliance
Carefully unpack the appliance. All instructions must be read before beginning installation.

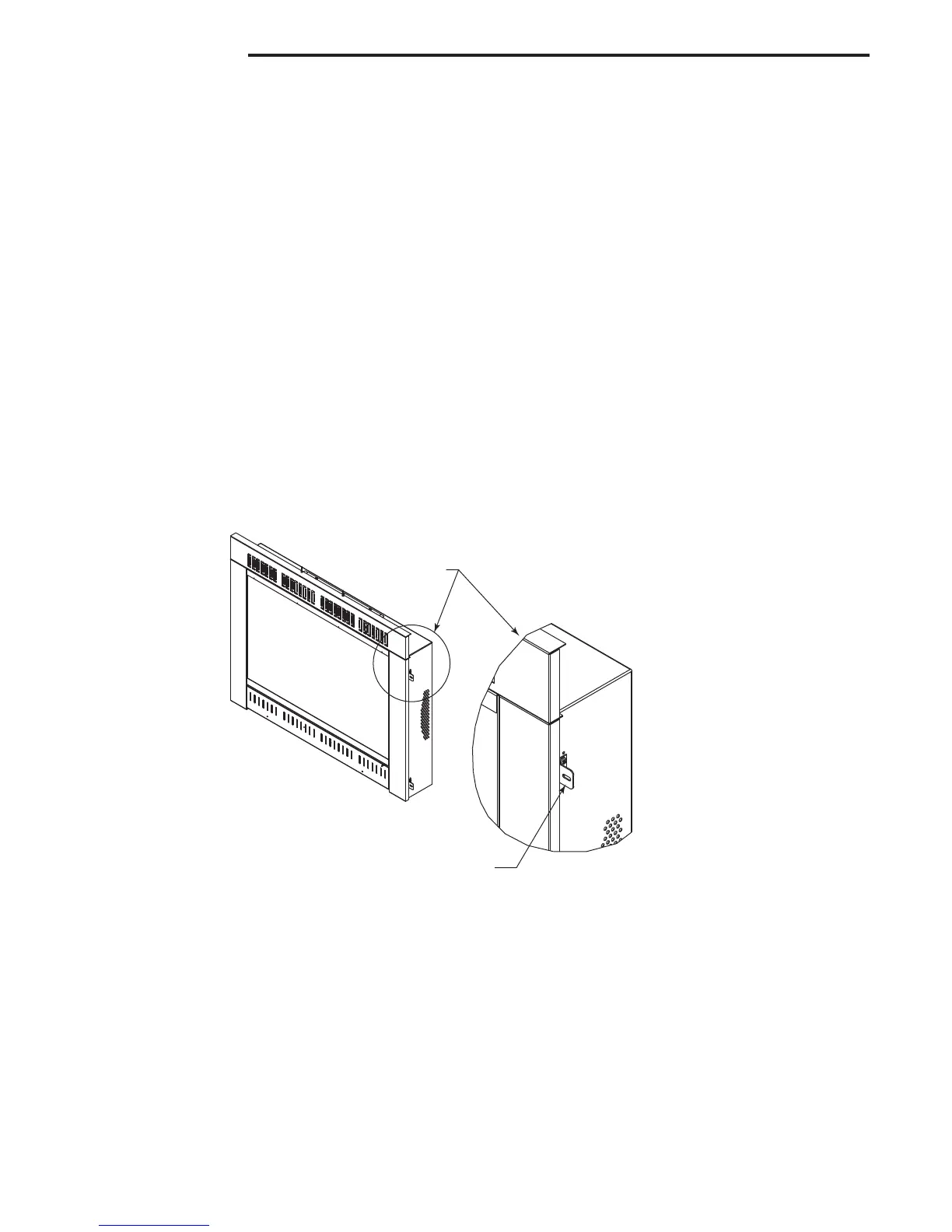

Detail A
Mounting Bracket
Figure 2
FP1741a
2. Carefully place the appliances into position from the rear of the cabinet and cen-
tered in the opening. Secure the appliance to the cabinet using appropriate screws
or fasteners (not supplied).
CAUTION: Take care to avoid scratching the cabinet base.
Carton Contents
1, Electric heater main body
1, Remote control handset with battery
1, Mounting hardware kit [brackets (4), #8-18 x ³⁄₈” long screws (4)]
1, Black/gray river stones pack
1, Ember lava rock
1, Installation instructions
• Appliance Mounting
The appliance is designed to fit into cabinets with either a 5/8” (16 mm) or 3/4” (19 mm)
thick front face panel.
1. Install the mounting brackets (supplied mounting hardware kit) to the sides of the
appliance using the appropriate mounting holes for the brackets to suit the thick-
ness of the cabinet front panel. The set of holes closest to the front face of the appli-
ances are for cabinets with approximately 5/8” (16 mm) thick front panel. (Fig. 2)
To Next Page
