The top half of the Channels
tab contains a table
displaying information about
each channel in the system
including its number, name,
contact impedance (Z (kΩ))
and sensor oset (O (mV)).
The oset is calculated
relative to the reference
channel A1.

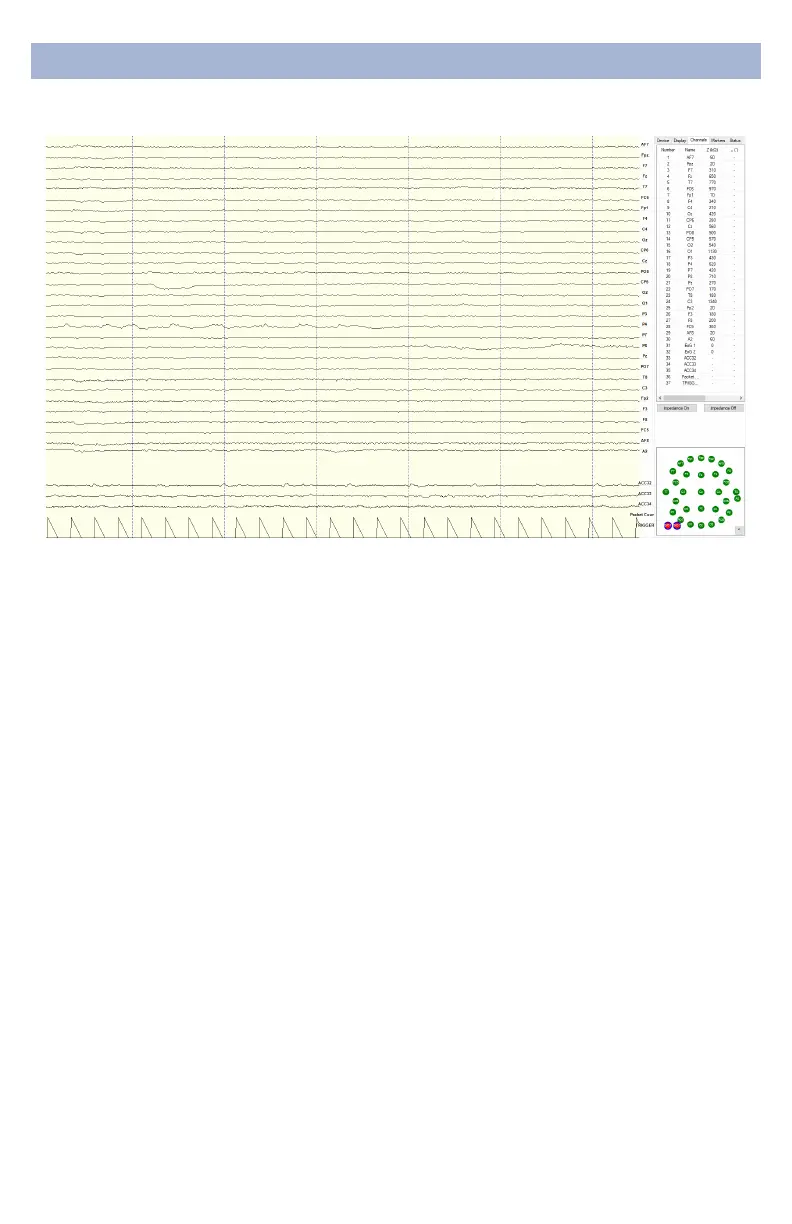

ChannelsTab
The bottom half is a graphical map of sensor contact
quality. Red circles indicate poor contact, whereas green
circles indicate acceptable contact. The threshold for this
contact quality is, by default:
Red Above 2,500 kΩ
Green Below 2,500 kΩ
This threshold can be changed with the Mask Hi-Z menu
Threshold for the Quick-32r is set at 2,500 kΩ.
