Challenge Xtreme PBP180 - Page 8

HELPLINE NO 03448012949
8
ORIGINAL INSTRUCTIONS
a
b
Fig. A1
Fig. A2
Fig. B1
Fig. B2
Fig. C
Fig. E
Fig. F
Fig. G
Fig. H
Fig. J
Fig. K
Fig. D

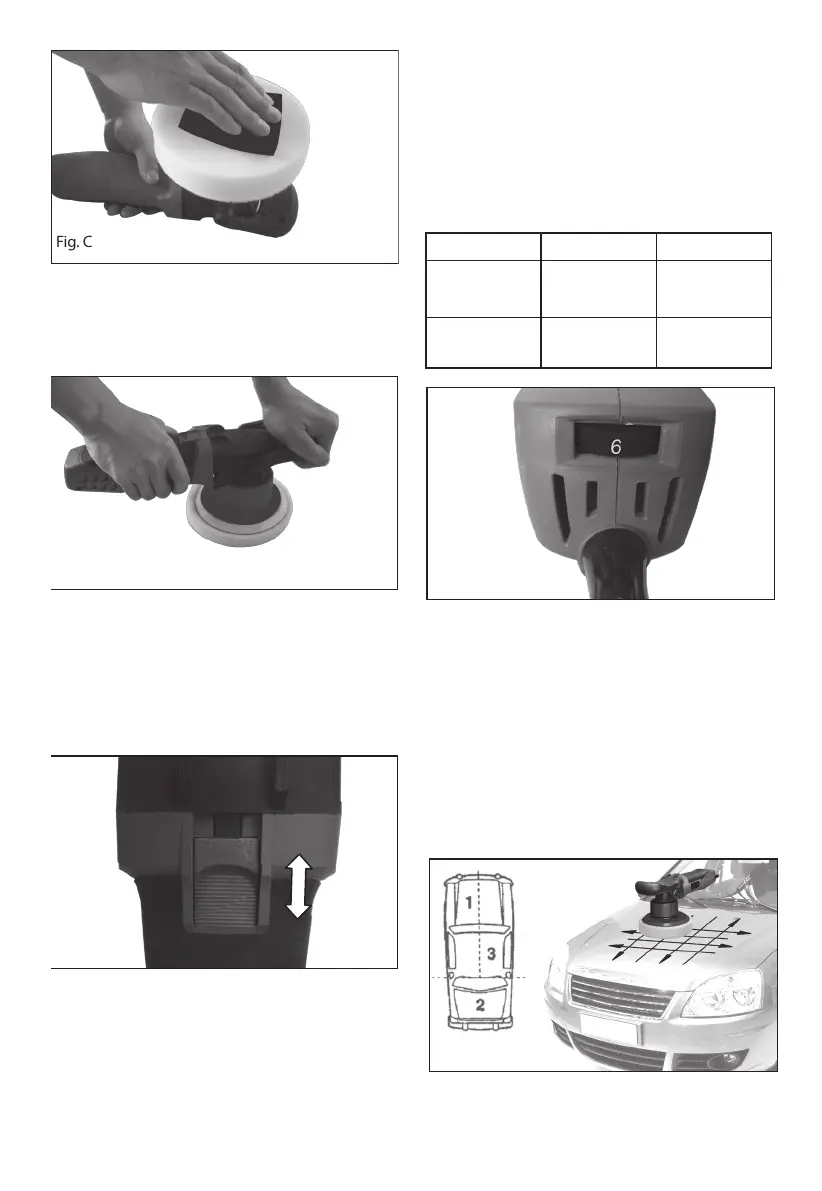

4. HAND GRIP AREAS (See Fig. D)
Always hold your car polisher rmly with both
hands when operating.
a
b
Fig. A1
Fig. A2
Fig. B1
Fig. B2
Fig. C
Fig. E
Fig. F
Fig. G
Fig. H
Fig. J
Fig. K
Fig. D
5. ON/OFF SWITCH (See Fig.E)
Always start and stop the polisher on against the
car surface. Push the On/Off Switch (2) forward
as the arrow of “ON” position shown to start the
polisher. Push the switch backward as the arrow
of “OFF” position shown to stop the polisher.
a
b
Fig. A1
Fig. A2
Fig. B1
Fig. B2
Fig. C
Fig. E
Fig. F
Fig. G
Fig. H
Fig. J
Fig. K
Fig. D
6. VARIABLE SPEED SWITCH (See FIG.F)
The speed increases as you turn the Variable
Speed Switch(3) towards the higher number and
decreases on the lower number.
Thumbwheel position 1 provides the slowest
operating speed and position 6 the fastest. Speed
may be changed while motor is running or while
it is stopped (polisher works best on settings
between position 4-6).
Number step Speed range Operation
1-3 1500-3700/min
Recommend
for lay on wax
4-6 4800-6800/min
Polishing
operation
a
b
Fig. A1
Fig. A2
Fig. B1
Fig. B2
Fig. C
Fig. E
Fig. F
Fig. G
Fig. H
Fig. J
Fig. K
Fig. D
7. TO USE THE CAR POLISHER
(See Fig. G)
Hold extension cord over the shoulder and do at
surfaces rst, i.e.: bonnet boot and roof. Cover
areas
quickly with broad sweeping strokes in a
crisscross pattern. Do not press down on polisher.
The machine
without any pressure will automatically do the
best job.
