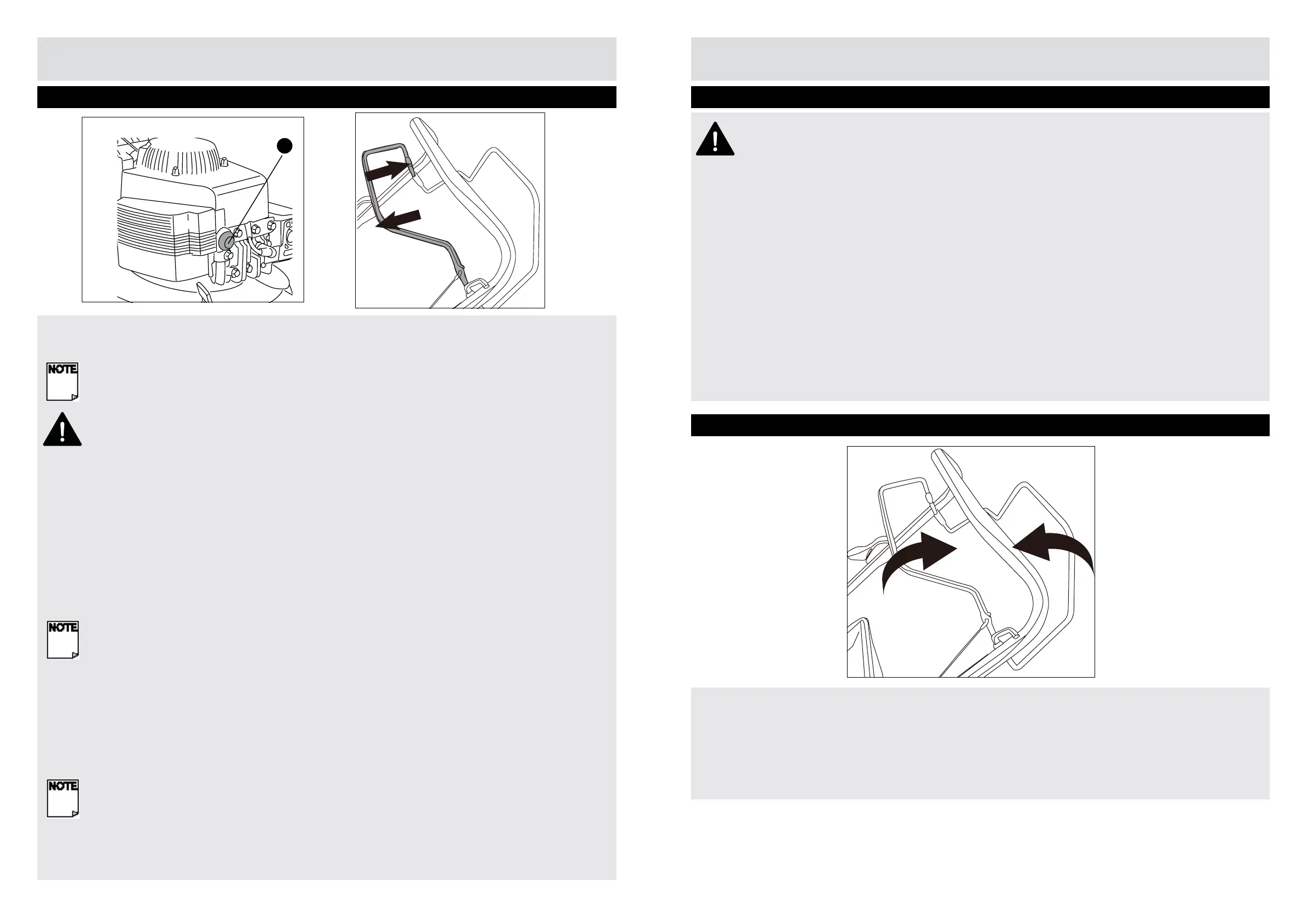

Operating the Lawnmower
Step 2 - Starting the Engine (continued)
2b Press the primer bulb (A) 3-5 times.
When starting a cold engine, press down the primer fully 3~5 times.
NOTE! The primer is a direct prime system so the primer bubble will not the ll with fuel, this is
normal.
WARNING! Too much presses on primer may cause engine ooded.
When starting a warm engine, the primer does not need to be used. If the engine stops due to a
lack of petrol, rell and press down the primer 3~5 times.
2c Start/Stop Bar Activation
Pull the stop / start bar towards the upper handle.
2c Pull cord handle
With right hand, slowly but rmly pull the starter handle and rope from the pull cord guide until
you feel resistance, then pull briskly. If the engine fails to start after three pulls, repeat the start
process. When the engine starts, return the starter rope to the pull cord guide gently.
NOTE! Clearing a ooded engine
If the engine won’t start after you have operated the starter several times, the engine may be
ooded with excess fuel.
Use following procedure to clear and start a ooded engine.
A. Release the stop / start bar.
B. Remove the spark plug, dry it, and then reinstall it.
NOTE! install the spark plug carefully by hand, to avoid cross-threading. After the plug is seated,
tighten 1/8 to1/4 turn with socket spanner of spark plug to compress the washer.
C. Pull the stop / start bar towards the upper handle.
D. Operate the starter as described above.
2c
Operating the Lawnmower
Step 3 - Mowing
WARNING! Always observe the strictest safety procedures when using the lawnmower.
Carefully read the safety instructions of this manual before using the lawnmower.
Start the engine and allow it run .See ”Step-2 Starting the engine”
To stop the engine, release the stop / start bar.
Keep a rm grip on the upper handle and walk, never run with the mower, be very careful when
mowing uneven or rough ground. Mow across slopes, never up and down. Be careful when
changing the direction of the mower on a slope. Do not use the mower on a steep slope of more
than 15°.
The best result will be achieved if the grass is dry. Wet grass will tend to clog the blade and the
grass collection system. Grass grows at different rates at different time of the year.
Never use the lowest cutting height for the rst cut of the season or in drought conditions. Only
about one thirds of the grass height should be cut.
If the lawnmower will not collect the cuttings efciently, the grass discharge chute may be
blocked. The grass bag may be full, or the underside of the mower deck may be clogged.
Engine start
Engine stop
Step 4 - Self-propelled
To get the mower to self propel press the self propel bar to the upper handle bar to the upper
handle, the clutch for the drive will be closed and the lawnmower will start to move with the
engine running. Release the self-propelled bar in good time to stop the moving lawnmower.
Practice starting and stopping until you are familiar with the propulsion control of the mower.
2b
A
