Engine Component
02-10 79033095 C Rev.

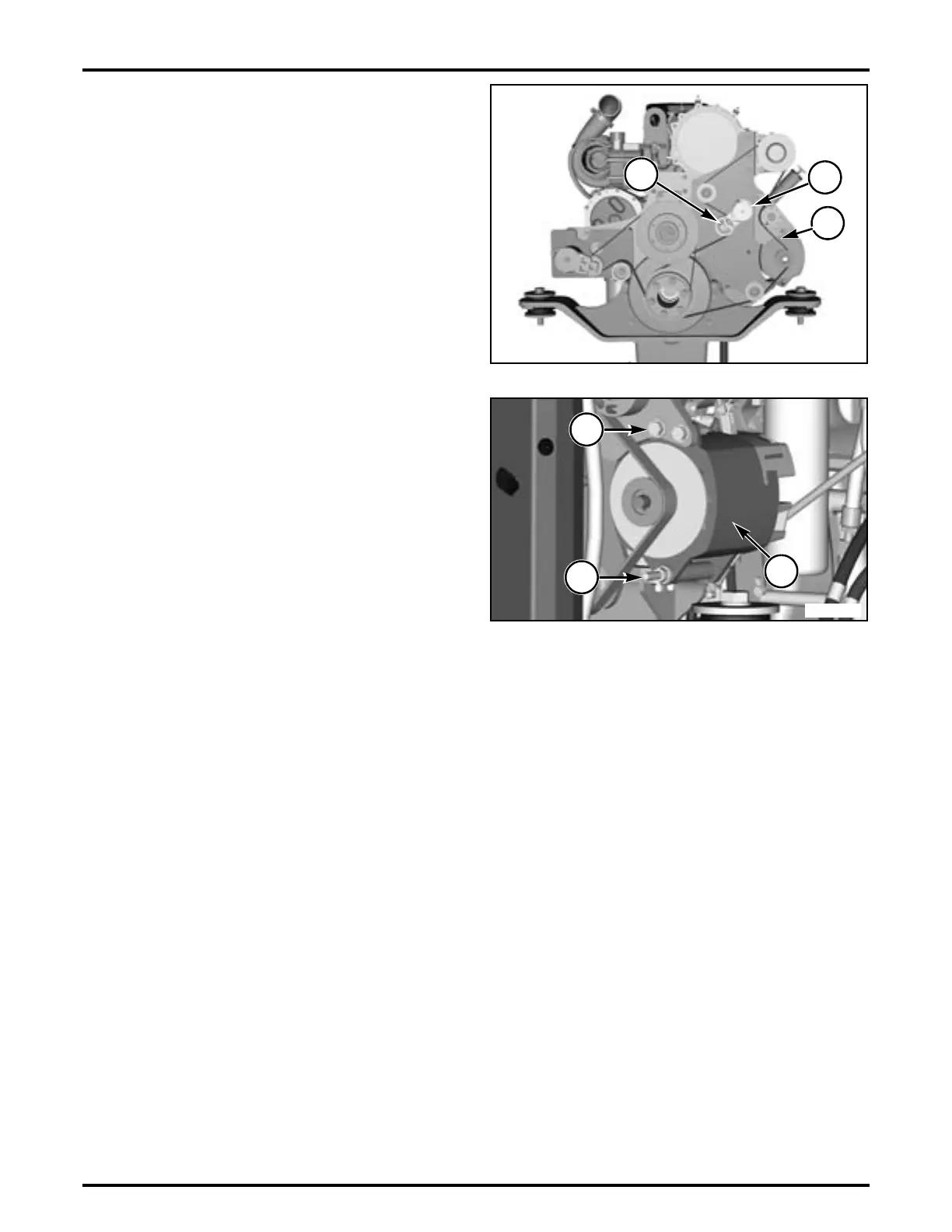

FIG. 16: Serpentine belt removal.
Use a ratchet wrench in the square hole (1) on the belt
tensioner (2) and turn clockwise to relieve belt tension.
Remove serpentine belt (3). Slowly release the belt
tensioner to relax into a neutral position.
m
WARNING: Equipment or parts under
spring tension can cause bodily injury. Use
caution in releasing belt tension.
NOTE: Be sure to allow enough room for the swing of the
ratchet to allow belt tensioner to relax into a
neutral position.
FIG. 17: Remove alternator.
Remove the two top bolts (1) and bottom bolt (2). Remove
alternator (3). The weight of the alternator is
approximately 27 kg (60 lb).
FIG. 16
FIG. 17
