Challenger MT865C User Manual

Engine Component
02-16 79033095 C Rev.

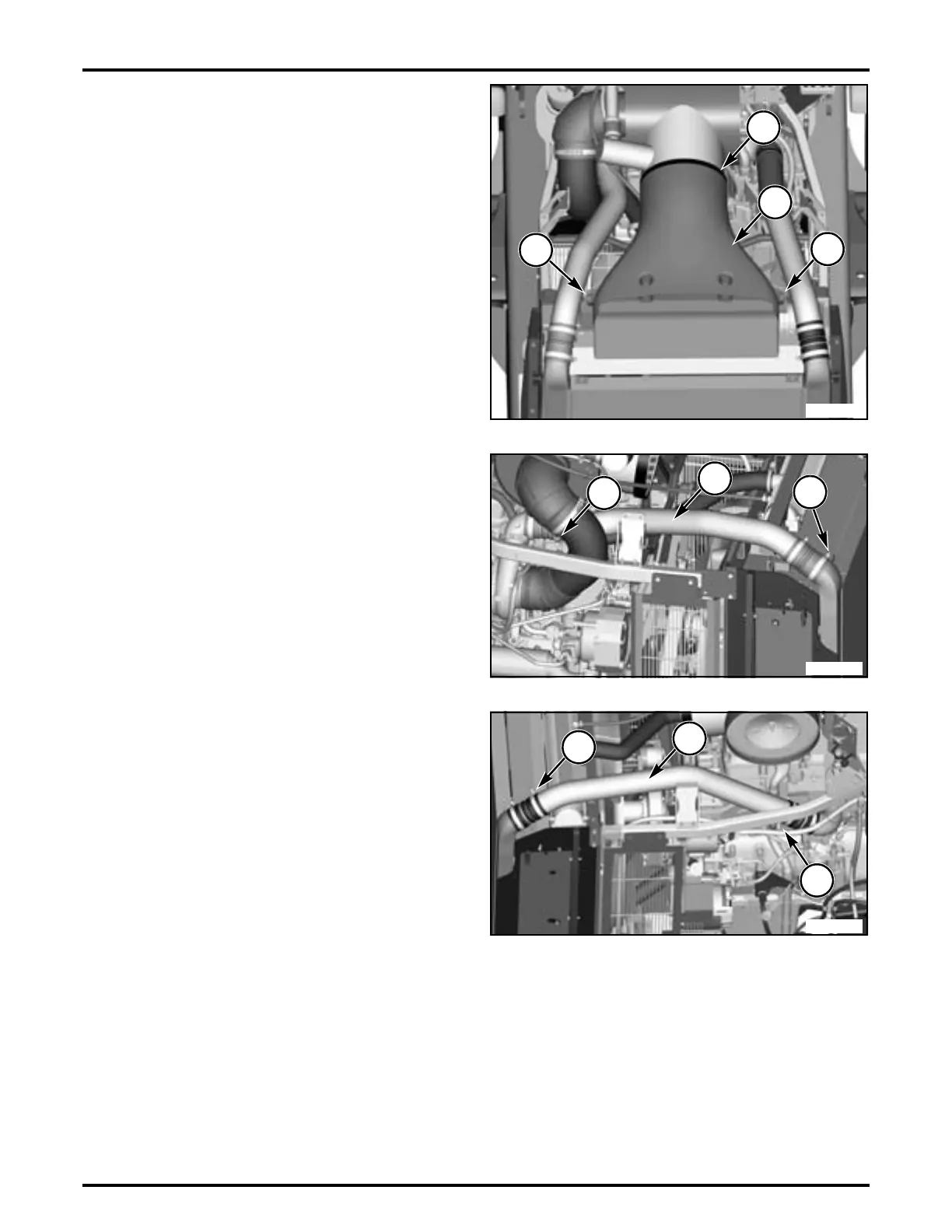

FIG. 29: Remove air intake.
Remove bolts (1).
Slide air intake (2) forward. Carefully pull it out of its seal
(3).
FIG. 30: Remove right side charge air tube.
Clean dirt off of charge air tube (1) and its connections to
prevent dirt entering the system.
Loosen nuts (2) on hose clamps.
Remove charge air tube (1).
IMPORTANT: Plug turbo hole and hole in the charge air
cooler with clean cloth towels to prevent dirt
entering the system.
FIG. 31: Remove left side charge air tube.
Clean dirt off of charge air tube (1) and it connections to
prevent dirt entering the system.
Loosen nuts (2) on hose clamps.
Remove charge air tube (1).
IMPORTANT: Plug intake hole and hole in the charge air
cooler with clean cloth towels to prevent dirt
entering the system.
FIG. 29
1
1
2
3
N012606006
FIG. 30
2
2
1
N012606007
FIG. 31
2
2
1
N020606001
