Engine Component
02-18 79033095 C Rev.

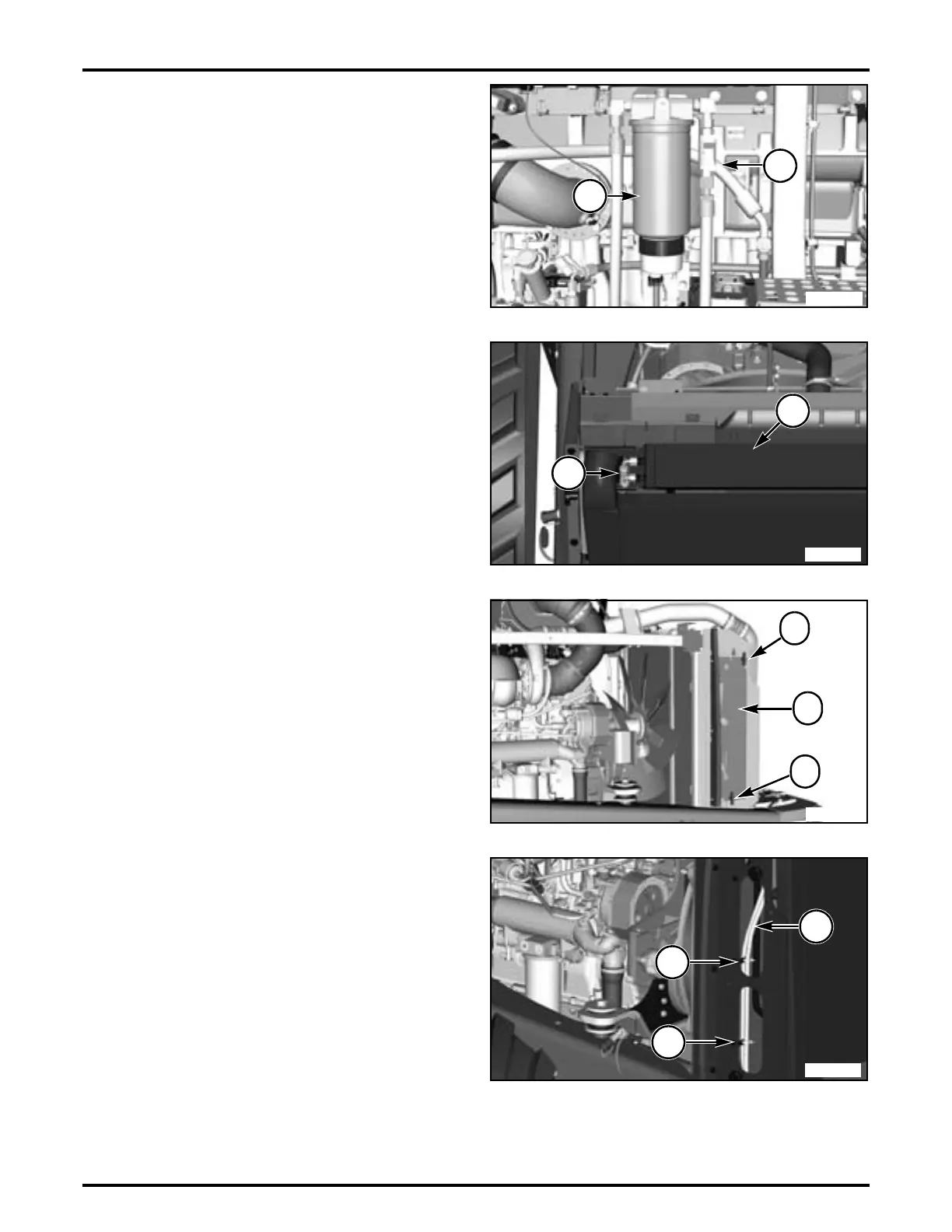

FIG. 34: Fuel shut off.
At the primary fuel filter / water separator (1) on the left
side of the engine, turn shut off valve handle (2) 90
degrees clockwise. Shut off valve handle (2) should be
perpendicular to the valve.
FIG. 35: Remove fuel lines (1) from fuel cooler core (2).
Plug hoses to prevent fuel loss.
NOTE: Mark hoses to ensure that hoses are connected
to original location.
FIG. 36: Remove cover plate.
Remove knobs (1) and remove cover plate (2).
FIG. 37: Remove plastic cable straps (1) from fuel lines
(2) and fasten out of the way.
FIG. 34
FIG. 35
FIG. 36
FIG. 37
