General Information

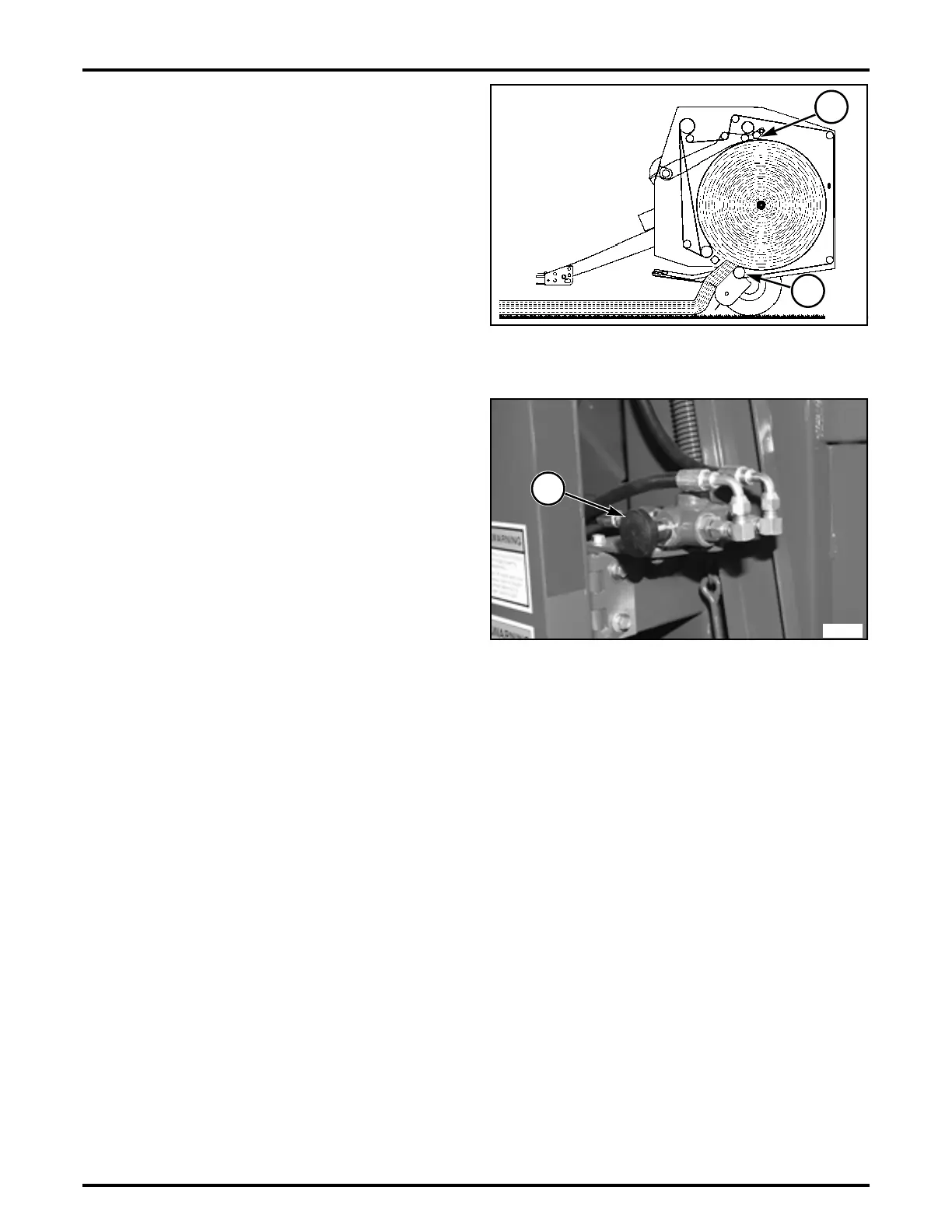

FIG. 21: The illustration shows the full size bale. The
bale density rolls (1) have moved upward, to increase the
size of the bale chamber. The bale is on the tailgate
carrier roll (2).
The bale must now be wrapped with twine and unloaded.
Tailgate Lockout Valve
FIG. 22: When the tailgate is raised for any maintenance
or service work, push the lockout valve (1) into the
LOCKED position to prevent the tailgate from being
lowered. The tailgate can only be lowered when the
tailgate lockout valve is released (pulled out).
FIG. 21
FIG. 22
