Challenger RB452 - Key Baler Components

01-14 79033773 A Rev.
General Information
Baler Components

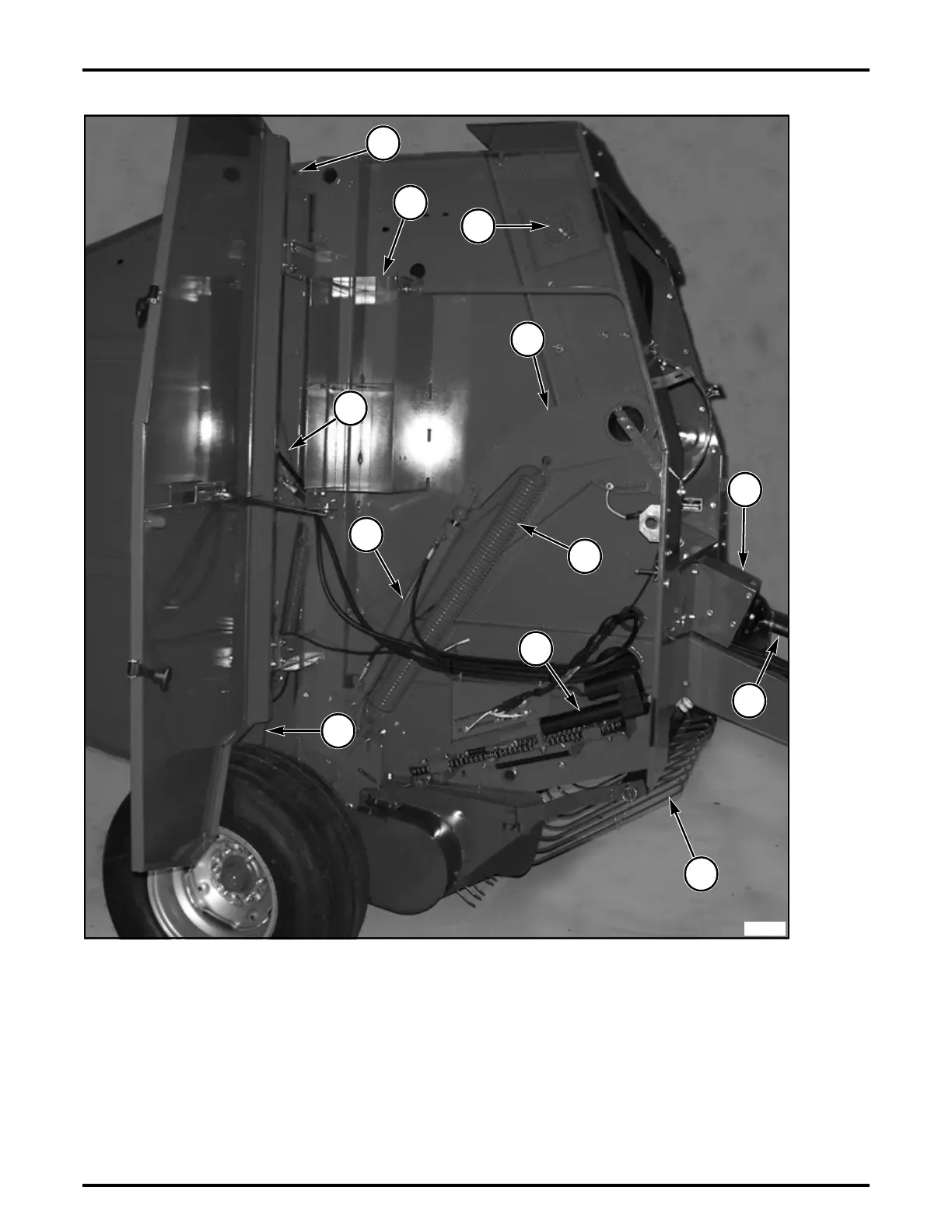

FIG. 23: Right-hand side of the baler.
(1) Twine arm actuator
(2) Windguard
(3) Tailgate latch strap
(4) Tailgate hydraulic cylinder
(5) Tailgate hinge pivot point
(6) Right-hand twine box
(7) Drive roll shaft
(8) Forming belts tensioning arm
(9) Forming belts tensioning cylinder
(10) Forming belts tensioning spring
(11) Implement driveline
(12) Slip clutch
FIG. 23
5
6
7
8
4
3
2
10
1
9
11
12
Q401215
