5 . MAINTENANCE AND ADJUSTMENTS
5.10
Challenger MT500B EU
CAUTION: All the maintenance operations
must be carried out with the engine stopped,
unless otherwise specified.
5.6 - LUBRICATION

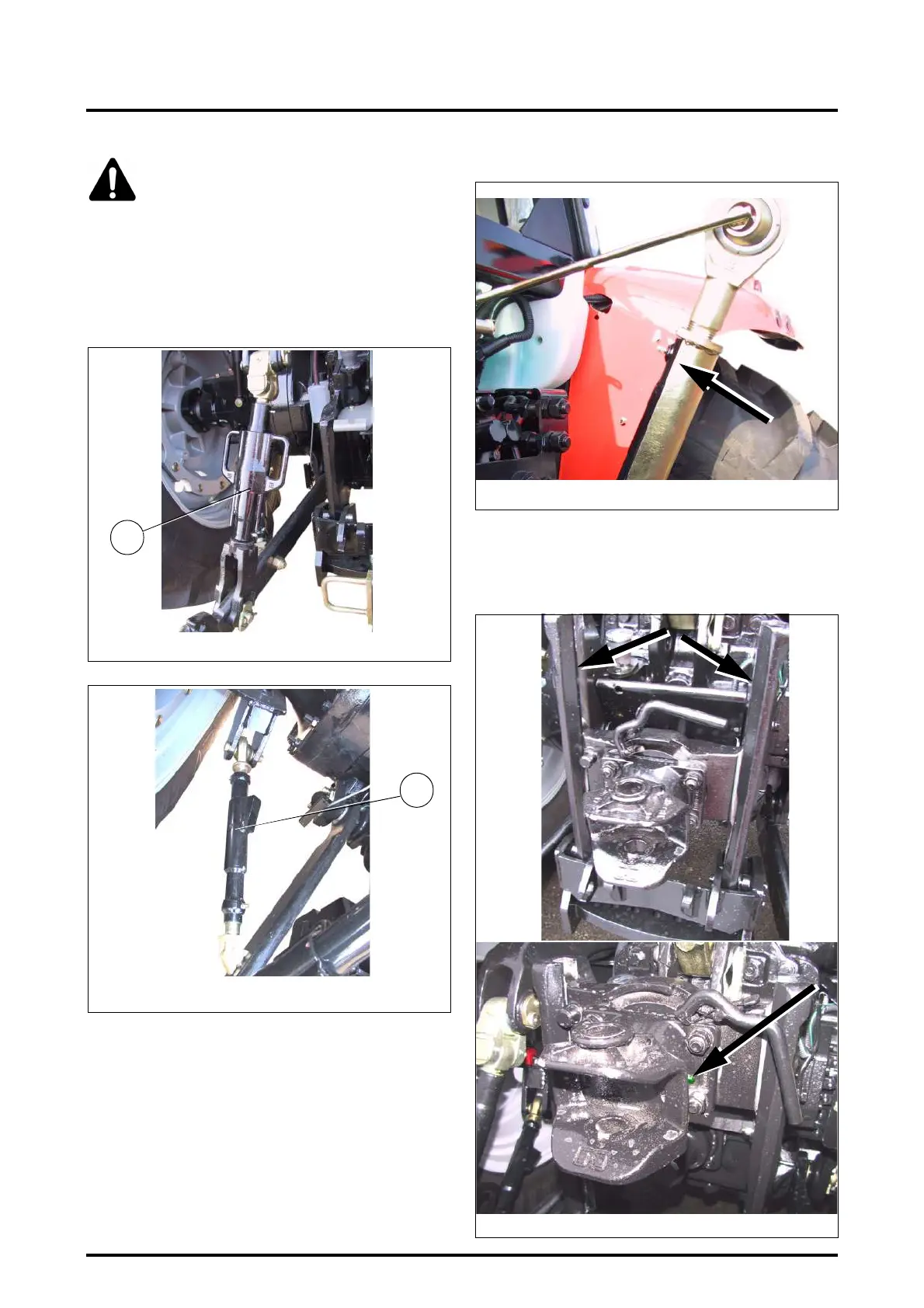

5.6.1 - Lubrication points
Servicing schedule according to the Service Guide:
1. Lift rods Ref. 1 (Fig. 1) (6 grease nipples)
2. Stabilisers Ref. 2 (Fig. 2) (2 grease nipples)
3. 3
rd
point top link (2 grease nipples)
4. Clevis hitch (1 grease nipple)
Also lubricate the inside of the vertical sliderails with mo-
lybdenum grease (Mo S2) as indicated by M1225 speci-
fications.
Fig. 1
Z2-493-05-03
1
Fig. 2
Z2-492-05-03
2
Z2-491-05-03
Fig. 3
CE-0 04-01-05
Fig. 4
CE-010 -01- 05
