I-PRGE-32 IOM PROTECTA LED EM IEx (English) issue 07 05/05/2020
3

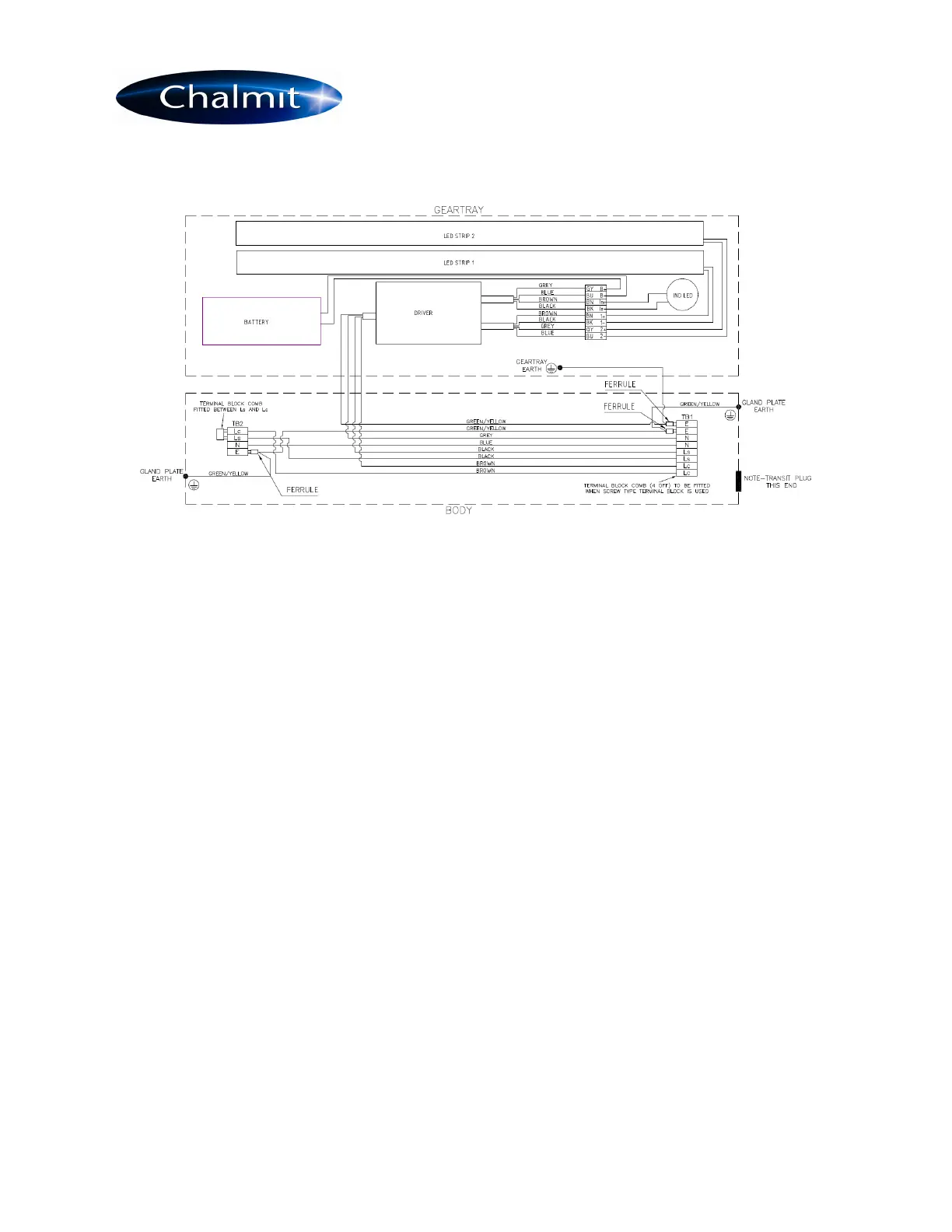

Typical wiring diagram shown for information only, some models may differ.
3.1 General
These instructions should be read fully and carefully before attempting to install the luminaire. For details of
servicing operations, opening etc. see section 4.0.
Copies of these instructions should be held in a safe place for future reference. It is the responsibility of the installer to
ensure that the apparatus selected is fit for its intended purpose and that the installation, operation and maintenance of the
apparatus complies with applicable regulations, standards or codes of practice. Installation should be carried out in
accordance with ABNT NBR IEC 60079-14 or with a local hazardous area code of practice, whichever is appropriate.
Risk of electrostatic discharge:
Clean diffuser only with damp cloth
Avoid mounting near fast moving streams of air
Any specific installation instructions must be referred to. In the UK the requirements of the Health and Safety at Work Act
must be met and electrical work associated with this product must be in accordance with the "Manual Handling Operations
Regulations" and "Electricity at Works Regulations 1989". Disposal instructions should be complied with. The luminaires
should be considered Class 1 to EN 60598 and effectively earthed. Certification details on the rating plate must be verified
against the application requirements before installation. The information in this leaflet is correct at the time of publication.
The company reserves the right to make specification changes as required without notice.
Luminaires are shipped with the battery pack disconnected, connection must be made on initial installation. See 5.8.
3.2 Tools
3mm and 4mm flat blade screwdriver and large crosshead screwdriver. Suitable spanners for installing cable glands. Pliers,
knife, wire strippers/cutters.
3.3 Mounting
Luminaires should be installed where access for maintenance is practical and in accordance with lighting design information.
For horizontal mounting on handrails Chalmit recommend mounting the luminaire with the clamp bar uppermost therefore
allowing the diffuser and gear tray to swing down when necessary. Refer to the note in 3.1 concerning electrostatic charge.
The standard suspension is via two M8 x 12mm deep blind tapped holes in metal bushes in the top of the body, the
recommended torque for the fixing bolts is 10-15Nm. Various adaptors, pole clamps and suspension brackets are available to
order.
