MJ3800/R
White Grey
w h it e w ires
t w isted toget her
Quick-Connect Terminals
3. To insert or release
wire, push in tab with
screwdriver tip
1. Strip wire
(15 mm)
2. Twist like colored
wires together
Grey
Red
White
7/16" (10 mm)

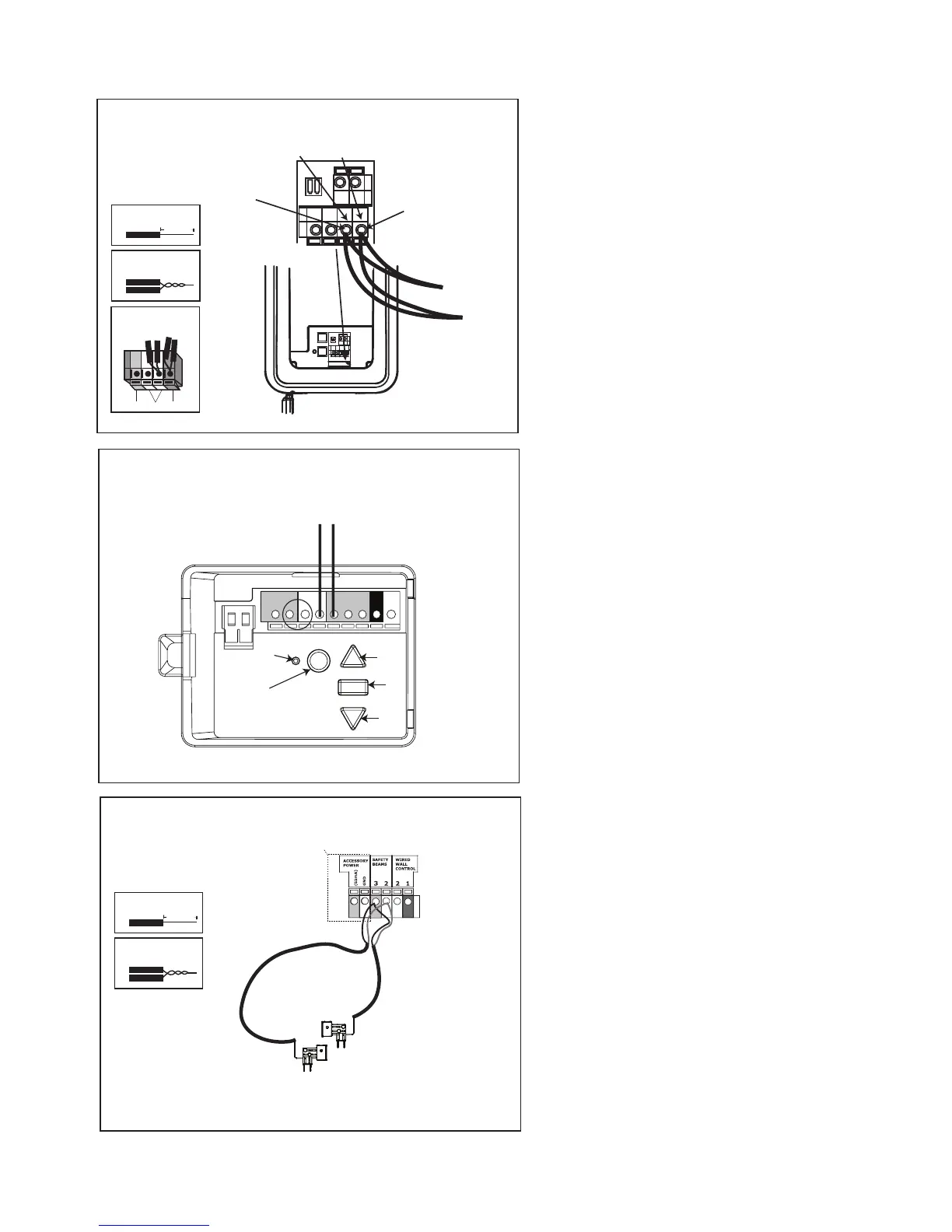

MJ3800/R connections
Gently lift the cover flap at the base of the motor
to access the terminals. Strip all wires back about
15mm then twist the two white wires and the two
black wires together.
Use a small screw driver or pen to hold down the
spring terminals, insert the black wires into the grey
terminal, then terminate the white wires into the
white terminal.
Wiring Connections Merlin Professional
CyclonePro MT120EVO / Tiltmaster MT120EVO /
PowerAce MT60EVO connections (Chamberlain DIY
PowerLift CS60EVO / PowerLift Plus CS100EVO)
Locate the terminals on the back of the unit. Strip
all wires back about 15 mm then twist the two white
wires and the two black wires together.
Use a small screwdriver or pen to hold down the spring
terminals, insert the black wires into the grey terminal (3),
then terminate the white wires into the white terminal (2).
30 V DC
+ -
0 1 2 2 3 4 5 6 7
UP
DOWN
PROG
LEARN
(YELLOW)
INDICATOR
LED
White x 2
MT120EVO/ MT100EVO/ MT60EVO
CS60EVO/ CS100EVO
OverDrive MRC950EVO / SilentDrive MR850EVO /
QuietDrive MR650EVO (Chamberlain DIY HandyLift
Deluxe CR650EVO)
Gently lift the cover on the base of the motor to
access the terminals. Strip all wires back about
15mm then twist the two white wires and the two
black wires together.
Use a small screwdriver or pen to hold down the spring
terminals, insert the black wires into the grey terminal,
then terminate the white wires into the white terminal.
12V DC
OverDrive MRC950EVO &
SilentDrive MR850EVO ONLY
Black x 2
1. Strip wire
(15 mm)
2. Twist like colored
wires together
7/16" (10 mm)
MRC950EVO / MR850EVO / MR650EVO / CR650EVO
black wires
twisted
together
Note: This model may need to be manually initialised.
Please refer to your product handbook.
