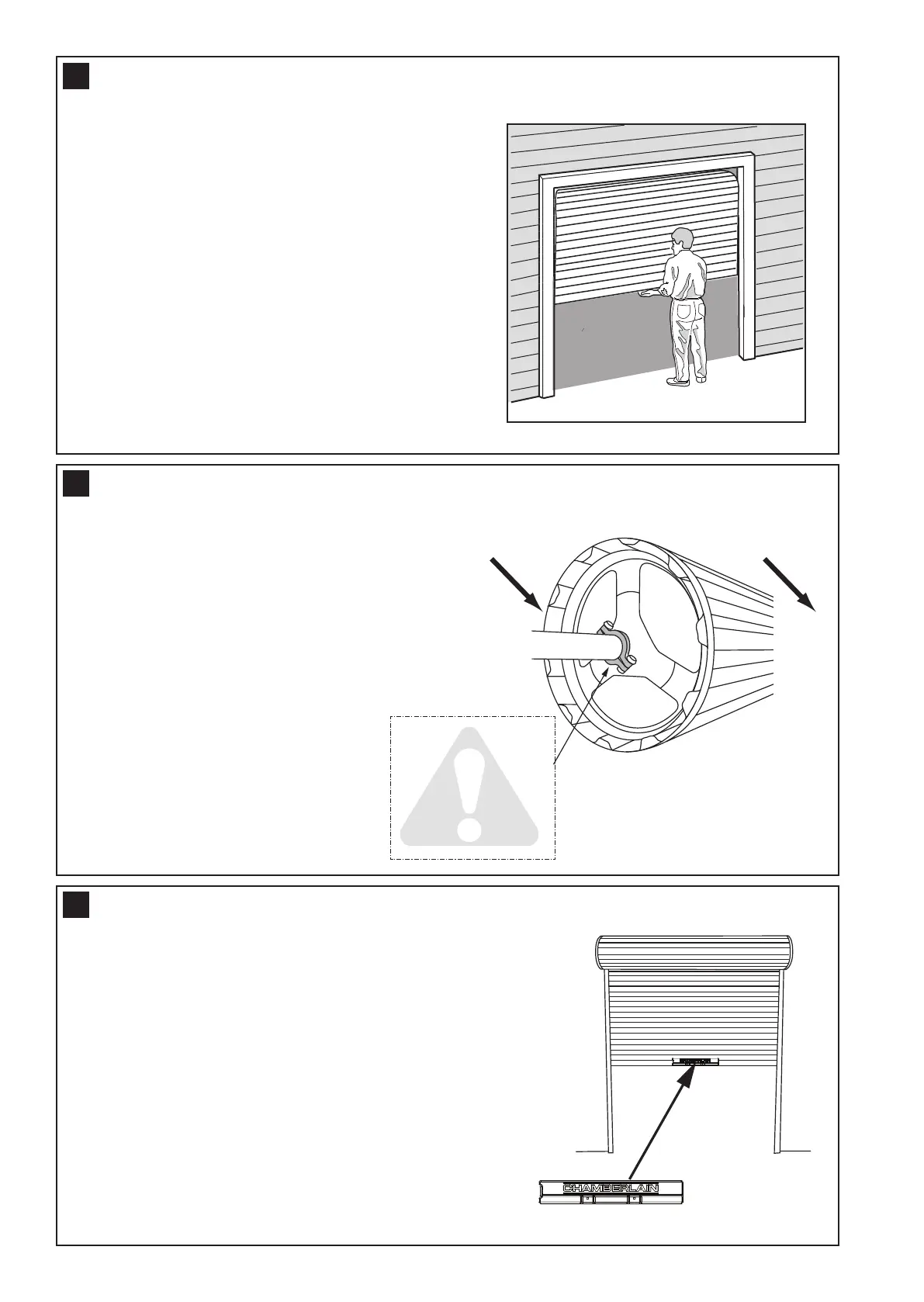

TESTING THE DOOR
Complete the following test to ensure your door is well
balanced, and not sticking or binding:
• Disable all locks and remove any ropes connected to
the garage door.
• Lift the door to about halfway and then release it. The
door should remain suspended entirely by its spring.
• Raise and lower the door to determine if there are any
sticking or binding points.
• If your door does not hold in place or it binds or sticks,
call a qualified door technician before installing the opener.
Non opener side Opener side
• Install stop bracket collar on the opposite end to
where the opener is to be installed.
• Fit the stop bracket hard against the boss of the door
drum. Ensure the U-bolt holding the door axle to the
door bracket is tightly secured.
INSTALLING THE STOP COLLAR
5
INSTALLING THE WEIGHT BAR (PROVIDED)
6
SAFETY CHECK!
Is stop collar installed?
YES
Proceed to the next step
NO
Install the stop collar
before proceeding
4
3
• Place the weight bar in the centre of the door.
• If the door curtain does not have a lifting handle you
will need to drill two 5.5mm holes through the two
marked positions, then place the weight bar on the
inside of the door.
• Use the 5mm bolts, washers and nuts (provided) to
fasten the weight bar in place.
NOTE: If the door has a lifting handle, remove the
handle, nuts & bolts. Place weight bar over the
handle holes, insert extended bolts through the
weight bar & fasten handle back in place.
