Installation
STEP 13 Install the Protector System
®
(continued)

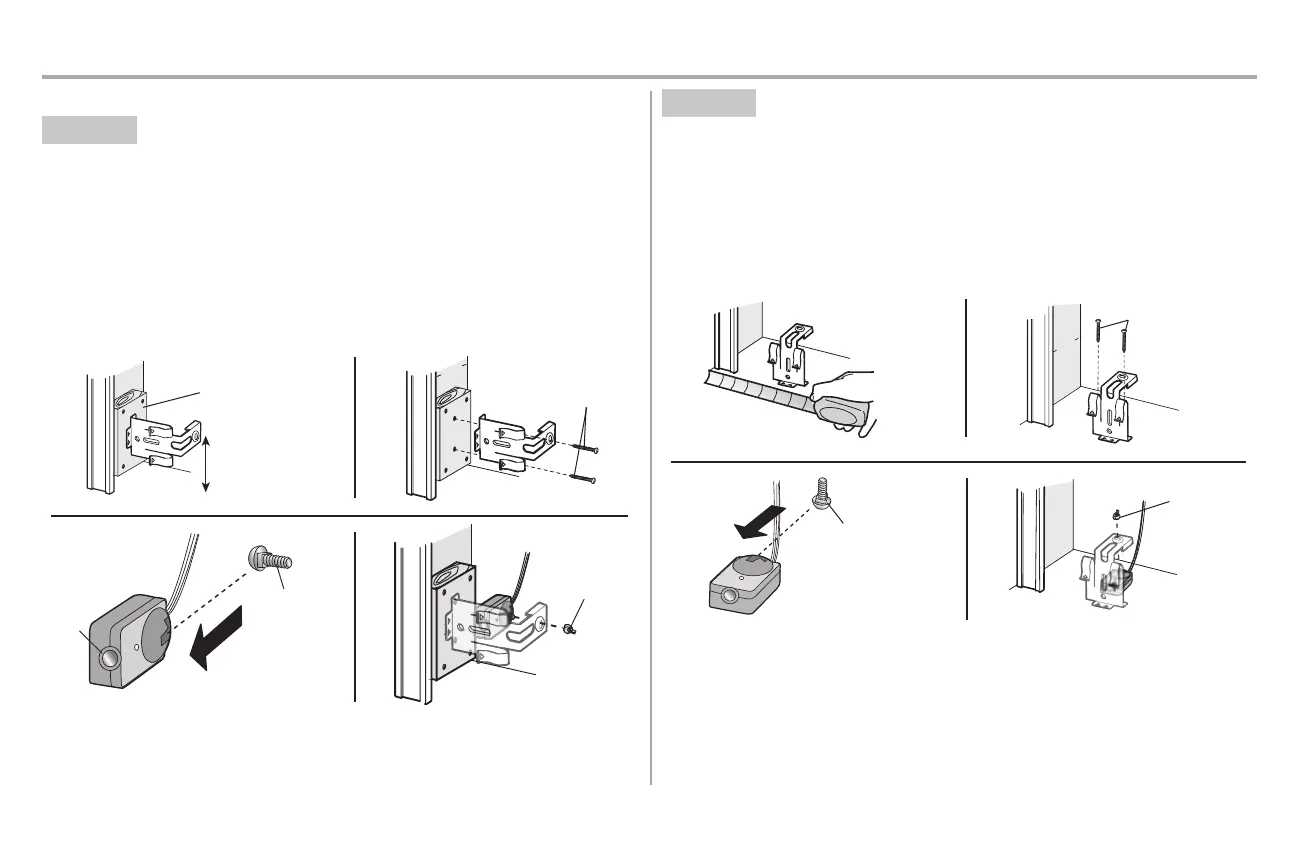

OPTION B WALL INSTALLATION
If additional clearance isneeded an extension bracket(not provided) or wood blockscan be used. Make
sure each bracket has the same amount of clearance so they will align correctly.
1. Position the sensor bracket againstthe wall with the curved arms facing the door. Make sure
there isenough clearance for the beam to be unobstructed.Mark holes.
2. Drill 3/16 inch pilotholesfor each sensor bracket and attach the sensor brackets to the wall using
lag screws(not provided).
3. Slide the carriage boltinto the sloton each sensor.
4. Insertthe boltthrough the hole in the sensor bracket and attach with the wing nut. The lenses on
both sensors should point toward each other. Make sure the lensis not obstructed by the sensor
bracket.
(Not provided)
No more than
6 inches (15 cm)
1
2
Inside
G
arage
Wall
(Not provided)
Lens
Carriage Bolt
1/4"-20x1/2"
Wing Nut
1/4"-20
3
4
OPTION C FLOOR INSTALLATION
Use an extension bracket (not provided) or wood blockto raise the sensor bracket if needed.
1. Carefully measure the position of both sensor brackets so they will be the same distance from the
wall and unobstructed.
2. Attach the sensor brackets to the floor using concrete anchors (not provided).
3. Slide the carriage boltinto the sloton each sensor.
4. Insertthe boltthrough the hole in the sensor bracket and attach with the wing nut. The lenses on
both sensors should point toward each other. Make sure the lensis not obstructed by the sensor
bracket.
I
nsid
e
G
arage
Wa
l
l
(Not provided)
1 2
Carriage Bolt
1/4"-20x1/
2"
Wing Nut
1/4"-20
3
4
