28

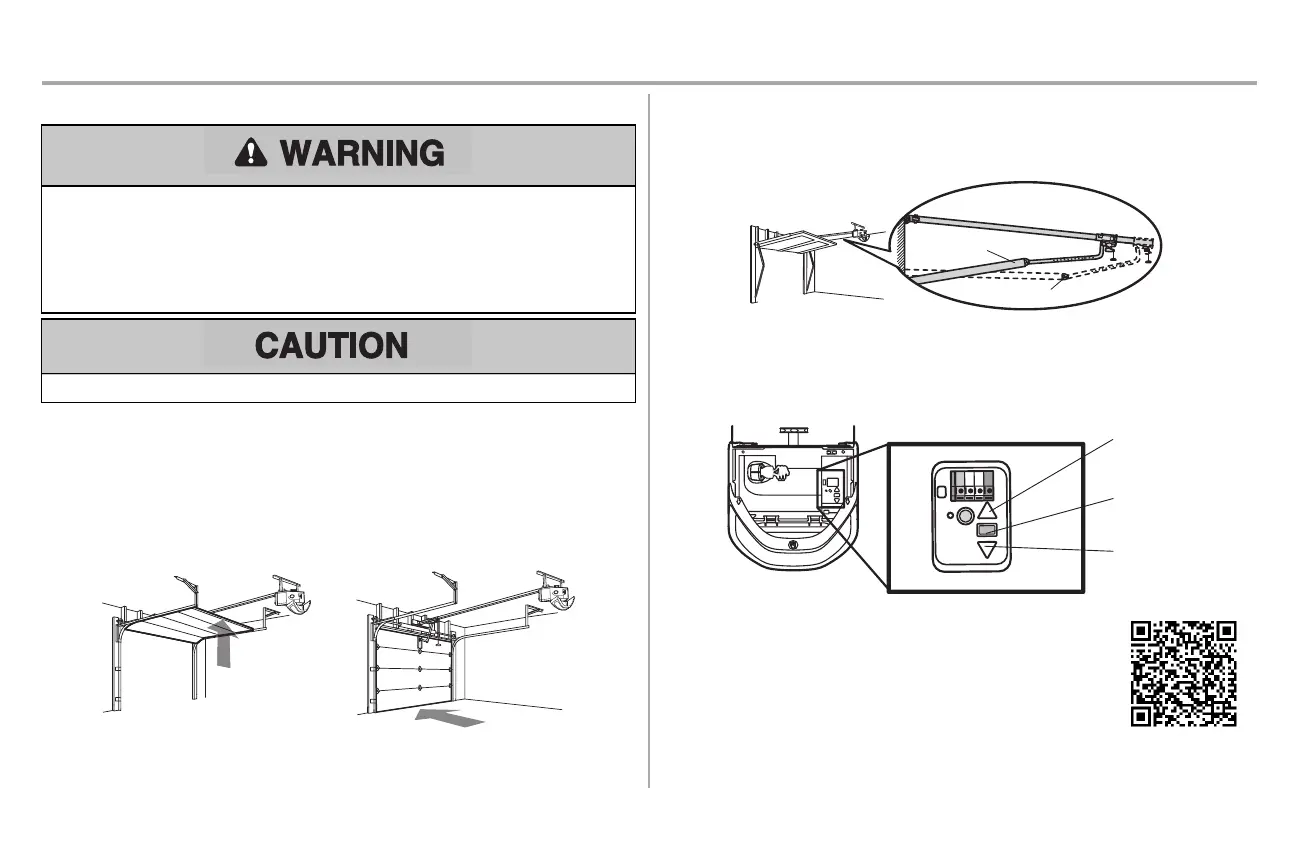

Adjustments
Introduction
Withouta properlyinstalled safetyreversal system,persons (particularly small children) could be
SERIOUSLY INJURED or KILLED bya closing garage door.
l Incorrectadjustment of garage door travel limits will interfere with proper operation of safety
reversal system.
l After ANY adjustments are made, the safetyreversal system MUST be tested. Door MUST
reverse on contact with 1-1/2" (3.8 cm) high object(or 2x4 laid flat) on floor.
To prevent damage to vehicles,be sure fully open door provides adequate clearance.
Your garage door opener isdesigned with electroniccontrols to make setup and adjustments easy. The
adjustments allow you to program where the door will stop in the open (UP) and close (DOWN) position.
The electronic controls sense the amount offorce required to open and close the door. The force is
adjusted automatically when you program the travel.
NOTE: If anything interferes with the door’s upward travel it will stop. If anything interferes with the door’s
downward travel, it will reverse.
One-Piece Doors Only
When setting the UP travel for a one-piece door ensure that the door does not slant backwards when
fully open (UP). Ifthe door is slanted backwards this will cause unnecessary bucking and/or jerking when
the door is opening or closing.
Programming Buttons
The programming buttonsare located on the leftside panel ofthe garage door opener and are used to
program the travel. While programming, the UP and DOWN buttons can be used to move the door as
needed.
UP Button
Adjustment
Button
DOWN Button
PROGRAMMING BUTTONS
To watch a short instructional video on how to program the travel on your new
garage door opener use your smartphone to read the QR Code:
