5
Assembly

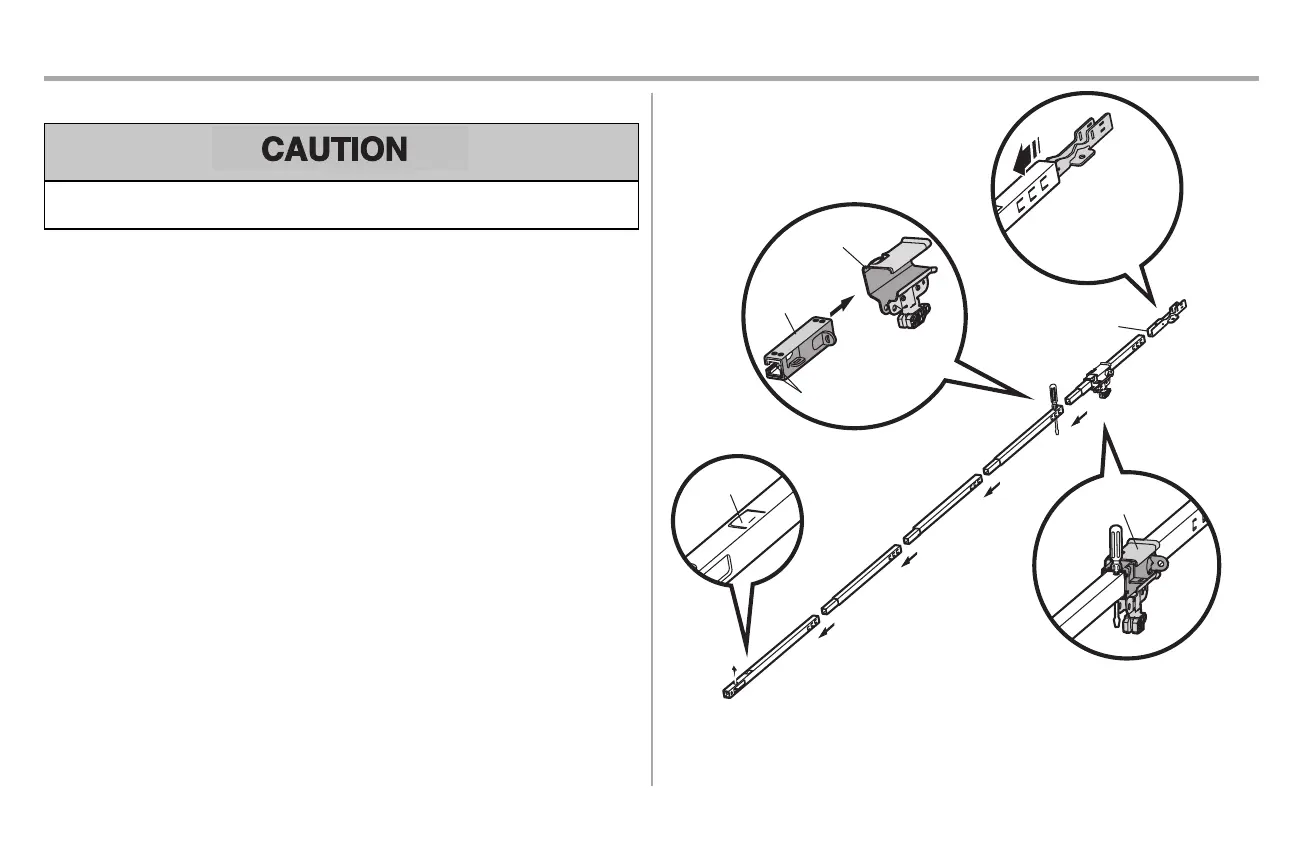

STEP 1 Assemble the rail and install the trolley
To prevent INJURY from pinching, keep hands and fingers away from the joints while assembling the
rail.
To avoid installation difficulties, do not run the garage door opener until instructed to do so.
The front rail has a cut out “window” at the door end. The rail tab MUST be on top of the rail when
assembled.
1. Remove the straight door arm and hanging bracket packaged inside the front rail and setaside
for Installation Step 5 and 9. NOTE: To prevent INJURY while unpacking the rail carefully remove
the straight door arm stored within the rail section.
2. Align the rail sections on a flatsurface as shown and slide the tapered ends into the larger ones.
Tabs along the side will lockinto place.
3. Place the motor unit on packing material to protectthe cover,and rest the back end of the rail on
top. For convenience,put a supportunder the front end of the rail.
4. Asa temporary stop,inserta screwdriver into the hole in the second rail section from the motor
unit,as shown.
5. Check to be sure there are 4 plastic wear padsinside the inner trolley.If they became loose
during shipping, check all packing material. Snap them back into position as shown.
6. Slide the trolley assemblytoward the screwdriver as shown.
7. Slide the rail onto the “U” bracket, until itreaches all the stops on the top and sides of the “U”
bracket.
To garage
door opener
(TO MOTOR UNIT)
Front Rail
Section
(TO DOOR)
“U” Bracket
Outer Trolley
Inner Trolley
Wear Pads
SLIDE TO STOPS
ON TOP AND
SIDES OF
“U” BRACKET
