Installation
STEP 16 Aligning the safety reversing sensors
The door will not close if the sensors have not been installed and aligned correctly.
When the light beam is obstructed or misaligned while the door is closing, the door will reverse and the
garage door opener lightswill flash ten times.Ifthe door is already open, it will not close.

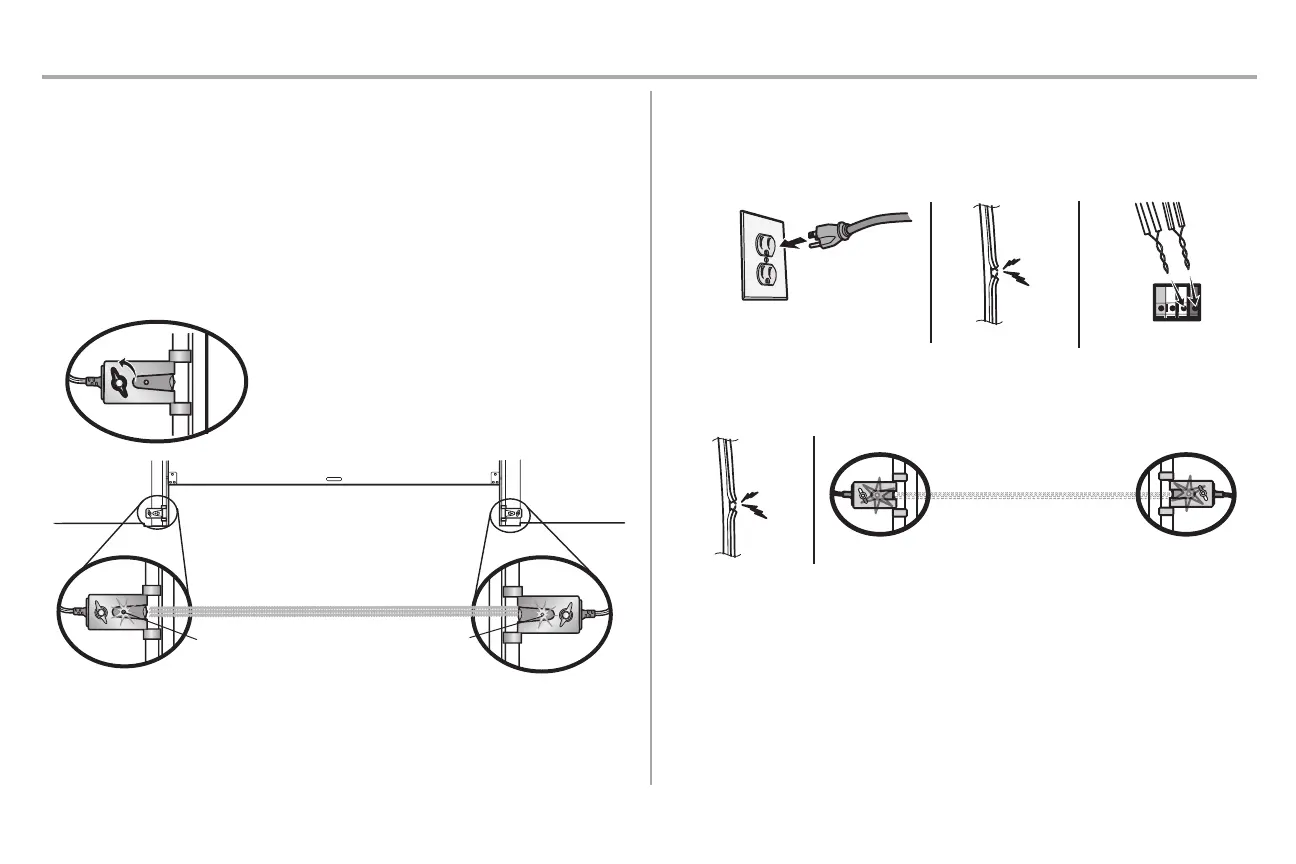

1. Check to make sure the LEDsin both sensorsare glowing steadily.The LEDsin both sensors will
glow steadily if they are aligned and wired correctly.
The sensors can be aligned by loosening the wing nuts,aligning the sensors,and tightening the wing
nuts.
Green LED
Amber LED
If the receiving sensor is in direct sunlight,
switch it with sending sensor so it is on the
opposite side of the door.
(invisible light beam)
SENDING SENSOR RECEIVING SENSOR
IF THE AMBER LED ON THE SENDING SENSOR IS NOT GLOWING:
1. Make sure there is power to the garage door opener.
2. Make sure the sensor wire is not shorted/broken.
3. Make sure the sensor hasbeen wired correctly: white wires to white terminal and white/black
wires to greyterminal.
IF THE GREEN LED ON THE RECEIVING SENSOR IS NOT GLOWING:
1. Make sure the sensor wire is not shorted/broken.
2. Make sure the sensors are aligned.
STEP 17 Ensure the door control is wired correctly
If the door control has been installed and wired correctly,the command LED on the Multi-Function
Control Panel will blink.
