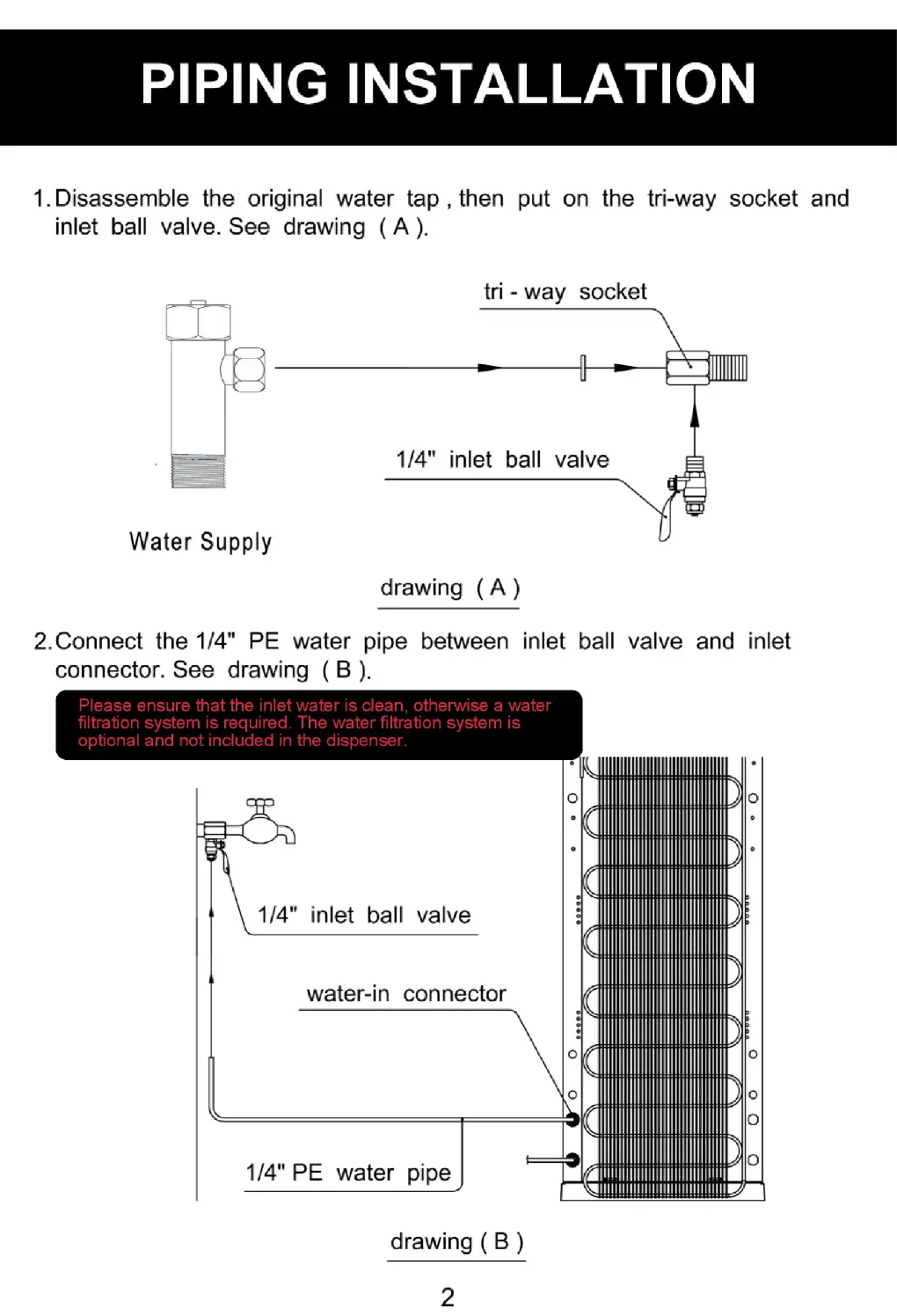

PIPING
INSTALLATION
1.Disassemble
the
original
water
tap
,
then
put
on
the
tri-way
socket
and
inlet
ball
valve.
See
drawing
(A).
tri-
way
socket
1/4"
inlet
ball
valve
Water
Supply
drawing
(A)
2.Connect
the
1/4"
PE water
pipe
between
inlet
ball
valve
and
inlet
connector.
See
drawing
(B
).
1/4"
inlet
ball
valve
water-in
connector
1/4"
PE
water
pipe
drawing
(B
)
2
