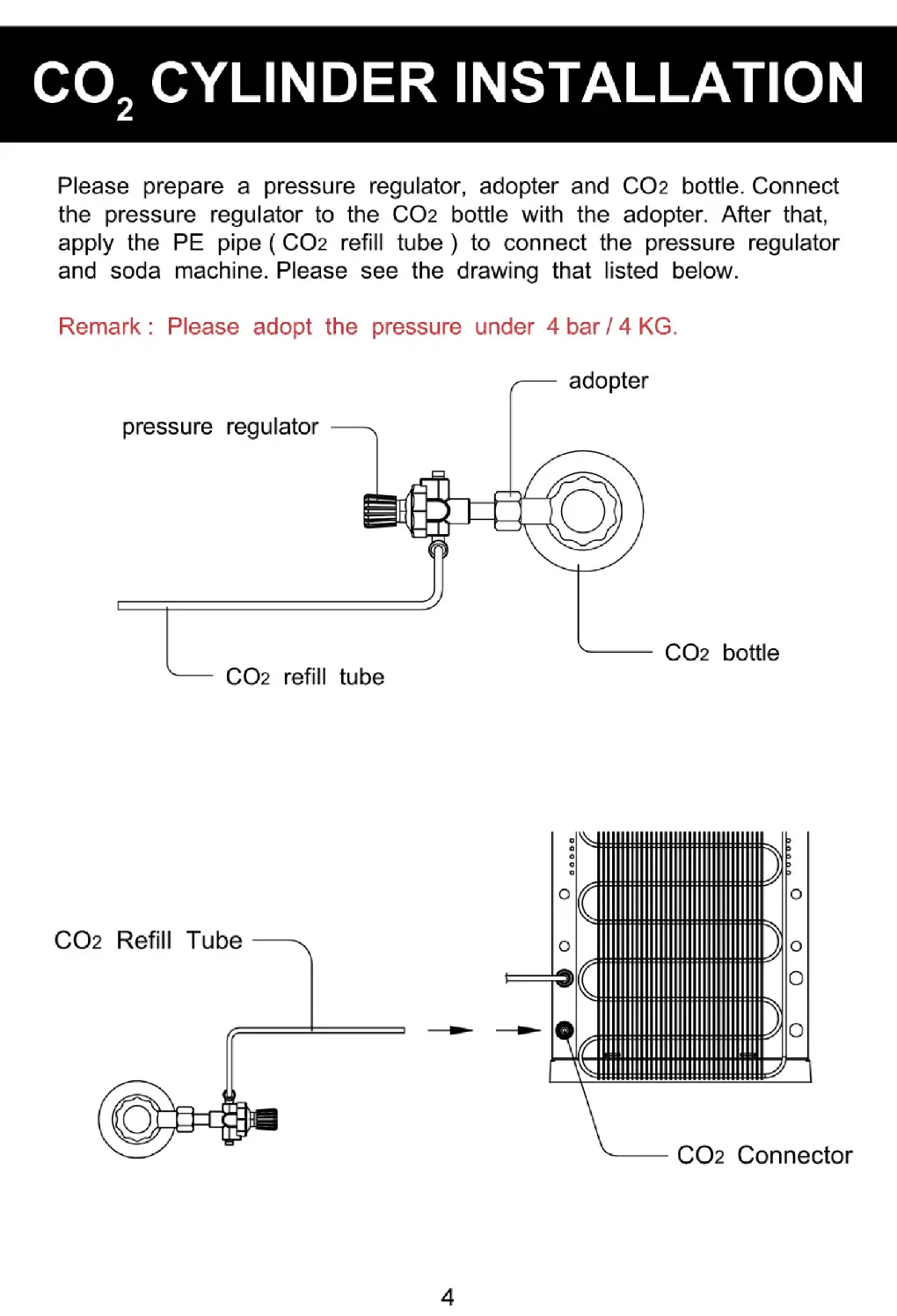

CO, CYLINDER INSTALLATION
Please prepare a pressure regulator, adopter and CO2 bottle. Connect
the pressure regulator to the COz bottle with the adopter. After that,
apply the PE pipe (COz2 refill tube ) to connect the pressure regulator
and soda machine. Please see the drawing that listed below.
Remark: Please adopt the pressure under 4 bar /4 KG.
adopter
pressure regulator
COz2 bottle
CO? refill tube
COz2 Refill Tube —*>
CQ2 Connector
