CONTROLS AND FEATURES
8
CONTROLS AND FEATURES

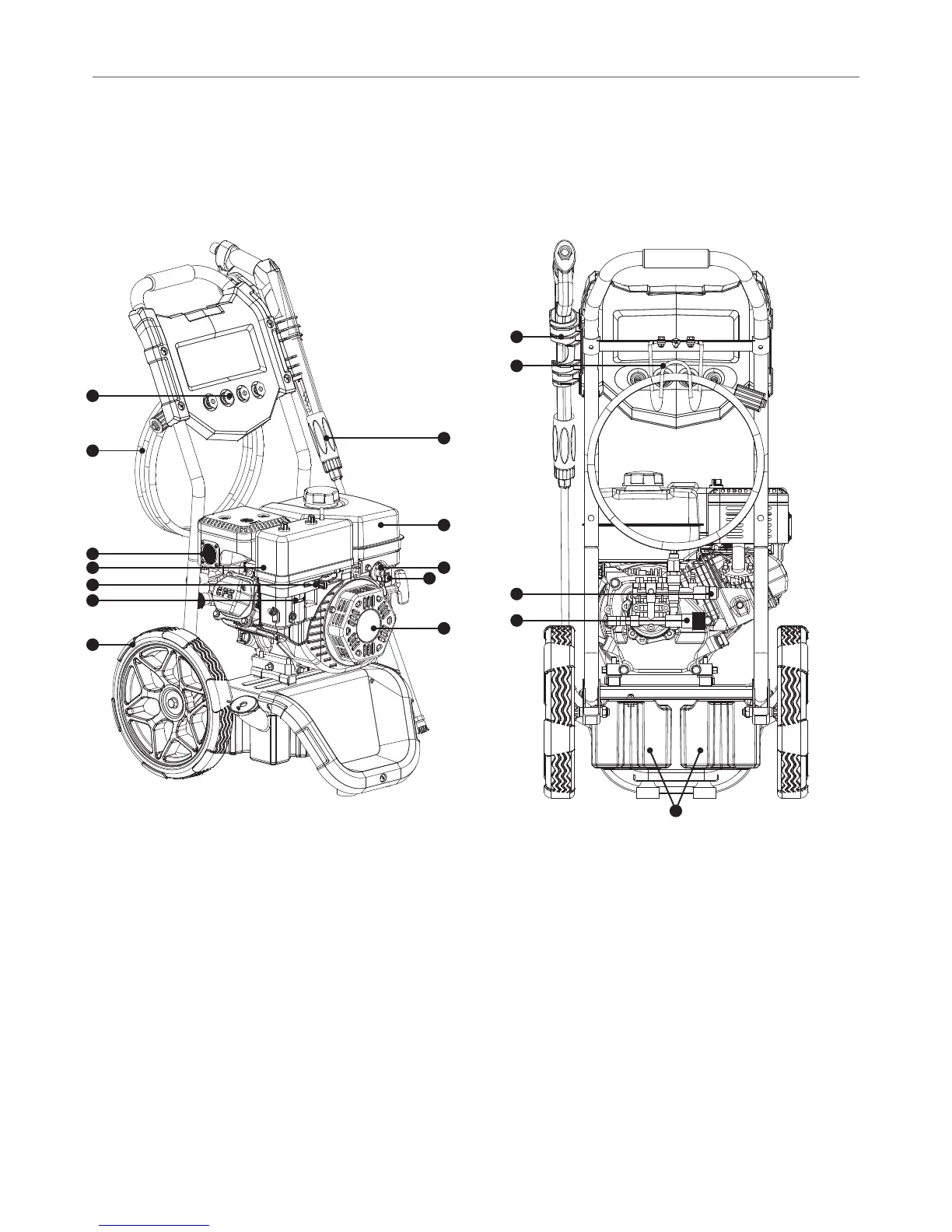

Read this operator’s manual before operating your pressure washer. Familiarize yourself with the location and function of the controls
and features. Save this manual for future reference.
1. Nozzles
2. High Pressure Hose
3. Muffler
4. Air Filter – Protects the engine by filtering dust and debris
from the intake air.
5. Throttle Lever – Used to control the engine speed.
6. Choke Lever – Used to start the engine when cold.
7. 30.5 cm (12 in.) Never Flat Tires
8. Recoil Starter – Used to manually start the engine
9. Engine Switch
10. Fuel Valve Knob – Used to turn fuel supply on and off to
engine
11. Fuel Tank – 3.4 L (0.9 gal.)
12. Trigger Gun Assembly – Gun and spray wand
13. Trigger Gun Holder – Used to hold gun when assembled
and not in use
14. High Pressure Hose Hanger – Used to hold high pressure
hose when not in use.
15. High Pressure Hose Outlet
16. Garden Hose Inlet
17. Detergent Tanks – 1.7 L (0.5 gal.)
