Champion 41532 - Power Panel Layout

REV 41532-20130219 6
41532 ENGLISH

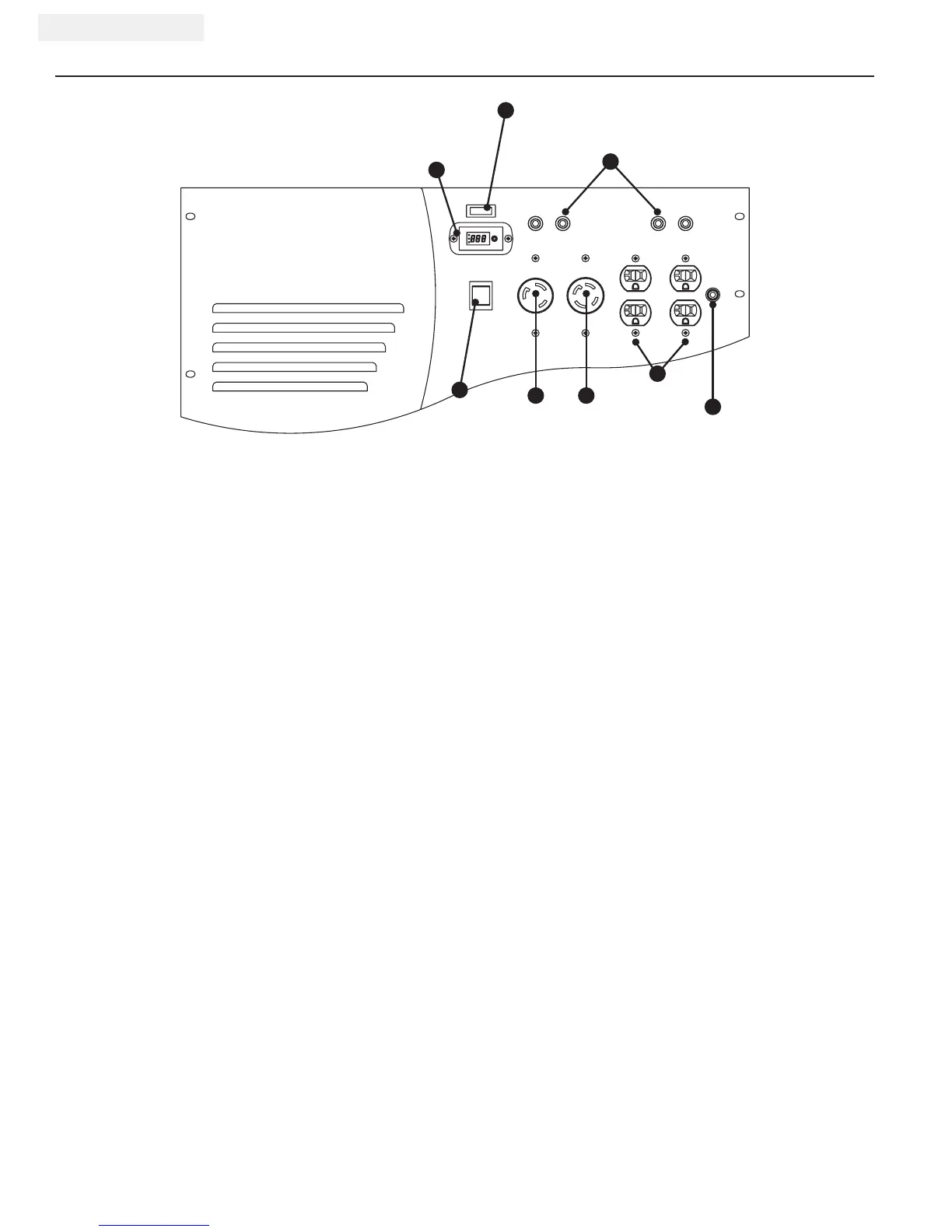

Power Panel
1
65
8
3
(1) Intelligauge™ – Three mode digital meter for
displaying running hours, voltage and hertz.
(2) Battery Switch – Enables/disables starting
electrically – via remotely or by Ignition Switch.
(3) Circuit Breakers – Protects the generator against
electrical overloads. Push to reset breaker.
(4) Ignition Switch – Used to start or stop the
generator.
(5) 120 Volt AC, 30 Amp Twist-Lock Receptacle
(NEMA L5-30R) –
May be used to supply electrical
power for the operation of 120 Volt AC, 30 Amp,
single phase 60 Hz electrical loads.
(6) 120/240 Volt AC, 30 Amp Twist-Lock Receptacle
(NEMA L14-30R) –
May be used to supply
electrical power for the operation of 120
and/or 240 Volt AC, 30 Amp, single phase 60 Hz
electrical loads.
(7) 120 Volt AC, 20 Amp Duplex (2)
(NEMA 5-20R) – May be used to supply electrical
power for the operation of 120 Volt AC, 20 Amp,
single phase 60 Hz electrical loads.
(8) Ground Terminal – Consult an electrician for local
grounding regulations.
2
CONTROLS AND FEATURES
4
7
