Champion 41552 - Power Panel; Parts Included; Wheel Kit; Other

REV 41552-20110809 6
41552 ENGLISH

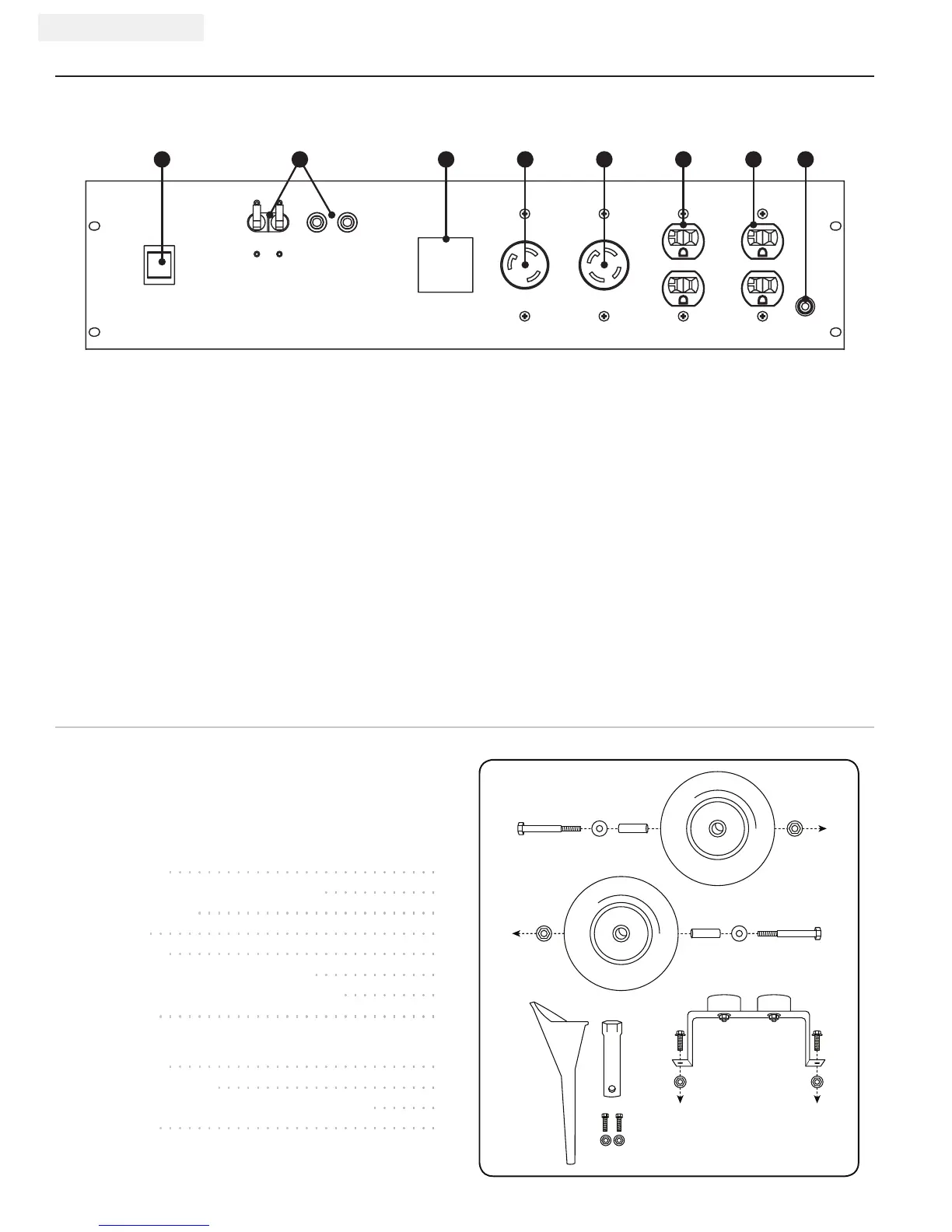

Power Panel
1 3
2
(1) Engine Switch – Press the switch to the “Start”
position to start the generator. Flip to the “Off”
position to turn off the generator.
(2) Circuit Breakers – Protects the generator against
electrical overload.
(3) Voltmeter – Displays the output voltage of the
generator.
(4) 120V / 30A Twist-Lock – protected by a 30 Amp
circuit breaker. This receptacle powers 120 Volt
AC, 60 Hz, single phase loads requiring up to 30
Amps or 3600 Watts of power.
(5) 120/240V / 30A Twist-Lock – protected by a 30
Amp circuit breaker on each 120 Volt leg of the
receptacle. This receptacle powers 240 Volt AC,
60 Hz, single phase loads requiring up to 30 Amps
or 7200 Watts of power. If an L14- 30P plug is
wired for only one 120 Volt leg (3-wire connection)
then this receptacle powers 120 Volt AC, 60 Hz,
single phase loads requiring up to 30 Amps or
3600 Watts of power.
(6) 120V / 20A Duplex (2) – Each duplex is used to
operate 120 Volt AC, single phase, 60 Hz loads
requiring up to 20 Amps 0r 2400 Watts of power.
(7) Ground Terminal – Consult an electrician for local
grounding regulations.
2
CONTROLS AND FEATURES
4 5
6A
7
Parts Included
Your 41552 Gasoline Powered Generator ships with the
following parts:
Wheel Kit
– 10” Wheel ............................ 2
– Flange Bolt (M10x120 for Wheel) ............ 2
– Flat Washer 10 ......................... 2
– Bushing .............................. 2
– Nut (M10) ............................ 2
– Support Leg w/Vibration Mounts ............. 1
– Flange Bolt (M8x16 for Support Leg) .......... 2
– Nut (M8) ............................. 2
Other
– Oil Funnel ............................ 1
– Spark Plug Socket ....................... 1
– Cap Screw (M5x12 for Battery Terminals) ....... 2
– Nut (M5) ............................. 2
6B
(Battery Bolts)
