Touch Screen & Encoders

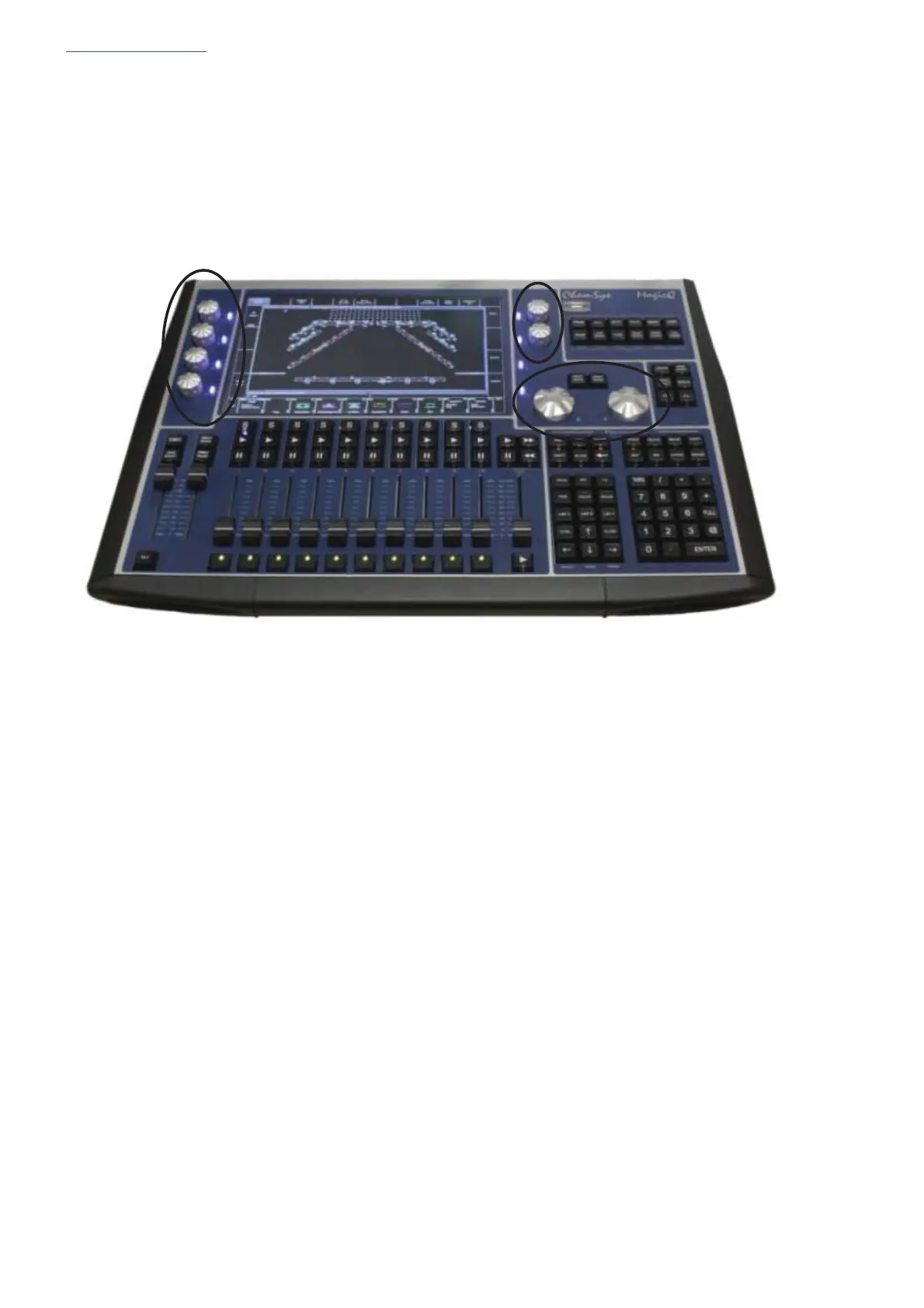

Around the central screen area there are 8 rotary encoders and soft buttons.
The buttons around the display referred to as soft buttons since their function changes according to the active
window on the touch screen. The current function of a soft button is displayed on the touch screen adjacent to the
button. To select the function you can either press the screen or the soft button itself.
The function of the rotary encoders also changes according to the active window with the current function being
displayed adjacent to the encoder.
The SHIFT and CTRL buttons on the console selects alternate functions for the soft buttons and encoders.
