Touch Screen & Encoders

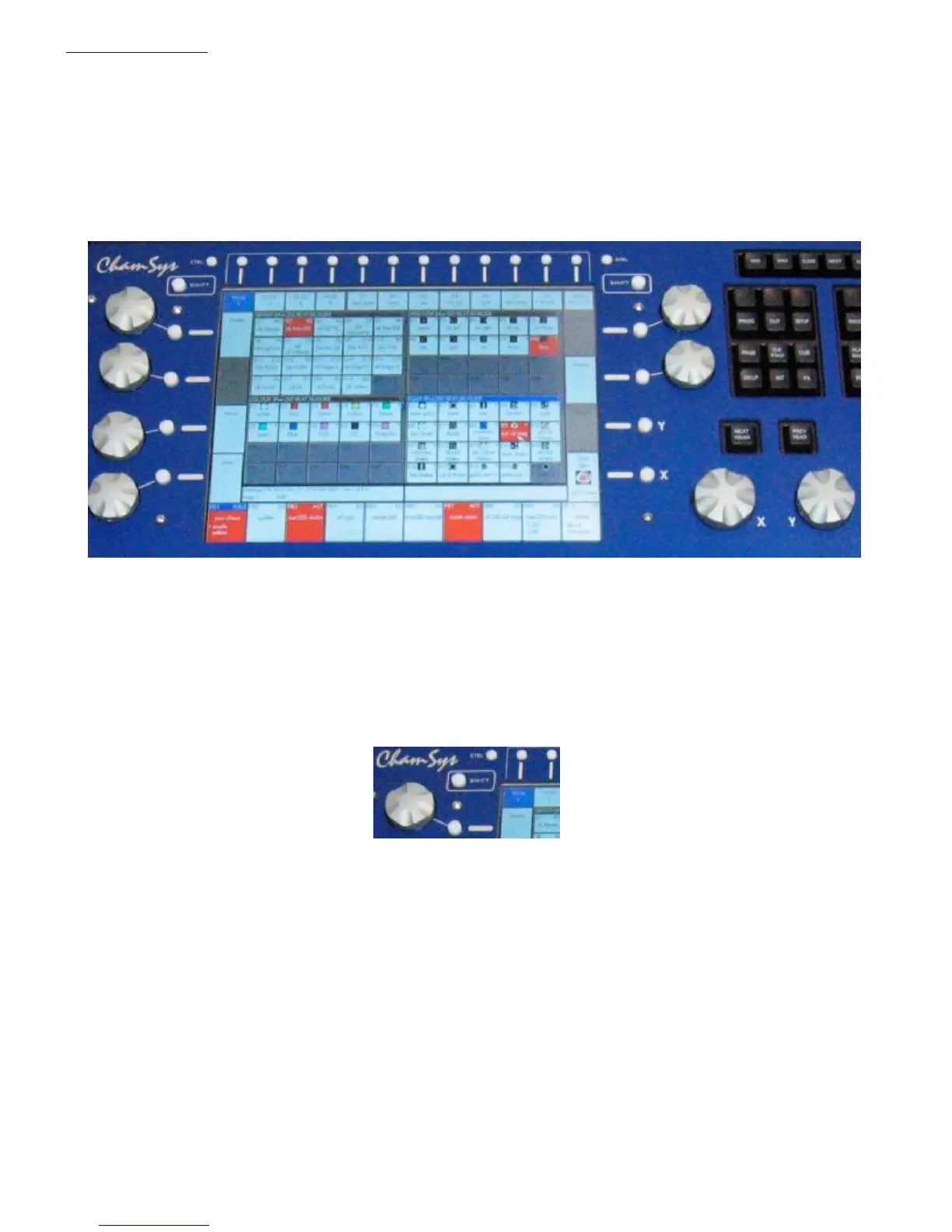

There are 24 buttons and 8 rotary encoders placed around the touch screen.
The buttons are referred to as soft buttons since their function changes according to the active window on the touch
screen. The current function of a soft button is displayed on the touch screen adjacent to the button. To select the
function you can either press the screen or the soft button itself.
The function of the rotary encoders also changes according to the active window with the current function being
displayed adjacent to the encoder.
At the top left and top right of the touch screen there are SHIFT and CTRL buttons. Pressing theses buttons selects
alternate functions for the soft buttons and encoders.
